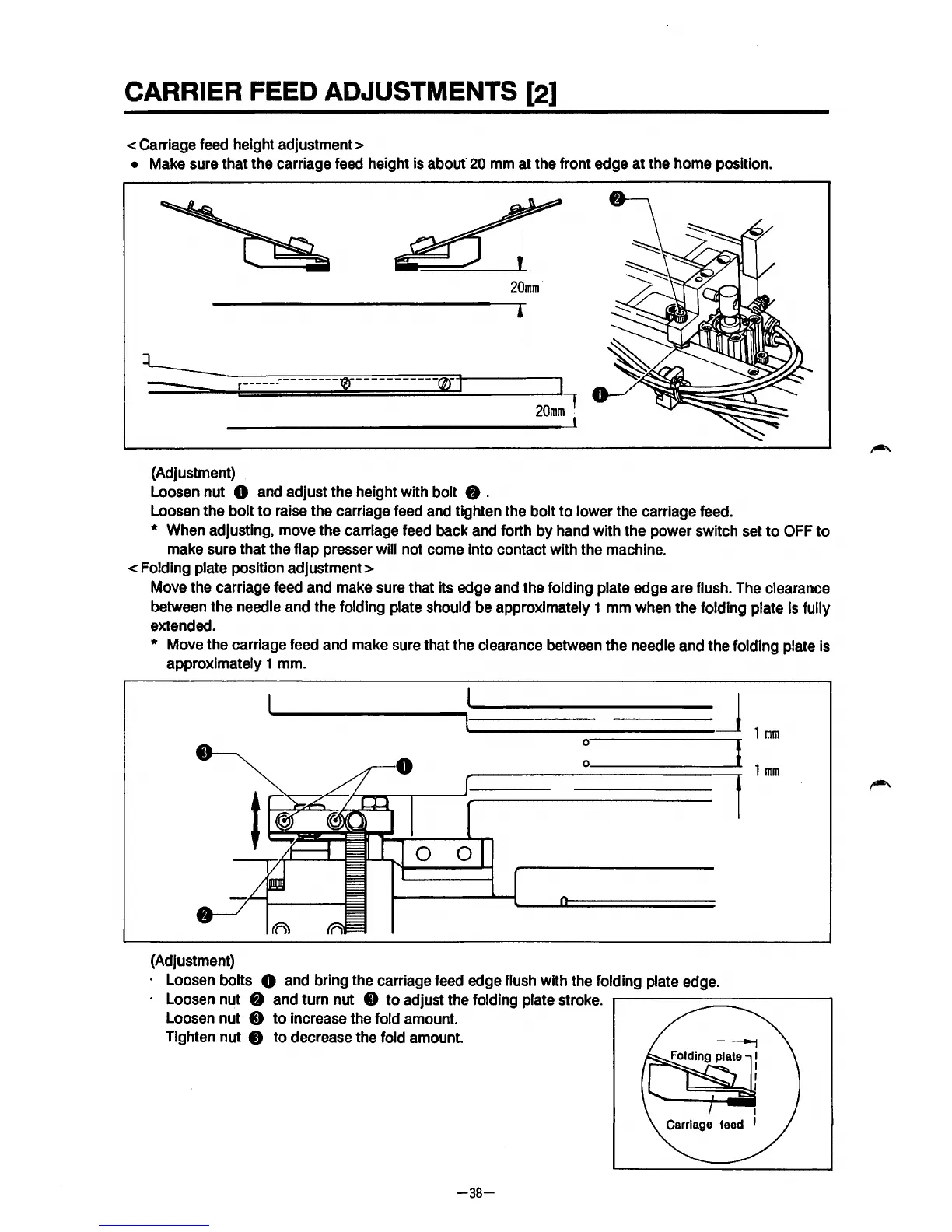

CARRIER FEED ADJUSTMENTS
[2]
<Carriage feed height adjustment>
• Make sure that the carriage feed height is about' 20 mm at the front edge at the home position.
20mm
r-----·
- 0- - -
20mmt
__________________________________
_!
(Adjustment)
Loosen nut
0 and adjust the height with bolt 8 .
Loosen the bolt
to
raise the carriage feed and tighten the bolt
to
lower the carriage feed.
* When adjusting, move the carriage feed back and forth
by
hand with the power switch set
to
OFF
to
make sure that the flap presser will not come Into contact with the machine.
<Folding
plate position adjustment>
Move the carriage feed and make sure that
Its edge and the folding plate edge are flush. The clearance
between the needle and the folding plate should be approximately 1 mm when the folding
plate
Is
fully
extended.
* Move the carriage feed and make sure that the clearance between the needle and the folding plate
Is
approximately 1 mm.
-J
1
mm
:
_______
_._;
1
mm
(Adjustment)
· Loosen bolts 0 and bring the carriage feed edge flush with the folding plate edge.
· Loosen nut 8 and turn nut 8
to
adjust the folding plate stroke.
r-------------
Loosen nut 8
to
increase the fold amount.
Tighten nut
8 to decrease the fold amount.
-38-
