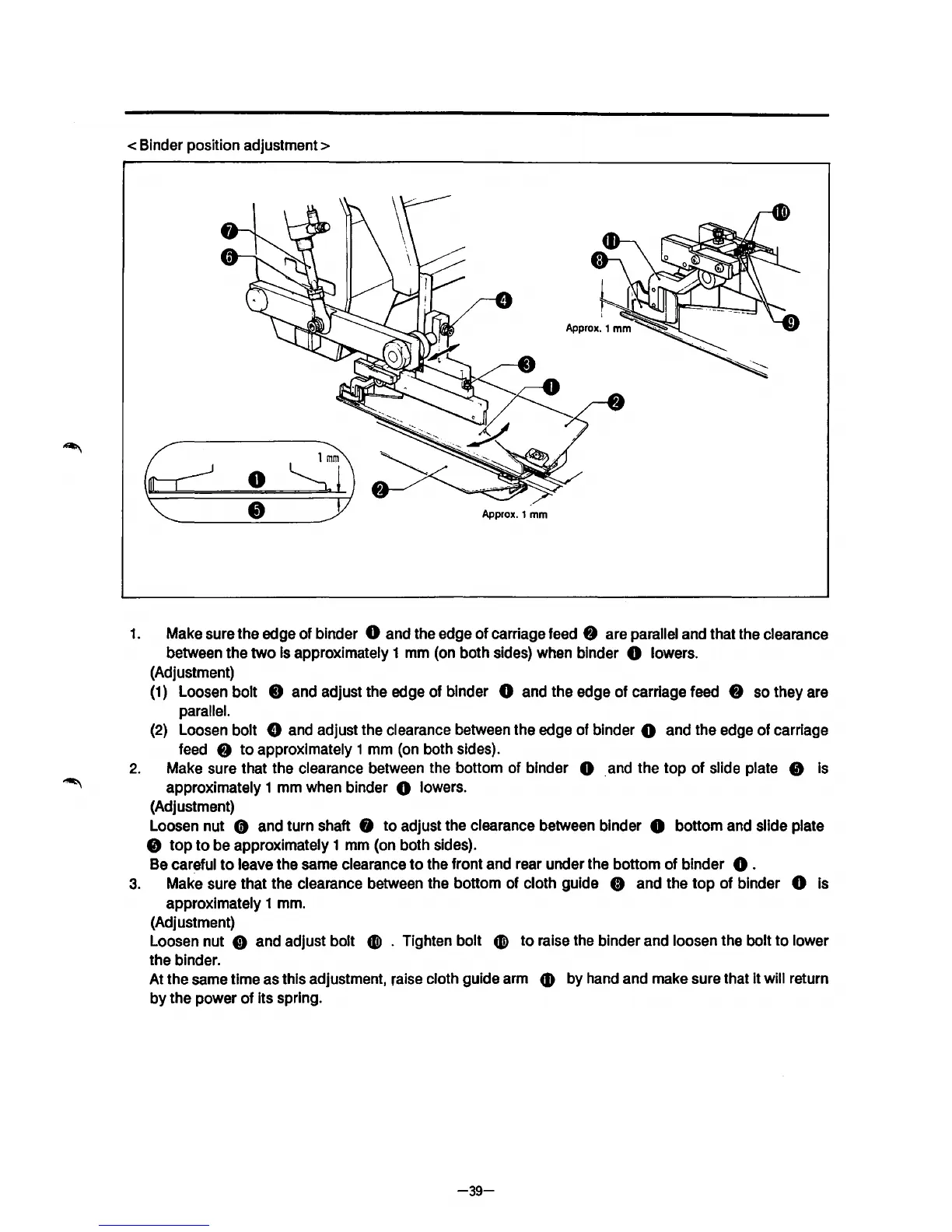

< Binder position adjustment>
Approx.1 mm
1.
Make sure the edge
of
binder 0 and the edge
of
carriage feed
f)
are parallel and that the clearance
between the
two
Is
approximately 1 mm (on both sides) when binder 0 lowers.
(Adjustment)
(1)
Loosen bolt 8 and adjust the edge of binder 0 and the edge
of
carriage feed
f)
so they are
parallel.
(2)
Loosen bolt 8 and adjust the clearance between the edge of binder 0 and the edge
of
carriage
feed
f)
to
approximately 1 mm (on both sides).
2. Make sure that the clearance between the bottom of binder 0 . and the
top
of
slide plate 8 is
approximately 1 mm when binder 0 lowers.
(Adjustment)
Loosen nut 8 and turn shaft 0
to
adjust the clearance between binder 0 bottom and slide plate
8
top
to
be approximately 1 mm (on both sides).
Be careful
to
leave the same clearance
to
the front and rear under the bottom of binder 0 .
3.
Make sure that the clearance between the bottom
of
cloth guide 0 and the
top
of
binder 0 is
approximately 1 mm.
(Adjustment)
Loosen nut
CD
and adjust bolt
CD
. Tighten bolt
CJ)
to
raise the binder and loosen the bolt
to
lower
the binder.
At the same time as this adjustment, raise cloth guide arm
CD
by hand and make sure that it will return
by
the power
of
its spring.
