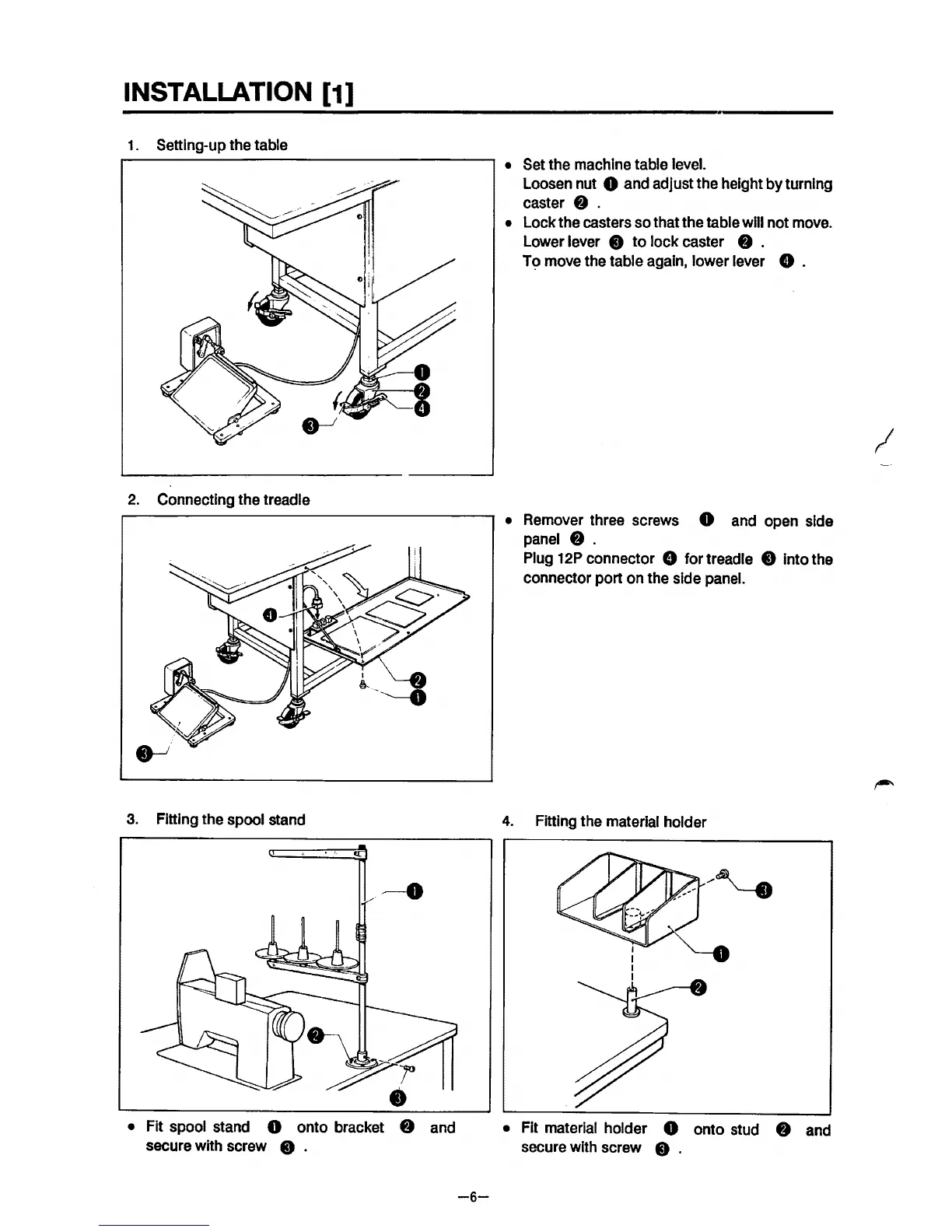

INSTALLATION [1]
1. Setting-up the table
2. Connecting the treadle
3. Fitting the spool stand
• Fit spool stand 0 onto bracket 8 and
secure with screw
0 .
-6-
• Set the machine table level.
Loosen nut
0 and adjust the height by turning
caster
8 .
• Lock the casters so that the table will not move.
Lower lever
8 to lock caster 8 .
T ~ move the table again, lower lever 8 .
• Remover three screws 0 and open side
panel
8 .
Plug 12P connector 8 for treadle 8 Into the
connector port on the side
panel.
4. Fitting the material holder
• Fit material holder 0 onto stud 8 and
secure with screw
0 .
I
