Brother P-touch 9700PC User Manual

8

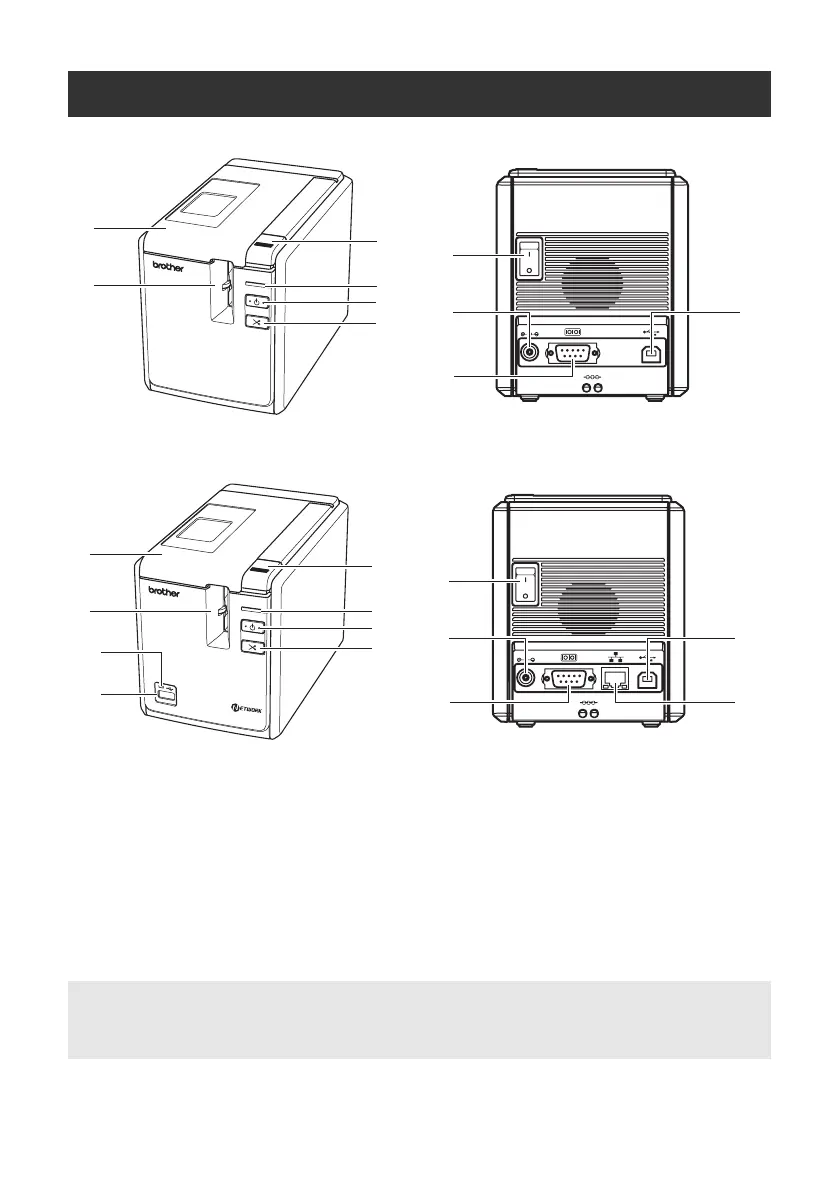

General description
■ PT-9700PC
■ PT-9800PCN
Front view Rear view
Front view Rear view
1. Tape compartment cover 9. Serial (RS-232C) port
2. Label outlet 10. USB port
3. Cover release button 11. LED lamp on USB Direct Interface
(PT-9800PCN only)
4. STATUS lamp
5. Power button (including lamp) 12. USB Direct Interface for connecting
a Bar code Reader (PT-9800PCN only)
6. Feed/Cut button
7. Main power switch 13. LAN (10/100BASE-TX Wired Ethernet) port
(PT-9800PCN only)
8. AC adapter socket
Note
● If the tape compartment cover is left open, dust will collect on the print head. Always close the
cover.
DC IN 24V
10
8
9
STATUS
1
2
3
4
5
6
7
13
DC IN 24V
10
8
9
STATUS
1
12
2
3
4
5
6
11
7

Brother P-touch 9700PC Specifications

General

Vertical printing	Yes
Maximum resolution	360 x 720 DPI
Standard interfaces	USB 2.0
Tape type	TZ
Tape cutting	Automatic
Internal memory	2 MB
Built-in barcodes	Codabar (NW-7), EAN13, EAN8, Maxicode, Postnet, QR Code, UPC-A, UPC-E
Dimensions (WxDxH)	116 x 192.7 x 140 mm
Minimum system requirements for Macintosh	- RAM 128 MB - HDD 50 MB - USB (1.1/2.0)
Minimum RAM	512 MB
Compatible operating systems	Windows 2000 Pro/XP/7/Vista, Mac OS 10.3.9 - 10.6
Maximum label width	27.1 mm
Maximum label length	8 m
Product color	Gray

Weight and Dimensions

Depth	192.7 mm
Width	116 mm
Height	140 mm
Weight	1570 g
