FUNCTIONAL OVERVIEW OF THE PREAMP

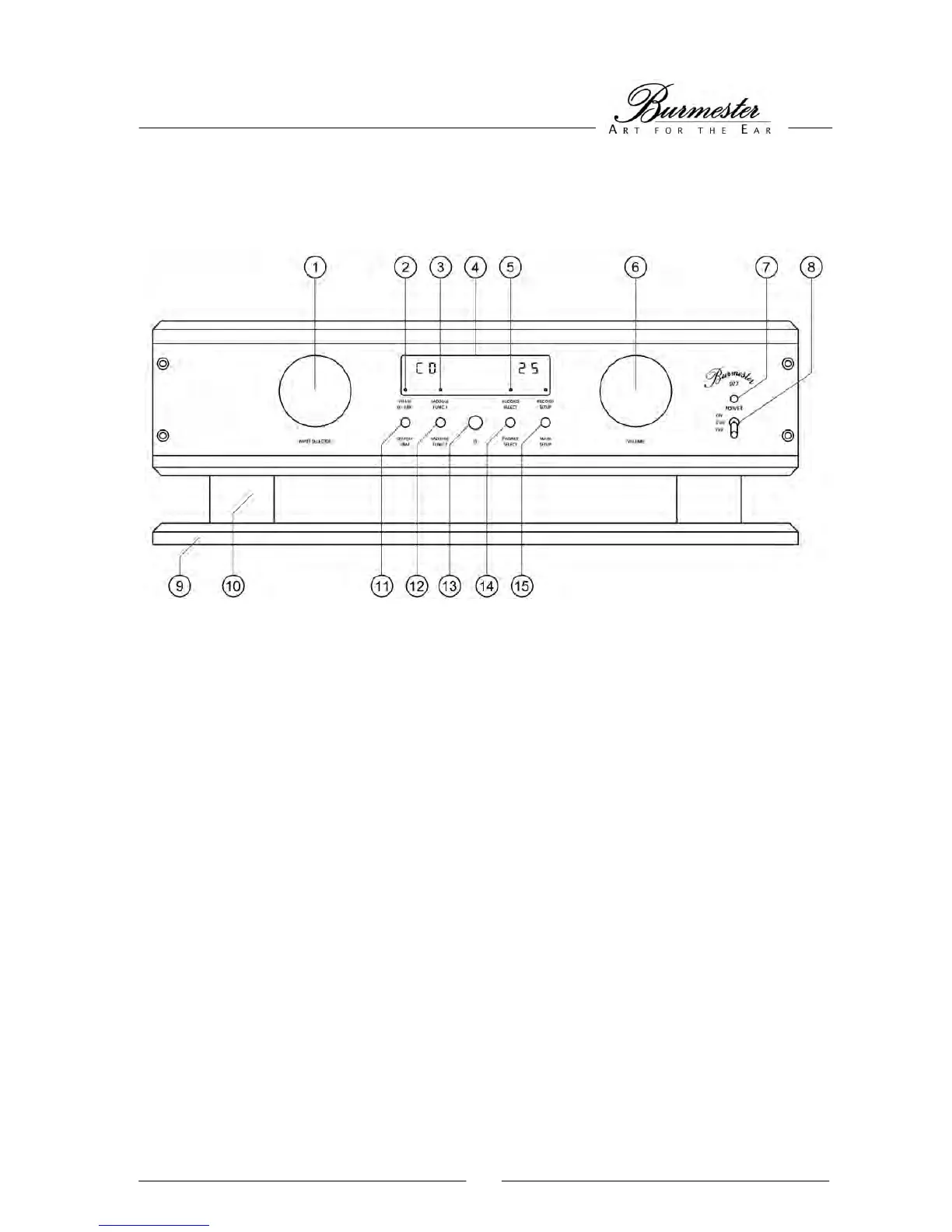

FRONT PANEL
(1) Input selector (8) POWER switch to switch the unit on & off
(2) PHASE LED lights up when phase is180˚ (9) Base plate
between active input and output (10) Foot – constructed as spike
(3) AUDIO LED shows up sampling of 192kHz, if (11) PHASE/DISPLAY switch key switches the phase
a D/A converter module is equipped and toggles display brightness
(4) Alphanumeric display shows the selected (12) MODULE FUNCTION switch key functions
input and the volume depend on installed module
(5) REC/MAIN LED lights up when REC is selected (13) IR receiver for commands of remote control
(6) Volume selector controls the playback volume (14) RECORD/PHONES switch key
(7) POWER LED lights up red when the unit is on (15) SETUP switch key to enter or leave
GLOBAL, RECORD and MAIN SETUP
