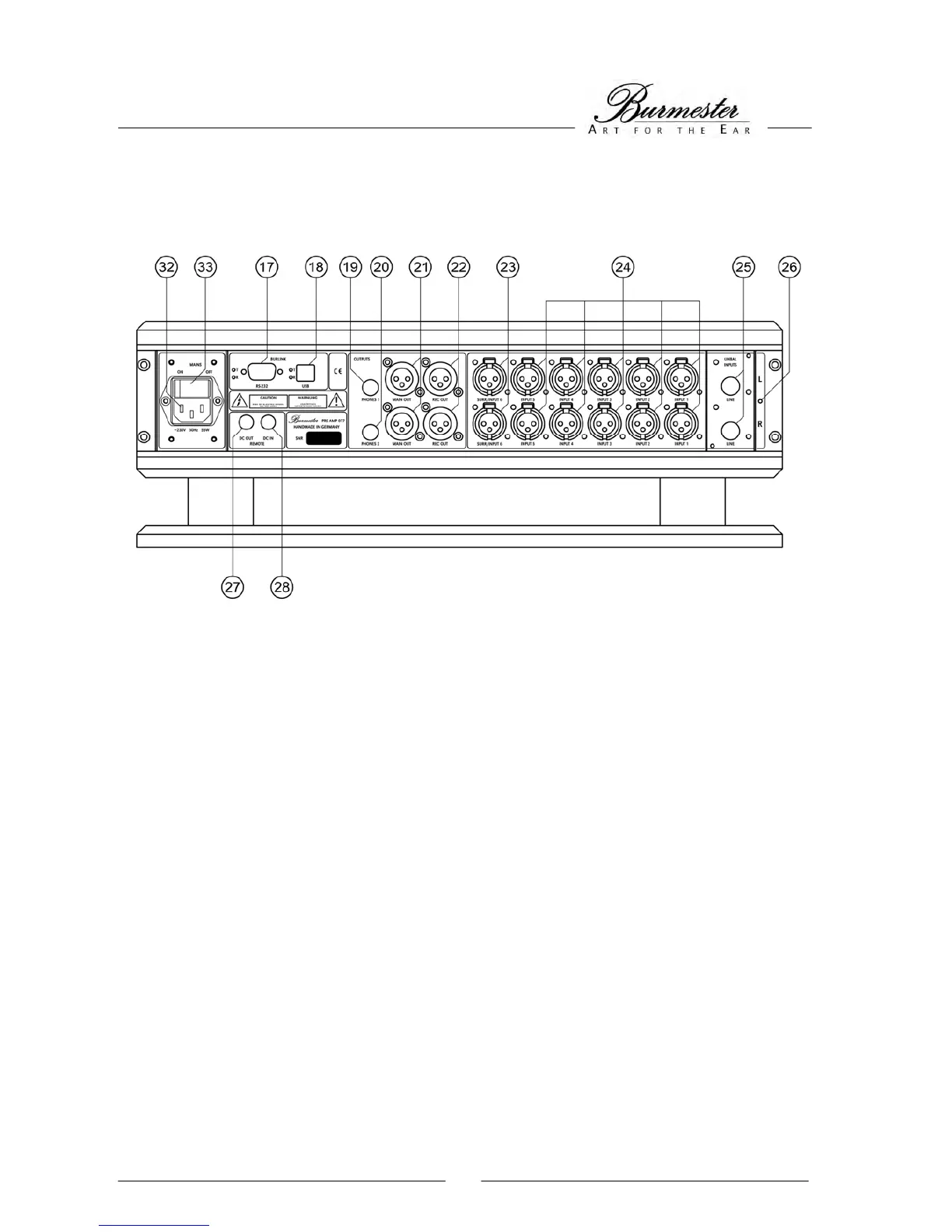

REAR PANEL WITH INTERNAL POWER SUPPLY
(17) BURLINK interface RS-232 with check LEDs (24) High level inputs INPUT 1 to INPUT 5,
(18) BURLINK interface USB with check LEDs balanced
(19) Phones jack PHONES 1 (25) Module input as ordered
(20) Phones jack PHONES 2 (26) GROUND screw for ground cable of record
(21) MAIN output balanced preamp output player, only with PHONO modules
(22) RECORD output balanced output for recording (27) REMOTE output
or second preamp output (28) REMOTE input
(23) SURROUND or high level input, INPUT 6 (32) AC Mains Terminal
balanced (33) AC Mains Switch
