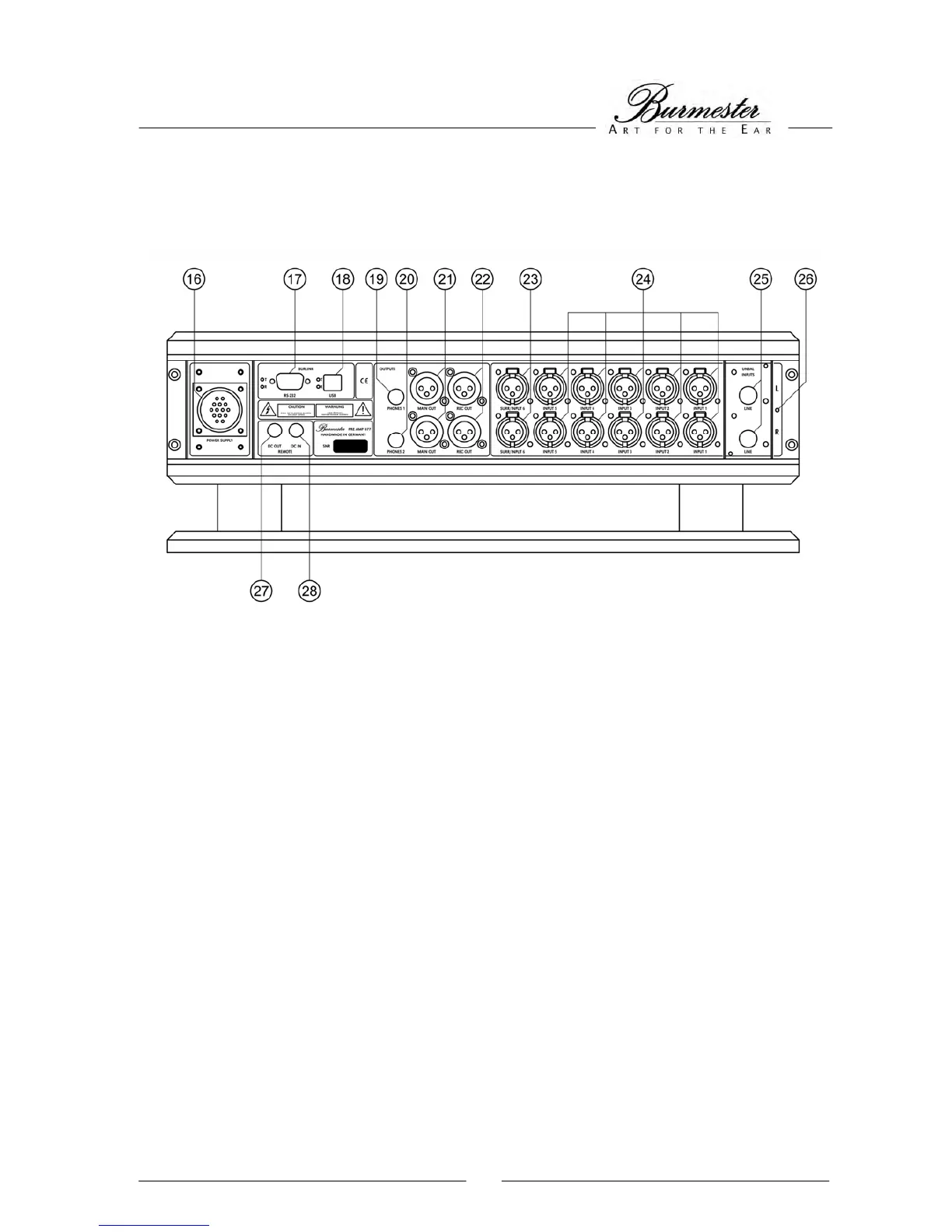

REAR PANEL WITH EXTERNAL POWER SUPPLY
(16) POWER SUPPLY terminal (23) SURROUND or high level input
(17) BURLINK interface RS-232 with check LEDs INPUT 6, balanced
(18) BURLINK interface USB with check LEDs (24) High level inputs INPUT 1 to INPUT 5,
(19) Phones jack PHONES 1 balanced
(20) Phones jack PHONES 2 (25) Module input as ordered
(21) MAIN output balanced preamp output (26) GROUND screw for ground cable of record
(22) RECORD output balanced output for recording player, only with PHONO module
or second preamp output (27) REMOTE output
(28) REMOTE input
