CAME GARD series Installation Manual

3
4
2
1
p.
16
16 - Manual Code:
11
11
9 G V18
9GV18 ver.
1.1
1.1 12/2011 © CAME Cancelli Automatici S.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH
WARNING! The
release action may result
in danger for the user,
when, for whatever rea-
son - the arm is improp-
erly fixed to the pin dur-
ing mounting, the arm is
broken or cracked during
an accident, etc..- the
tension springs no longer
provide balance! This
may result in sudden
rotating movements of
arm attachment and/or
of the arm itself.

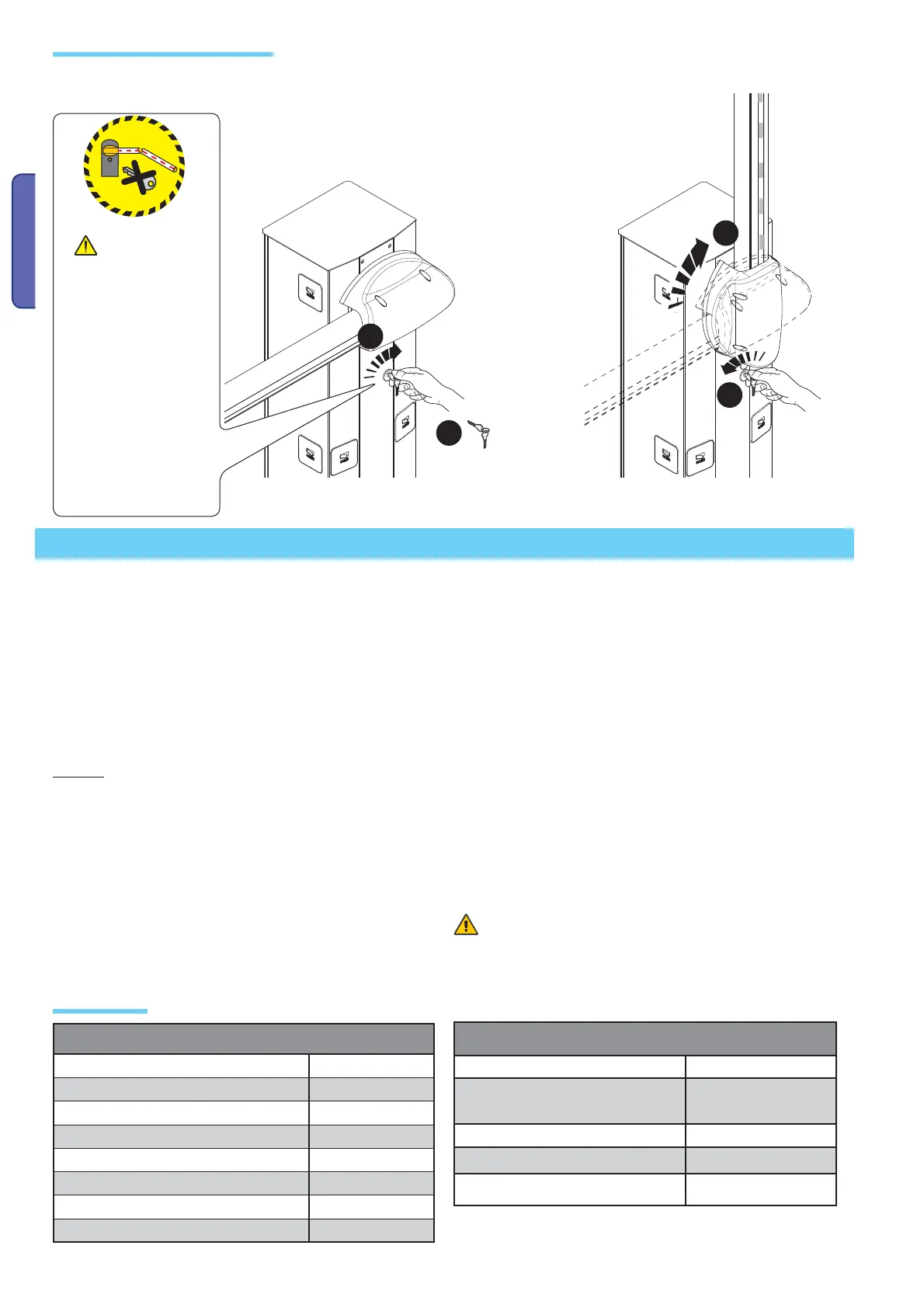

- Insert the key into the lock and turn it clockwise.Manually lift the barrier arm and re-lock it by turning the key counter-clockwise.
Description of the control panel
Manual release of the barrier arm
Technical data
Designed and made by CAME Cancelli Automatici S.p.A.The control
panel is powered by 230 V AC, at 50 / 60 Hz frequency.
the command devices and accessories are powered by 24V.Warn-
ing! The accessories must not exceed 40 W overall.
The control panel features an amperometric device whih constantly
controls the motor thrust data.
When the barrier arm runs into an obstacle, the amperometric sen-
sor detects an overload in the thrust and acts on the movement:
- when opening:by stopping the arm;
- when closing:the arm inverts its direction of travel and opens
completely;the automatic closing activates.
Warning! After three consecutive inversions, the barrier arm stays
open and excludes automatic closing:to close press the command
button or transmitter key.
All connections are protected by quick fuses, see table.
The card handles the following functions:
- automatic closing after an opening command;
- immediate closing;
- Prefl ashing by the fl ashing light;
- obstacle detectionwith barrier arm stopped in any position;
- Slave function;
- increased braking action of the barrier arm.
FUSE TABLE
to protect: fuses for:
Electronic card (line) 3.15 3.15 A-F
24 V Accessories 2 A-F
Command devices (control panel) 630 mA-F
Motor 10 10.15 A-F
TECHNICAL DATA
power source 230 V - 50/60 Hz
max power 400 W
power draw when idle 110 mA
maximum power for 24 V accessories 40 W
circuit insulation class II
container material ABS
container protection rating IP54
working temperature -20 / +55°C
Types of command:
- opening/closing;
- opening/closing with maintained action;
- opening;
- total stop.
Specifi c trimmers regulate:
- the working time for automatic closing;
- the sensibility of the amperometric device;
Optional accessories:
- fl ashing cupola and luminous cord;
- fl ashing light for open barrier arm:it turns o when barrier ar is closed;
- the 002LB38 card for emergency operation in case of power outages
and battery recharging.(see technical documentation for 002LB38
technical sheet).
Warning! Before doing any work on the control panel, cut
off the main power and/or disconnect the batteries.
