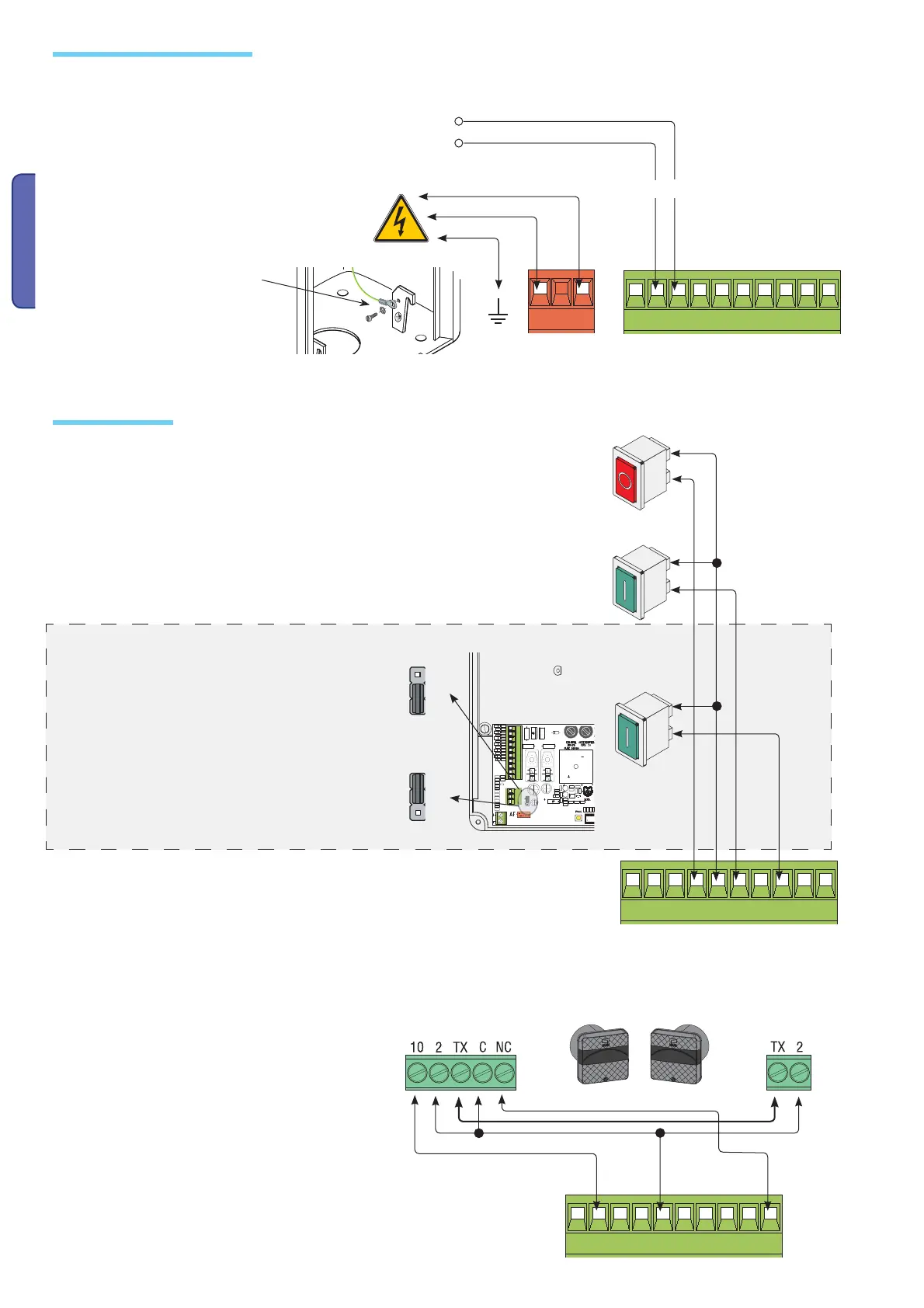

Terminals for powering accessories:
- for 24 V AC at normal operation;
- for 24 V DC with battery operation;
Overall allowed power:40 W
230 V AC power source, 50/60 MHz frequency
Eyelet with screw and washer for
ground connection of
Button for barrier opening and closing commands (N.O.
contact)(The barrier opens or inverts its movement de-
pending on what is selected on Dip switch 2.)
Check position of Jumper (14, on page 17) to be set as
shown in fi gure.
Closing button (N.O. contact)this is obligatory with Main-
tained Action function.
Position the jumper as shown in the fi gure.
Immediate closing (N.C.) Contact
Immediately closes the barrier after vehicle has passed
within the oeprating range of the safety devices.
if unused, set Dip switch 8 to ON.
Stop button (N.C. contact)Excludes automatic closing, to resume movement press the com-
mand button or tramistter key.
if unused, set Dip switch 9 to ON.
Opening button (N.O.contact )
Power source and accessories
Command devices
DELTA S Photocells
