20 - Manual Code:
11
9GV18 ver.
1.1 12/2011 © CAME Cancelli Automatici S.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH

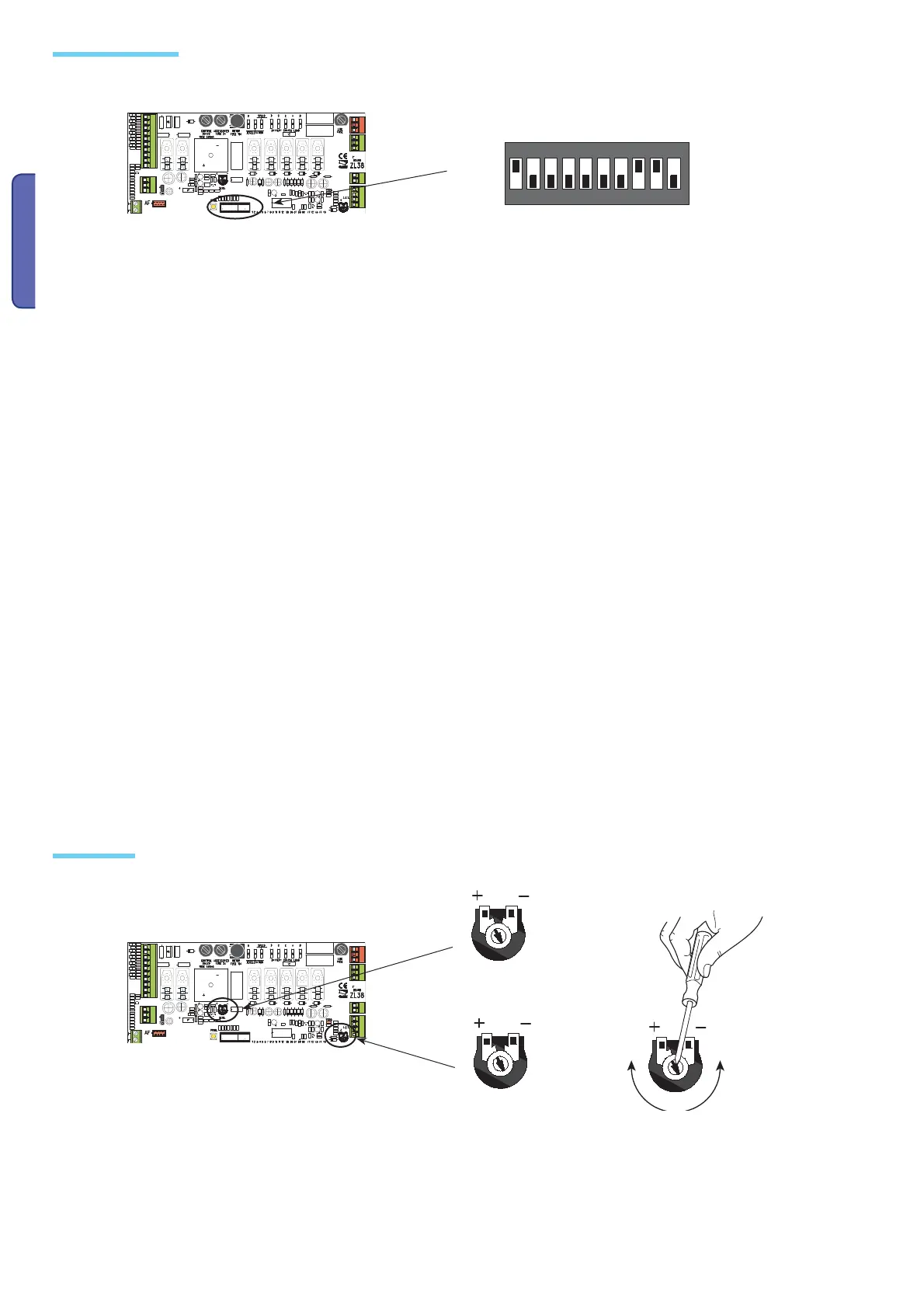

1 ON - Automatic closing- The automatic closing timer activates upon upon full opening.The preset time is adjustabel, but it's in any case
subject to any safety device intervention and does not activated after a Total Stop or in case of power failure (1 OFF - deactivated);
2 OFF - Open-Close with button (2-7) and/or transmitter (requires radiofrequency card).
2 ON - Open only with button (2-7) and/or radio tramitter (requires radiofrequency card).
3 ON - 24 V exit on contact (10-E):barrier-arm in movement and in closed position;
3 OFF - 24 V exit on contact (10-E): barrier-arm in movement
4 ON - Maintained action - the barrier works by pressing the button, one opening button 2-3, and one 2-7 closing button (postion jumper
14 as shown in the fi gure on page 16).
5 ON - Pre-fl ashing when opening and closingfollowing an open or close command, the fl ashing light and/or luminous cord which is/
are connected on [10-E], fl ashes or fl ash for 5 seconds before performing manouvre.
6 ON - Obstacle detection - With motor stopped (barrier arm closed, open or after a total stop command), prevents any manouvre if
the safety davices (i.e. photocells) detect an obstacle..
7 ON - Slave function - To be activated when having two combined barriers(see Connecting two combined barriers paragraph;
8 OFF - Immediate closingAutomatic closing of the barrier arm after vehicle has passed within the detection range of the safety devices.
Insert the saferty device on [2-C5];if unused, set DIP switch to ON.
9 OFF - Total stop - Barrier arm stop and exlusion of automatic closing;to resume movement pres command button or trasmitter key.
Connect button on [1-2];if unused, set DIP switch to ON.
10 ON - Braking action - Increase braking action of the closing barrier arm(10 OFF - deactivated)
LIST OF ADJUSTMENT TRIMMERS:
- «A.C.T.» Adjusts opening waiting time.Once time is elapsedm, the barrier closes automaticall. The waiting time may be adjusted
between 1 and 120 seconds.
- «SENS Adustes the amperometric sensitivity which controls the force developed by the motor during movement;if the force
exceeds the adjusted level, the system intervenes and inverts the direction of travel.
Default setting
Selecting functions
Adjustments
