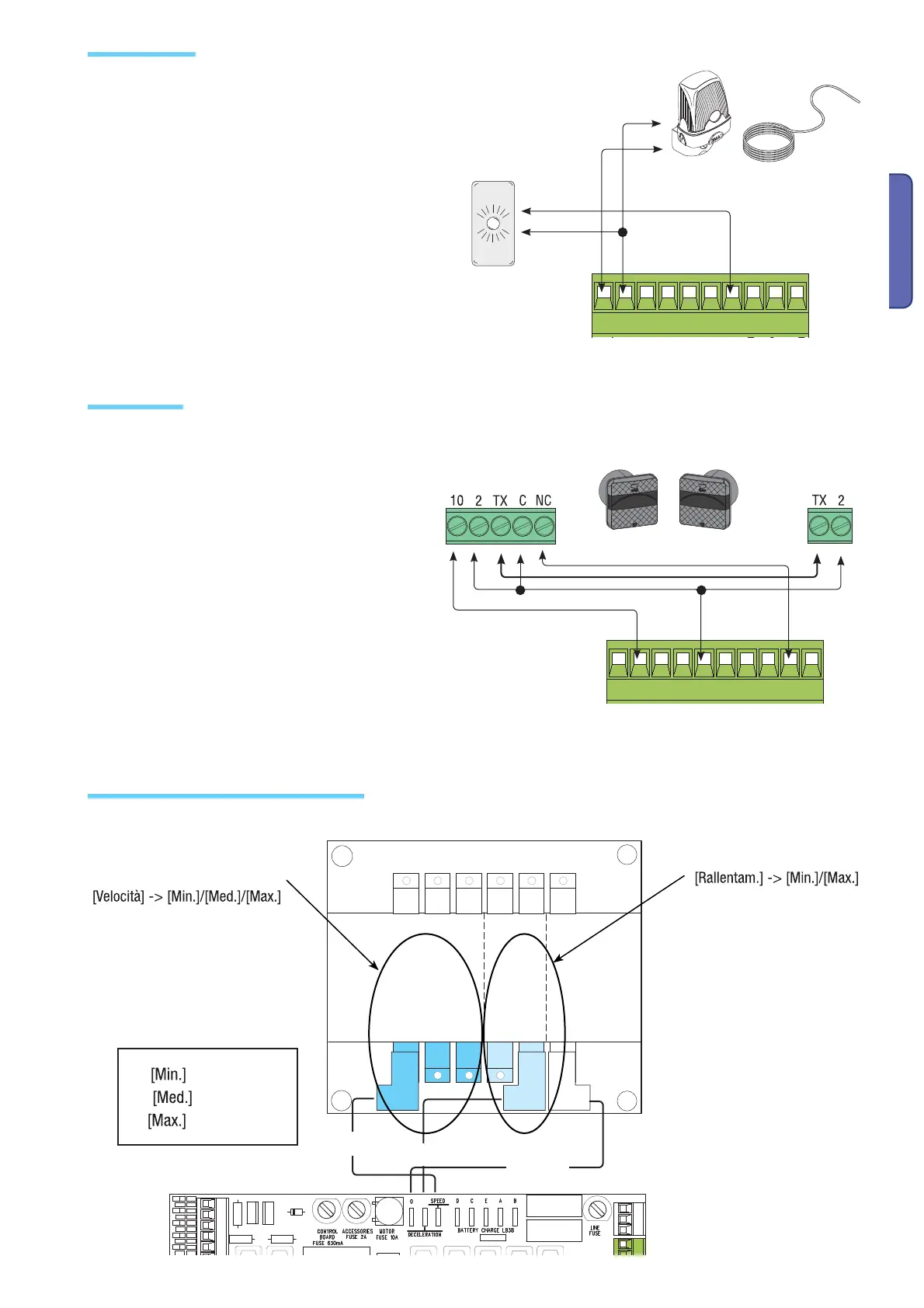

Reopening when closing (N.C.) Contact
Input for safety devices like photocells, compliant with law
EN 12978.When the barrier is closing, opening the contact
causes it to invert its movement.
if unused, short-circuit contact 2-C1.
DELTA S photocells
Warning light when barrier arm is open(contact voltage
rating: 24V -3W max.))
Warns that the barrier arm is open.
Flashing light and luminous cord (contact voltage rating: 24V -23 W max. - Both fl ash on
and o during barrier opening and closing.
Warning devices
Safety devices
Adjusting manouvring and braking speeds
To adjust opening and closing
speeds, move the transfomer
faston labelled "A" to
.
to adjust braking actions ,
move the "B" faston " to
.
Black
White
Red
= minimum
= medium
= maximum
