Canon imageCLASS MF3010 - Interior

Interior
85RS-00F

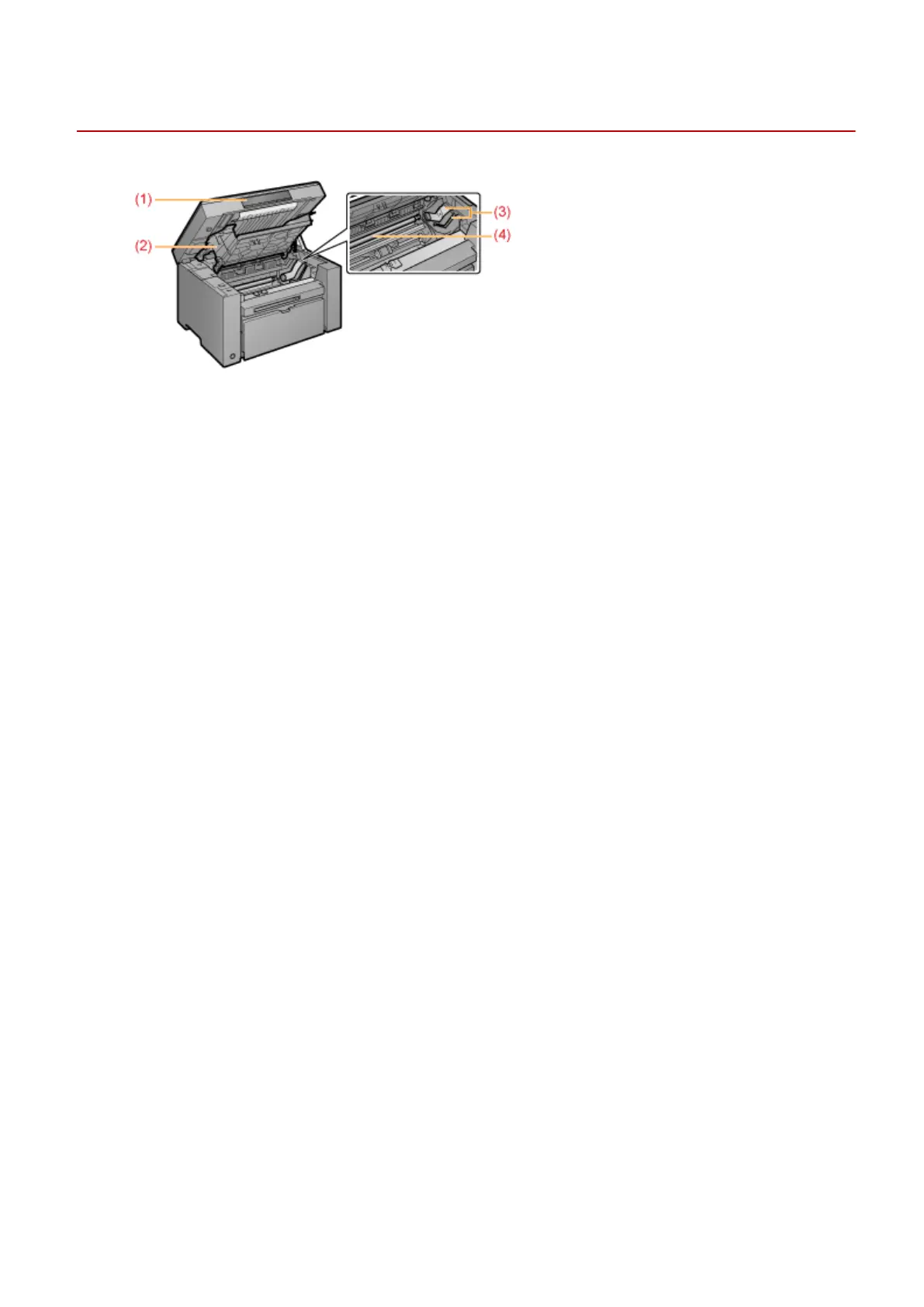

(1) Scanning Platform
Open this co
ver to replace the toner cartridge or clear paper jams.
(2) Toner Cover
Open this cover to replace the toner cartridge or clear paper jams.
( 3) Toner Guides
Used to insert the toner cartridge so that the protrusion on the side of the toner cartridge ts into these
guides.
(4) Transfer Roller
Used to transfer toner onto paper.
