Canon imagePROGRAF iPF765 User Manual

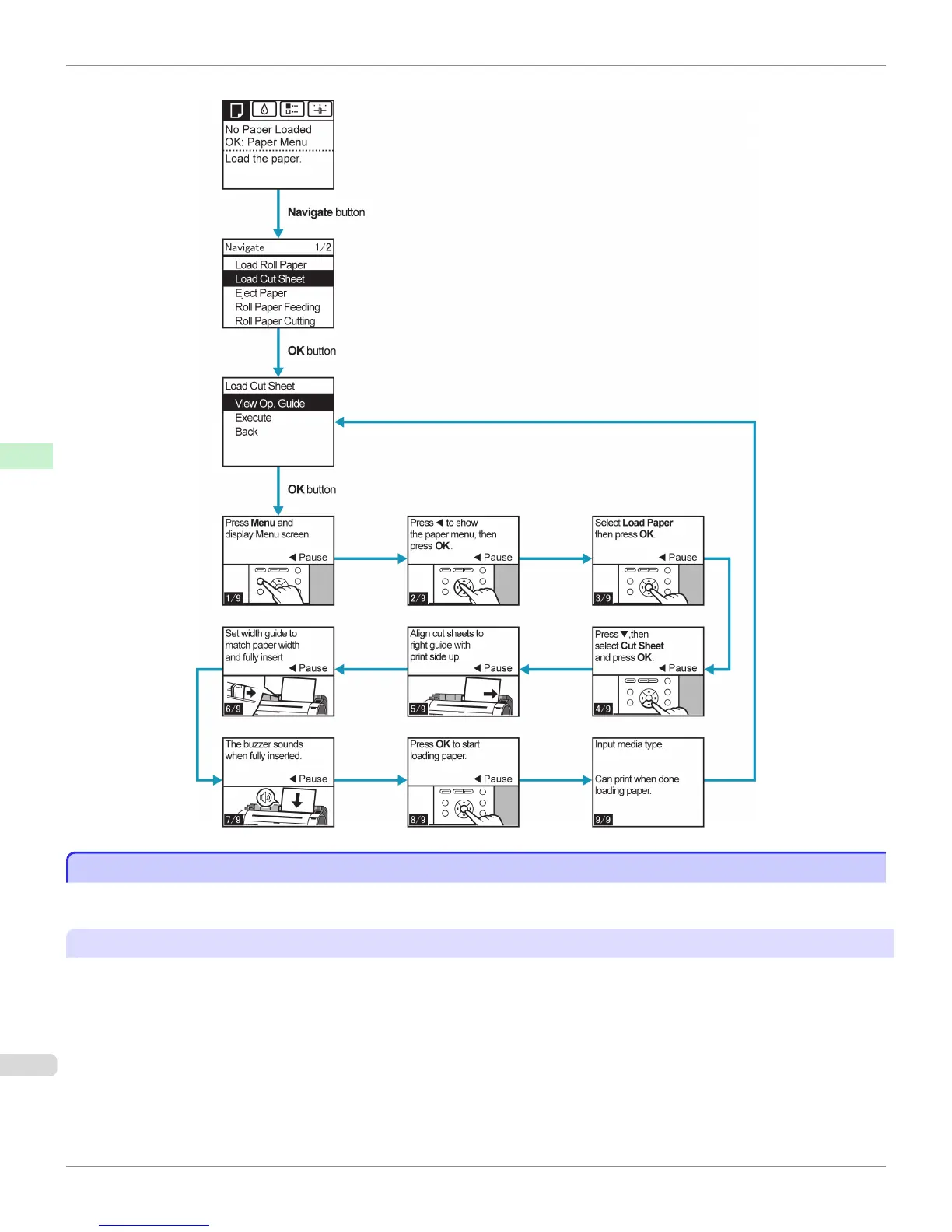

Example: Loading sheets
Checking Instructions During Printer Operations
Checking Instructions During Printer Operations
You can refer to instructions on the printer control panel when loading paper, replacing ink tanks, or performing other
operations.
How to view instructions
Once you complete an action described in the instructions, the printer detects the action and switches to the next in-
struction screen.
In the case of actions the printer cannot detect, instruction screens are switched every four seconds, and the sequence
of operations is shown repeatedly.
Checking Instructions During Printer Operations
iPF765
User's Guide
Control Panel Operations and Display Screen
484

Canon imagePROGRAF iPF765 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 917 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
Certification	CE, RoHS, ECO, WEEE
Storage media	HDD
Internal storage capacity	250 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	50 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
Power requirements	100 - 240V, 50/60Hz
Power consumption (standby)	5 W
Power consumption (typical)	140 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Compatible operating systems	Windows XP/Server 2003/Server 2008/Vista/7\\r Mac OS 10.5 - 10.7.x

Weight and Dimensions

Dimensions (WxDxH)	1304 x 1100 x 1062 mm
