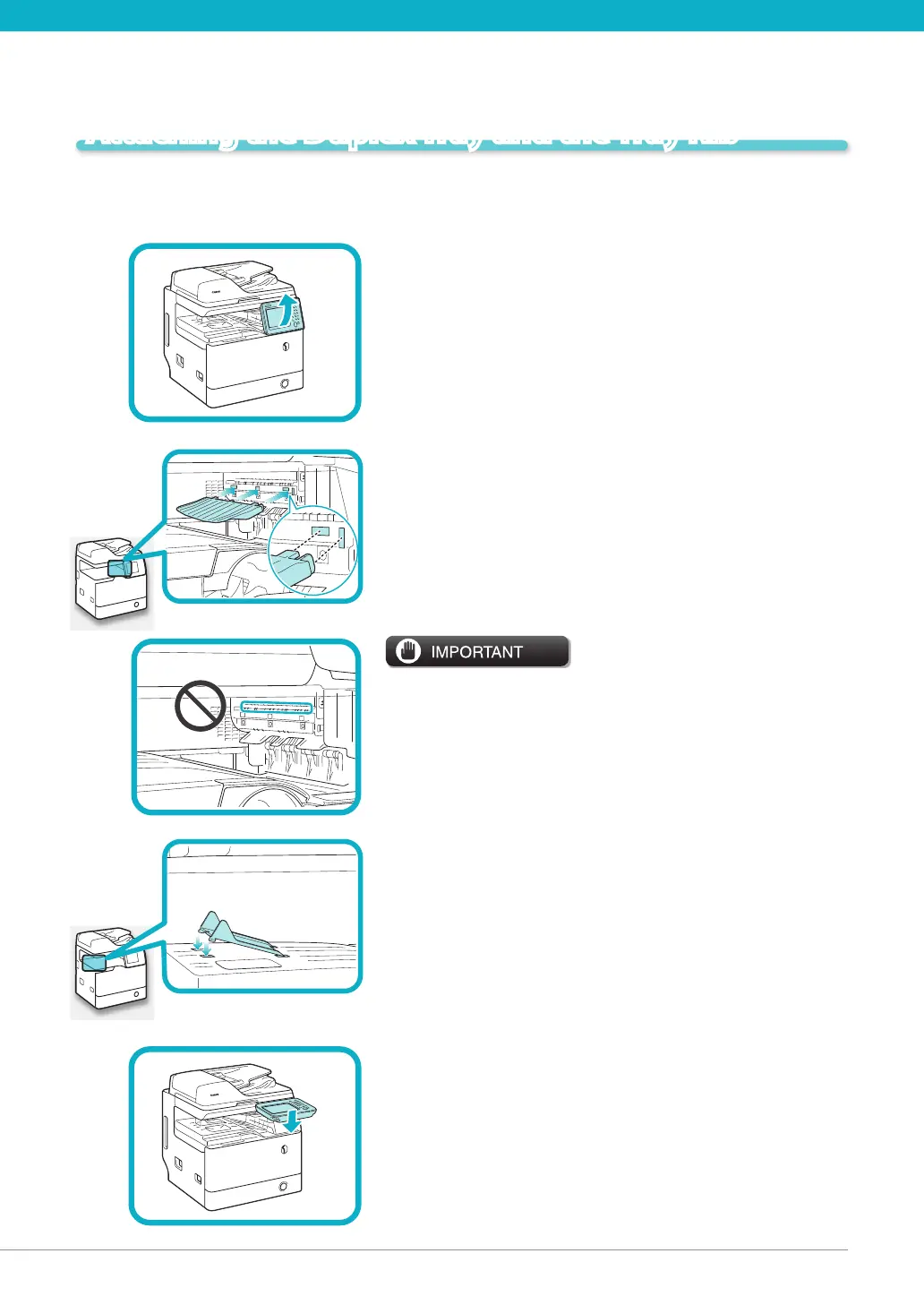

Attaching the Duplex Tray and the Tray Rib
If you are attaching the optional Staple Finisher-R1 to the machine, the following steps are not
necessary. Go to the next section, "Installing the Drum Unit."
01
Lift the control panel.
02
Attach the duplex tray by inserting its tabs into the slots
on the machine.
Be careful not to accidentally insert the tabs into the slot circled
in the illustration.
03
Insert the front tabs of the tray rib into the slots rst and
then press down on its left end so that the rear tabs
snap into the slots.
04
Lower the control panel back in place.
