Internal View

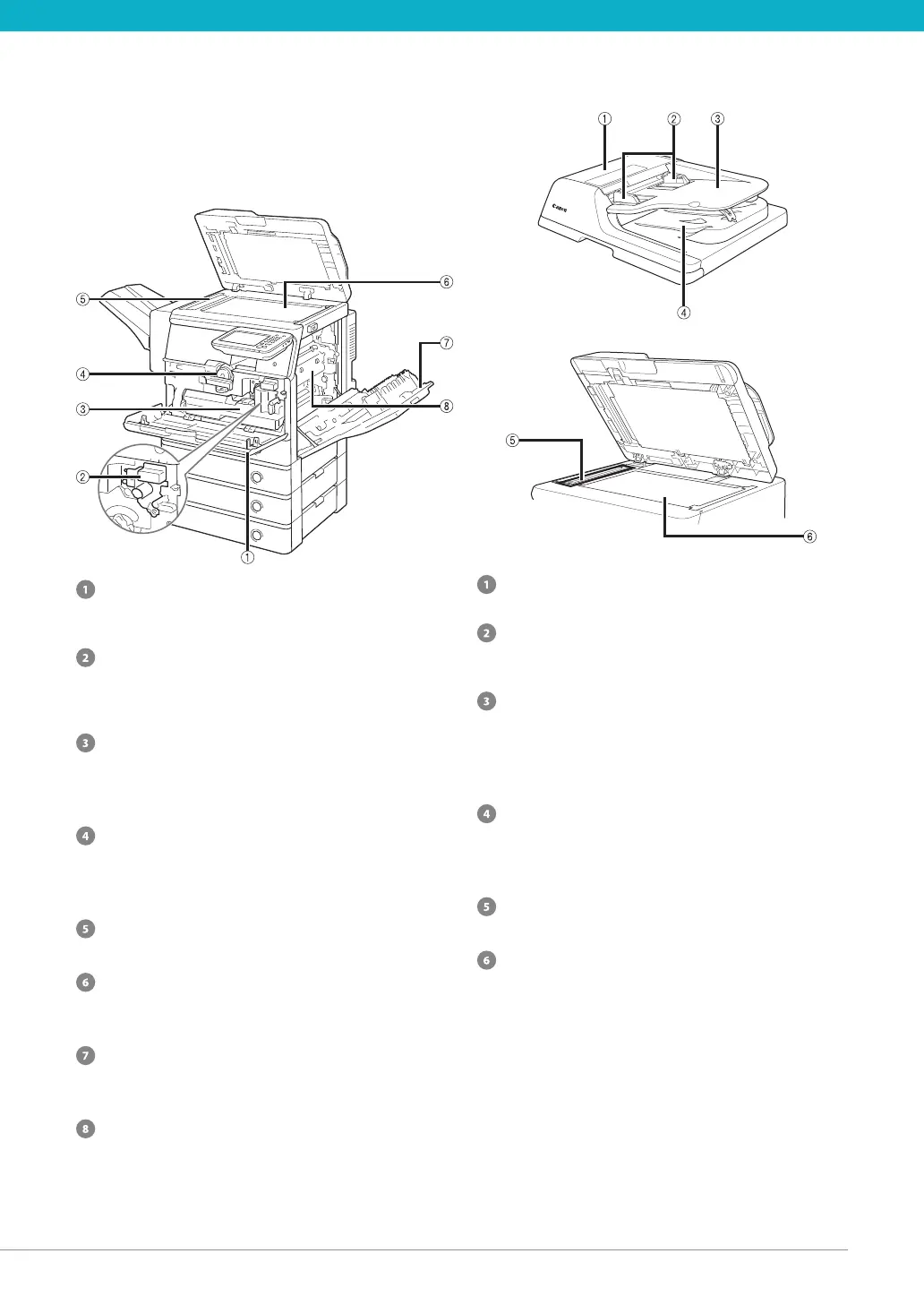

This section contains an external view of the
imageRUNNER ADVANCE 500iF.
When the Cassette Module-AA1 and
Staple Finisher-R1 Are Attached:
Front Cover of the Main Unit
Open this cover to replace the toner cartridge, the
waste toner container, and the drum unit.
Drum Unit
The unit that applies toner to paper during
printing. For more information on handling the
drum unit, see the “Drum Unit Replacing Guide.”
Waste Toner Container
When the waste toner container becomes full,
replace it with a new one. (See “Replacing the
Waste Toner Container,” on p.45.)
Toner Cartridge
When toner runs out, pull out the toner cartridge
and replace it with a new one. (See “Consumables.”
on p.71.)
Scanning Area
Originals placed in the feeder are scanned here.
Platen Glass
Place originals here when scanning books,
heavyweight originals, transparencies, etc.
Right Cover of the Main Unit
Open this cover when clearing a paper jam inside
the main unit.
Fixing Unit
If paper is jammed in the xing unit, remove the
jammed paper carefully.
Feeder
Feeder Cover
Open this cover to remove jammed paper.
Slide Guides
Adjust these guides to match the width of the
original.
Original Supply Tray
Originals placed here are automatically fed sheet
by sheet into the feeder. Place originals into this
tray with the surface that you want to scan face
up.
Original Output Area
Originals that have been scanned from the
original supply tray are output into the original
output area.
Document Feed Scanning Area
Scans documents sent from the feeder.
Platen Glass
Use the platen glass when scanning books, thick
originals, thin originals, transparencies, etc.
