14

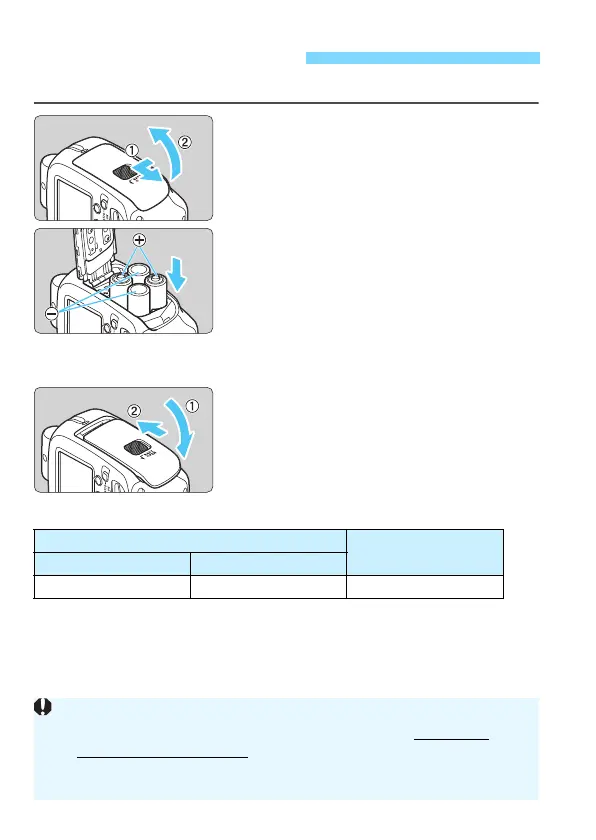

Use four AA/R6 batteries.
1
Open the cover.
 Slide the lock-release lever to the left
as shown in the illustration, slide the
cover down, then open the battery
compartment cover.
2
Install the batteries.
 Make sure the “+” and “-” battery
contacts are correctly oriented as
shown in the battery compartment.
 The grooves on the side surfaces of
the battery compartment indicate “-”.
This is convenient when replacing the
batteries in a dark place.
3
Close the cover.
 Close the battery compartment cover
and slide it up.
 When it clicks in place, the battery
compartment cover is locked.
 Based on new AA/LR6 alkaline batteries, both sides firing, and Canon’s testing
standards.
 The Quick flash function enables flash shooting before the flash is fully charged
(p.18).
Installing the Batteries
Firing Interval and Number of Flashes
Firing Interval
Number of Flashes
Quick Flash Normal Flash
Approx. 0.1 to 3.3 sec. Approx. 0.1 to 5.5 sec. Approx. 100 to 700
 Note that certain AA/R6 lithium batteries may become extremely hot
in rare cases during usage. Due to safety reasons, do not use
“AA/R6 lithium batteries”.
 Using AA/R6 batteries other than the alkaline type may cause improper
battery contact due to the irregular shape of the battery contacts.

Canon MR-14EX II Specifications

General

Type	Macro Ring Lite
Guide Number	14 (ISO 100, meters)
Power Source	4 x AA batteries
Color Temperature	Approx. 5500 K
Compatibility	Canon EOS cameras
Flash Modes	Manual
Recycling Time	Approx. 0.1 - 5.5 seconds
Weight	Approx. 455 g (without batteries)
