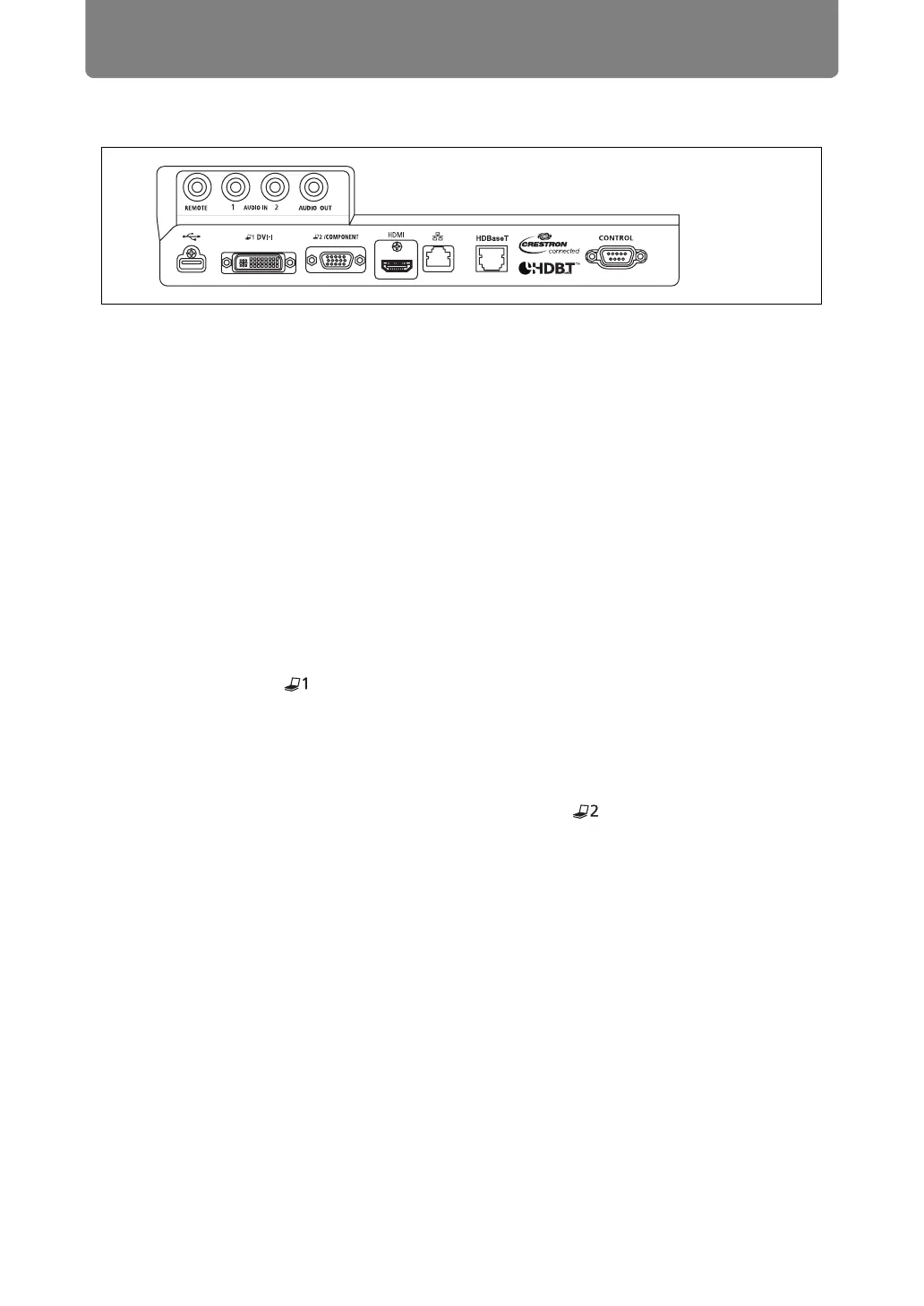

Input Terminal
(1) Terminal for wired remote control (REMOTE) (P37)
This terminal is used to connect the optional remote control (RS-RC05) using a
cable.
(2) AUDIO IN terminal (AUDIO IN) (P49, P50, P51)
Terminals for audio input. Audio supplied to these terminals is played through
the internal speaker when you select [Audio in] as the source audio terminal
for the selected source video. (P110)
(3) AUDIO OUT terminal (AUDIO OUT) (P49, P50, P51)
Outputs the audio to external AV equipment. This outputs the audio signal that
corresponds to the projected image signal.
(4) USB port (P149)
Connects a USB flash drive. Used for projection of images on a USB flash
drive, or for firmware updates.
(5) DVI-I terminal ( DVI-I) (P49)
Connects the external monitor output from a computer.
Receives digital PC signal (Digital PC).
A VGA-DVI-I cable can also be used to receive analog computer signals
(Analog PC-1).
(6) ANALOG PC-2 / COMPONENT input terminal ( / COMPONENT)
(P50, P51)
Receives the analog PC signal (Analog PC-2).
A component cable can be used to receive the component image signal
(Component).
(7) HDMI terminal (HDMI) (P50, P51)
Receives digital video signals (HDMI).
Carries both video and audio signals across a single cable.
(8) LAN port (P120)
Connects the LAN cable (shielded twisted pair).
Used to connect the projector to a network.
(9) HDBaseT terminal (P50, P51, P120)
Receives HDBaseT input including digital video and audio signals.
A single LAN cable (shielded twisted pair) can be used for both video and
audio input.
This port can also be used to connect the projector to a network.
