1.2 — Nameplate Significance
Explanation of the above items, starting clockwise from
upper right:
MODEL NUMBER - Used when selecting and ordering a
new compressor. Distributors use the model number to
obtain a proper service replacement.
NOTE: Model numbers on some compressors are identified
by the symbol “M/N” located in the upper right hand corner
of the nameplate.
UL AND CSA - Single mark indicates that this compressor
meets all the requirements for both UL (Underwriters Labo-
ratory) and CSA (Canadian Standards Association). All
60 Hz semi-hermetic Carlyle Compressors are UL and CSA
recognized and comply with UL, CSA, and NEC (National
Electrical Code) requirements for internal motor protection.
MOTOR NUMBER - For Carlyle internal use only.
TEST PRESSURES - Each Carlyle 06D,E,CC compressor
is pressure tested at our factory. The “LS” pressures are for
the low side of the compressor. The “HS” pressures are for
the high side of the compressors.
SPECIAL ORDER NUMBER (WHEN APPLICABLE) -
For Carlyle internal use only.

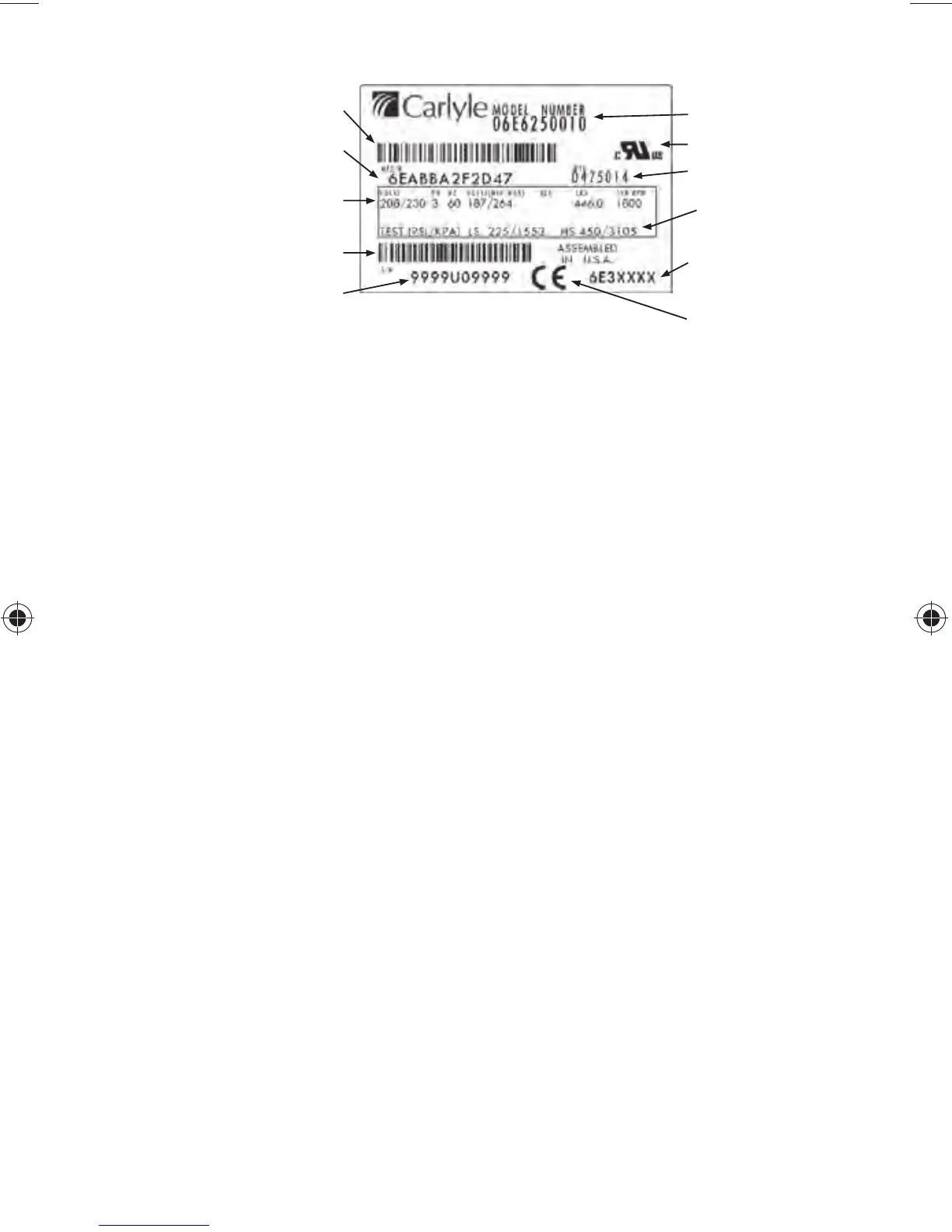

MODEL NUMBER
UL AND CSA
MOTOR NUMBER
SPECIAL ORDER
NUMBER
(WHEN APPLICABLE)
CE MARK
MANUFACTURING NUMBER
BAR CODE
MANUFACTURING NUMBER
ELECTRICAL
CHARACTERISTICS
SERIAL NUMBER
BAR CODE
SERIAL NUMBER
TEST PRESSURES
