3.16 — Capacity Control Coil Packages (06D, E)
COIL PACKAGE PART NUMBER VOLTAGE
EF19ZZ001 24-1-50/60
EF19ZZ002 120-1-50/60
EF19ZZ003 208/240-1-50/60
LOADED OPERATION
UNLOADED OPERATION

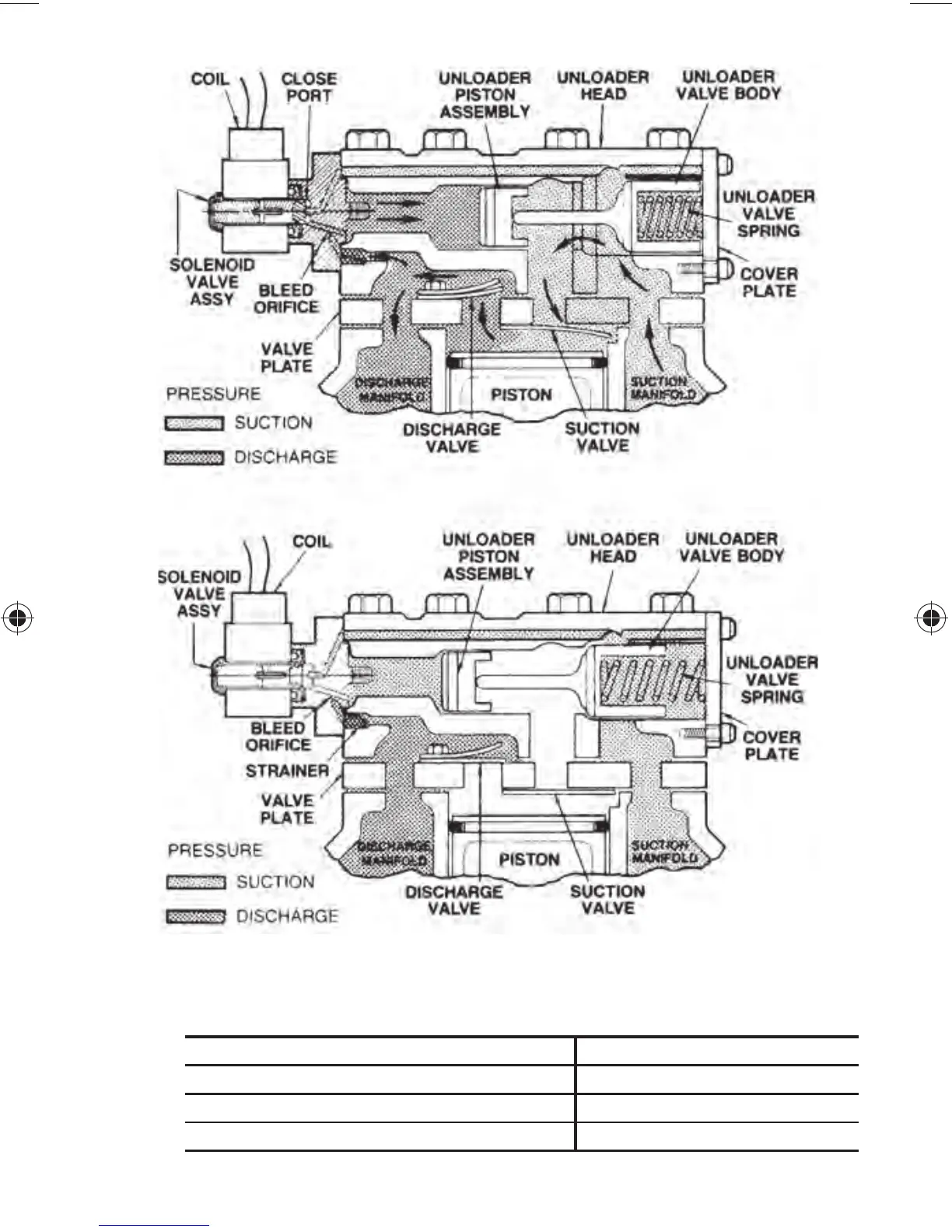

Fig. 22 — Loaded and Unloaded Operation
