NOTES:
1. Unit must have clearances for airflow (from solid sur-
faces) as follows:
Top — Do not restrict in any way
Ends—5ft[1524 mm]
Sides—6ft[1829 mm]
2. Mounting holes may be used to mount unit to con-
crete pad. They are not recommended for spring iso-
lator location.
3. If spring isolators are used, a perimeter support
channel between the unit and the isolators is
recommended.
4. Dimensions in [ ] are in millimeters.

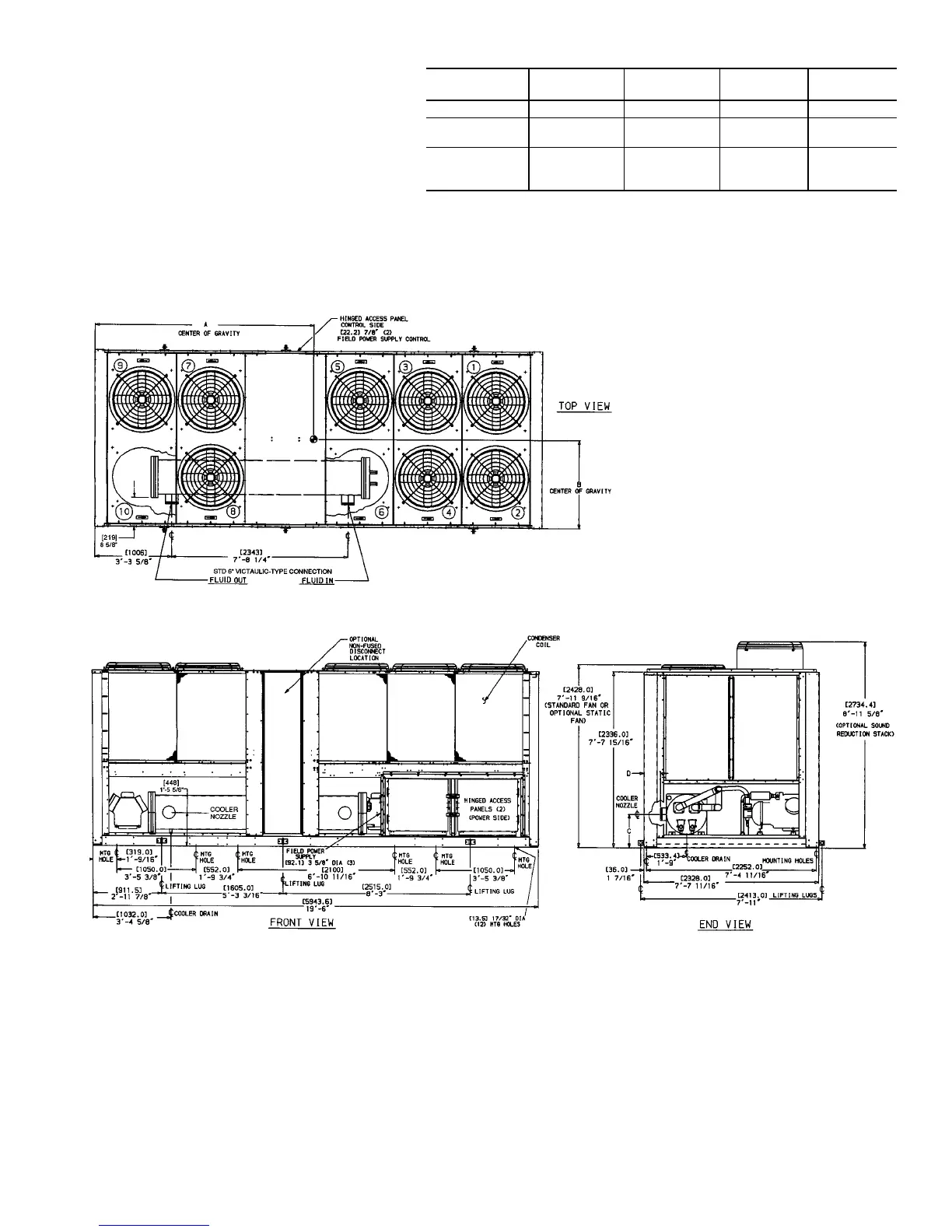

Fig. 3 — Dimensions; 30GT130-170, 230A-270A, 330A/B, 360B (50 Hz)
CENTER OF GRAVITY
(ft-in.)
30GT
UNIT SIZE
ABCD
130 9-4
1
⁄
2
[2858] 4-1
7
⁄
8
[1267] 1-4
3
⁄
4
[425] 0-9
1
⁄
2
[242]
150,
230A-255A
9-4
1
⁄
8
[2849] 4-2
1
⁄
2
[1283] 1-4
3
⁄
4
[425] 0-9
1
⁄
2
[242]
170, 270A,
330A/B,
360B (50 Hz)
9-4
7
⁄
8
[2865] 4-2
1
⁄
2
[1283] 1-5
5
⁄
8
[448] 0-8
5
⁄
8
[219]
5
