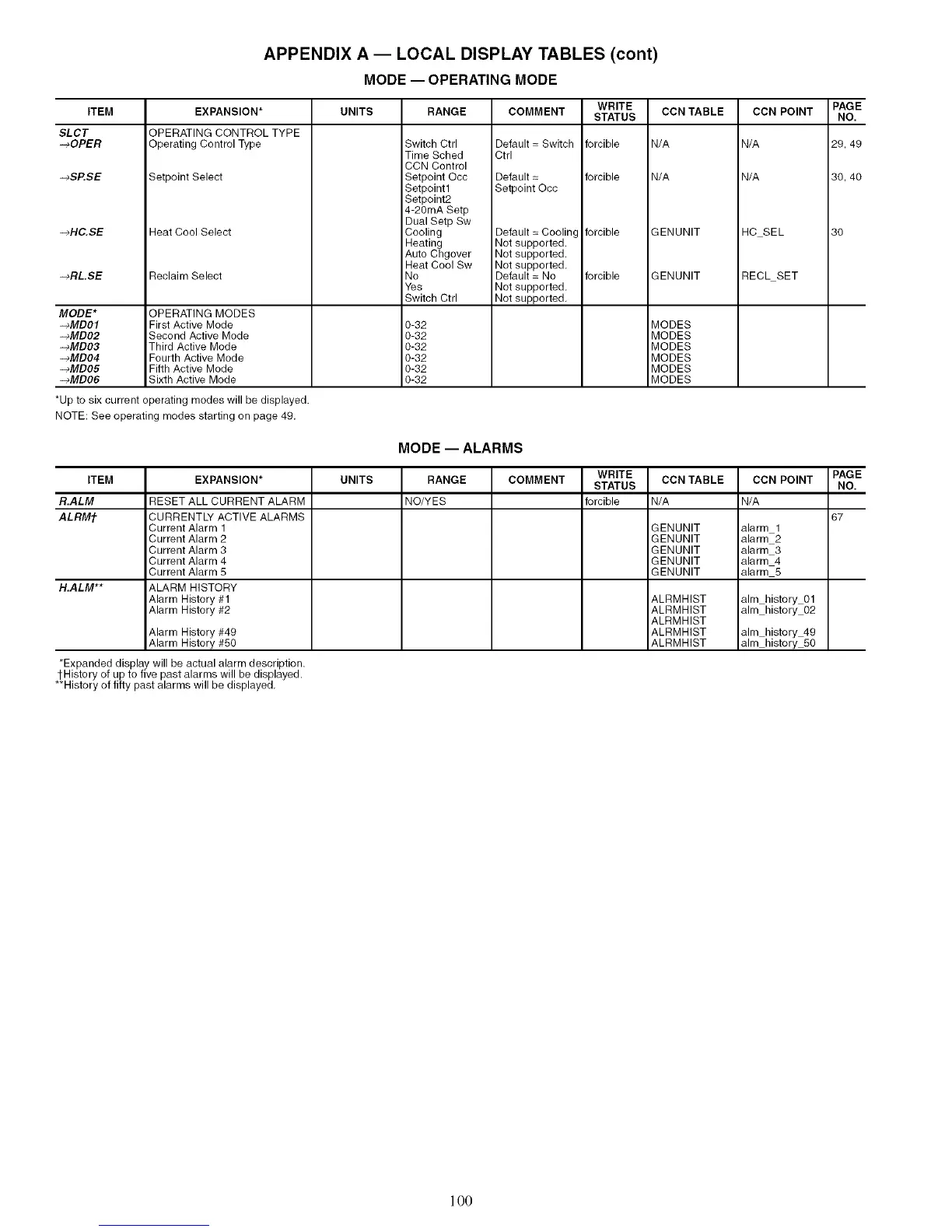

APPENDIX A -- LOCAL DISPLAY TABLES (cont)
MODE -- OPERATING MODE
ITEM
SLCT
-_OPER
-_SP.SE
_HGSE
EXPANSION*
OPERATING CONTROL TYPE
Operating Control Type
Setpoint Select
Heat Cool Select
WRITE PAGE
UNITS RANGE COMMENT STATUS NO.
Switch Ctrl
Time Sched
CCN Control
Setpoint Occ
Setpointl
Setpoint2
4-20mA Setp
Dual Setp Sw
Cooling
Heating
Auto Chgover
Heat Cool Sw
No
Yes
Switch Ctrl
Default - Switch
Ctrl
Default =
Setpoint Occ
Default = Cooling
Not supported.
Not supported.
Not supported.
Default = No
Not supported.
Not supported.
forcible
forcible
forcible
CCN TABLE
N/A
N/A
GENUNIT
CCN POINT
N/A
N/A
HC SEL
29, 49
30, 40
3O
-_RL.SE Reclaim Select forcible GENUNIT RECLSET
MODE* OPERATING MODES
-eMD01 First Active Mode 0-32 MODES
-eMD02 Second Active Mode 0-32 MODES
-eMD03 Third Active Mode 0-32 MODES
-eMD04 Fourth Active Mode 0-32 MODES
-_MD05 Fifth Active Mode 0-32 MODES
-_MD06 Sixth Active Mode 0-32 MODES
*Up to six current operating modes will be displayed.
NOTE: See operating modes starting on page 49.
MODE -- ALARMS
ITEM EXPANSION* UNITS RANGE COMMENT WRITE CCN TABLE CCN POINT PAGE
STATUS NO.
R.ALM RESET ALL CURRENT ALARM NO/YES forcible N/A N/A
ALRMt CURRENTLY ACTIVE ALARMS 67
Current Alarm 1 GENUNIT alarm 1
Current Alarm 2 GENUNIT alarm 2
Current Alarm 3 GENUNIT alarm 3
Current Alarm 4 GENUNIT alarm4
Current Alarm 5 GENUNIT alarm 5
H.ALM** ALARM HISTORY
Alarm History #1 ALRMHIST aim history 01
Alarm History #2 ALRMHIST aim history 02
ALRMHIST
Alarm History #49 ALRMHIST aim history49
Alarm History #50 ALRMHIST aim historySO
*Expanded display will be actual alarm description.
tHistory of up to five past alarms will be displayed.
**History of fifty past alarms will be displayed,
1O0
