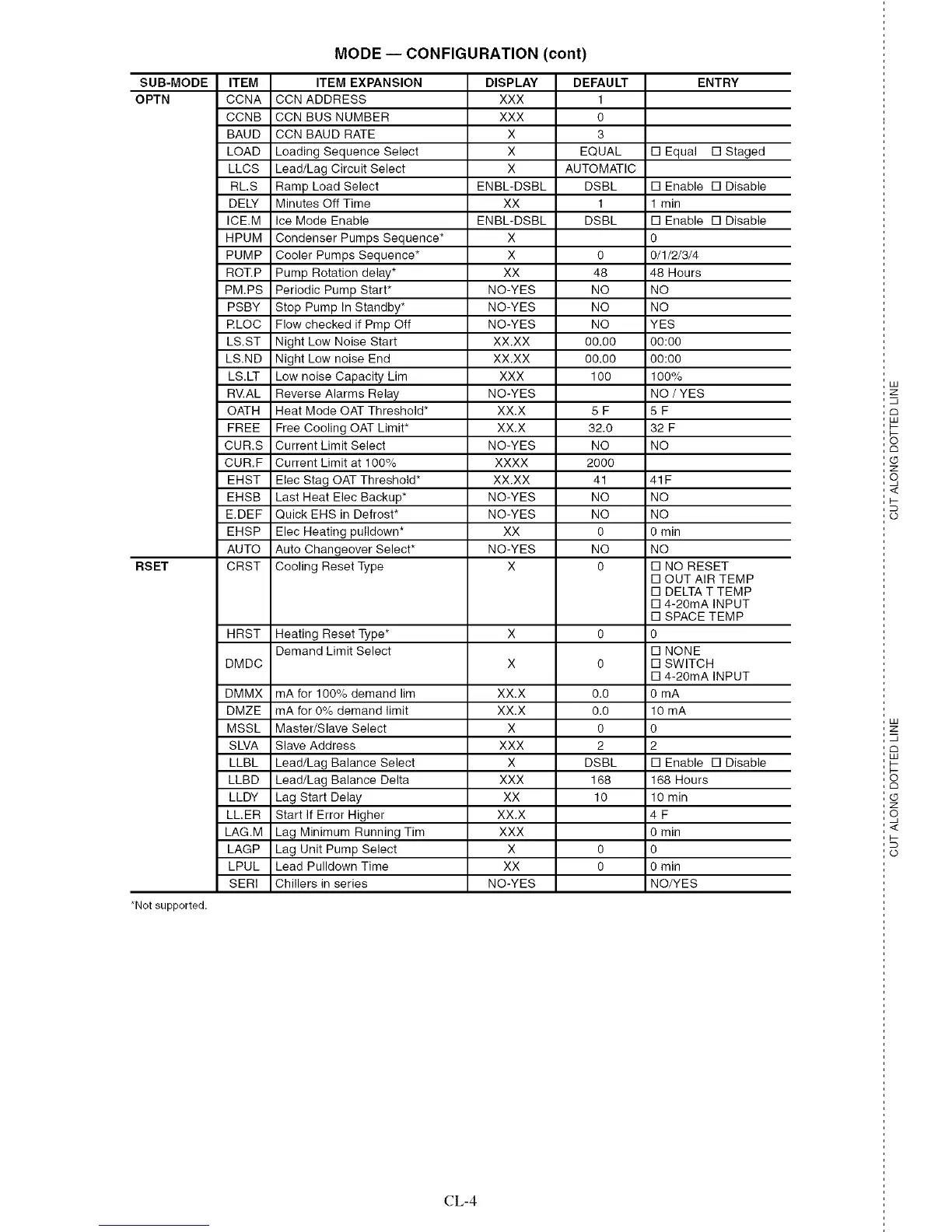

MODE -- CONFIGURATION (cont)
SUB-MODE ITEM ITEM EXPANSION DISPLAY DEFAULT ENTRY
OPTN CCNA CCN ADDRESS XXX 1
CCNB CCN BUS NUMBER XXX 0
BAUD CCN BAUD RATE X 3
LOAD Loading Sequence Select X EQUAL [] Equal [] Staged
LLCS Lead/Lag Circuit Select X AUTOMATIC
RL, S Ramp Load Select ENBL-DSBL DSBL [] Enable [] Disable
DELY Minutes Off Time XX 1 1 min
ICE.M Ice Mode Enable ENBL-DSBL DSBL [] Enable [] Disable
HPUM Condenser Pumps Sequence* X 0
PUMP Cooler Pumps Sequence* X 0 0/1/2/3/4
ROT.P Pump Rotation delay* XX 48 48 Hours
PMPS Periodic Pump Start* NO-YES NO NO
PSBY Stop Pump In Standby* NO-YES NO NO
RLOC Flow checked if Pmp Off NO-YES NO YES
LS.ST Night Low Noise Start XX.XX 00.00 00:00
LS.ND Night Low noise End XX.XX 00.00 00:00
LS.LT Low noise Capacity Lim XXX 100 100%
RV.AL Reverse Alarms Relay NO-YES NO/YES
OATH Heat Mode OAT Threshold* XX.X 5 F 5 F
FREE Free Cooling OAT Limit* XX.X 32.0 32 F
CUR.S Current Limit Select NO-YES NO NO
CUR,F Current Limit at 100% XXXX 2000
EHST Elec Stag OAT Threshold* XX.XX 41 41F
EHSB Last Heat Elec Backup* NO-YES NO NO
E,DEF Quick EHS in Defrost* NO-YES NO NO
EHSP Elec Heating pulldown* XX 0 0 min
AUTO Auto Changeover Select* NO-YES NO NO
RSET CRST Cooling Reset Type X 0 [] NO RESET
[] OUT AIR TEMP
[] DELTA T TEMP
[] 4-20mA INPUT
[] SPACE TEMP
HRST Heating Reset Type* X 0 0
Demand Limit Select [] NONE
DMDC X 0 [] SWITCH
[] 4-20mA INPUT
DMMX mA for 100% demand lim XX.X 0.0 0 mA
DMZE mA for 0% demand limit XX.X 0.0 10 mA
MSSL Master/Slave Select X 0 0
SLVA Slave Address XXX 2 2
LLBL Lead/Lag Balance Select X DSBL [] Enable [] Disable
LLBD Lead/Lag Balance Delta XXX 168 168 Hours
LLDY Lag Start Delay XX 10 10 min
LEER Start If Error Higher XX.X 4 F
LAGM Lag Minimum Running Tim XXX 0 min
LAGP Lag Unit Pump Select X 0 0
LPUL Lead Pulldewn Time XX 0 0 min
SERI Chillers in series NO-YES NO/YES
*Not supported.
CL-4
