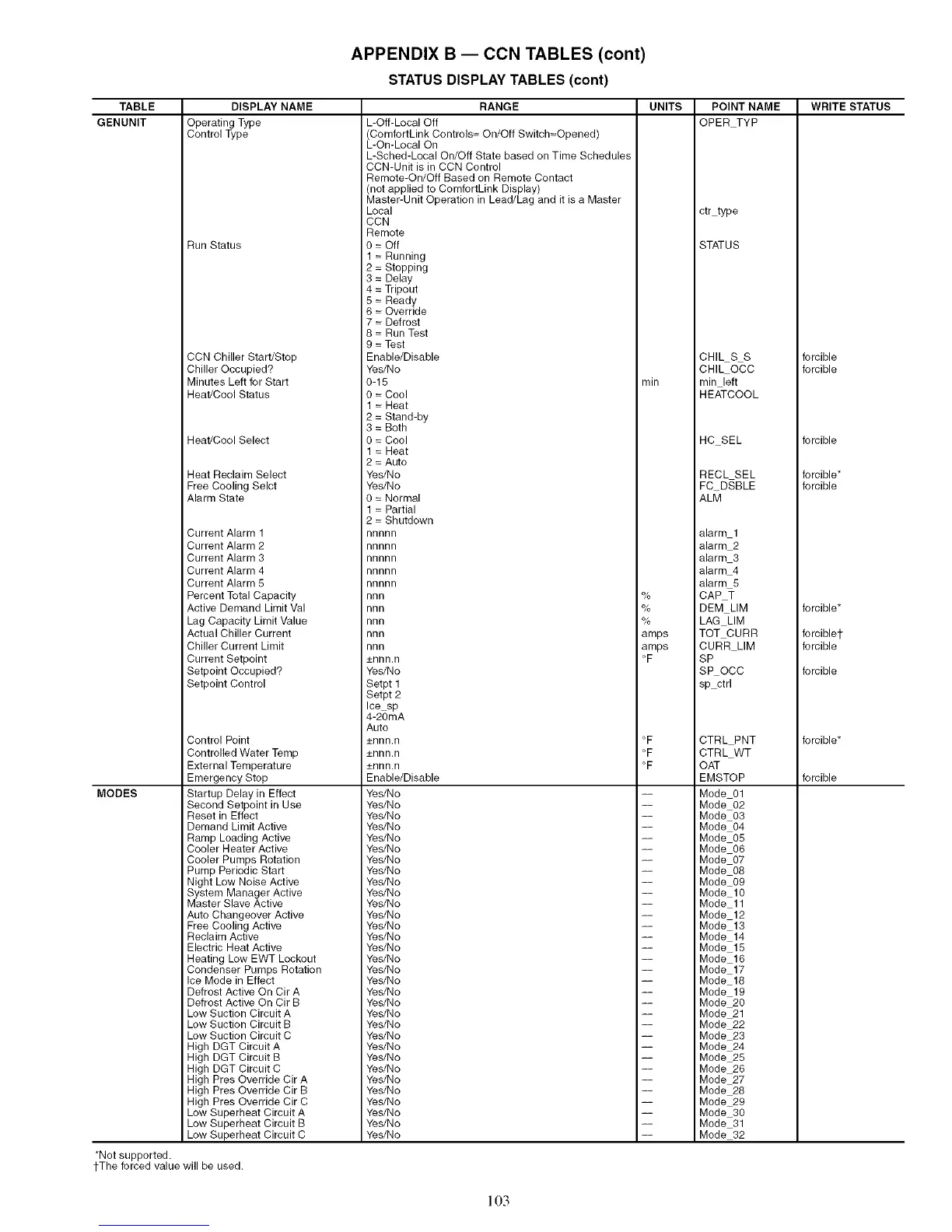

APPENDIX B -- CCN TABLES (cont)
STATUS DISPLAY TABLES (cont)
TABLE
GENUNIT
DISPLAY NAME
Operating Type
Control Type
Run Status
CCN Chiller Start/Stop
Chiller Occupied?
Minutes Left for Start
Heat/Cool Status
Heat/Cool Select
Heat Reclaim Select
Free Cooling Selct
Alarm State
Current Alarm 1
Current Alarm 2
Current Alarm 3
Current Alarm 4
Current Alarm 5
Percent Total Capacity
Active Demand Limit Val
Lag Capacity Limit Value
Actual Chiller Current
Chiller Current Limit
Current Setpoint
Setpoint Occupied?
Setpoint Control
Control Point
Controlled Water Temp
External Temperature
Emergency Stop
MODES Startup Delay in Effect
Second Setpoint in Use
Reset in Effect
Demand Limit Active
Ramp Loading Active
Cooler Heater Active
Cooler Pumps Rotation
Pump Periodic Start
Night Low Noise Active
System Manager Active
Master Slave Active
Auto Changeover Active
Free Cooling Active
Reclaim Active
Electric Heat Active
Heating Low EWT Lockout
Condenser Pumps Rotation
Ice Mode in Effect
Defrost Active On Cir A
Defrost Active On Cir B
Low Suction Circuit A
Low Suction Circuit B
Low Suction Circuit C
High DGT Circuit A
High DGT Circuit B
High DGT Circuit C
High Pres Override Cir A
High Pres Override Cir B
High Pres Override Cir C
Low Superheat Circuit A
Low Superheat Circuit B
Low Superheat Circuit C
*Not supported.
tThe forced value will be used.
RANGE UNITS POINT NAME
L-Off-Local Off OPERTYP
(ComfortLink Controls- On/Off Switch-Opened)
L-On-Local On
L-Sched-Local On/Off State based on Time Schedules
CCN-Unit is in CCN Control
Remote-On/Off Based on Remote Contact
(not applied to ComfortLink Display)
Master-Unit Operation in Lead/Lag and it is a Master
Local ctr type
CCN
Remote
0 - Off STATUS
1 - Running
2 = Stopping
3 = Delay
4 = Tripout
5 - Ready
6 - Override
7 - Defrost
8 - Run Test
9 = Test
Enable/Disable CHILS S
YedNo CHILOCC
0-15 rain rain left
0 - Cool HEATCOOL
1 - Heat
2 = Stand-by
3 = Both
0 = Cool HC SEL
1 = Heat
2 = Auto
YedNo RECL SEL
YedNo FC DSBLE
0 = Normal ALM
1 - Partial
2 - Shutdown
nnnnn alarm 1
nnnnn alarm 2
nnnnn alarm 3
nnnnn alarm4
nnnnn alarm 5
nnn % CAP T
nnn % DEM LIM
nnn % LAG LIM
nnn amps TOT CURR
nnn amps CURR LIM
_+nnn.n °F SP
Yes/No SP OCC
Setpt 1 sp ctrl
Setpt 2
Ice sp
4-20mA
Auto
_+nnn.n °F CTRL PNT
_+nnn.n °F CTRLWT
_+nnn.n °F OAT
Enable/Disable EMSTOP
Yes/No -- Mode 01
Yes/No -- Mode 02
Yes/No -- Mode 03
Yes/No -- Mode 04
YedNo -- Mode 05
YedNo -- Mode 06
YedNo -- Mode 07
YedNo -- Mode 08
Yes/No -- Mode 09
Yes/No -- Mode 10
Yes/No -- Mode 11
Yes/No -- Mode 12
Yes/No -- Mode 13
Yes/No -- Mode 14
Yes/No -- Mode 15
Yes/No -- Mode 16
Yes/No -- Mode 17
Yes/No -- Mode 18
YedNo -- Mode 19
YedNo -- Mode20
YedNo -- Mode21
YedNo -- Mode22
Yes/No -- Mode23
Yes/No -- Mode24
Yes/No -- Mode25
Yes/No -- Mode26
Yes/No -- Mode27
Yes/No -- Mode28
Yes/No -- Mode29
Yes/No -- Mode 30
Yes/No -- Mode 31
YedNo -- Mode 32
WRITE STATUS
forcible
forcible
forcible
forcible*
forcible
forcible*
forciblet
forcible
forcible
forcible*
forcible
103
