1.
7
I
n
s
t
a
l
l
a
t
i
o
n
o
f
t
h
e
L
a
b
e
l
R
o
l
l
•
L
a
b
e
l
S
p
e
c
i
f
i
c
a
t
i
o
n
s

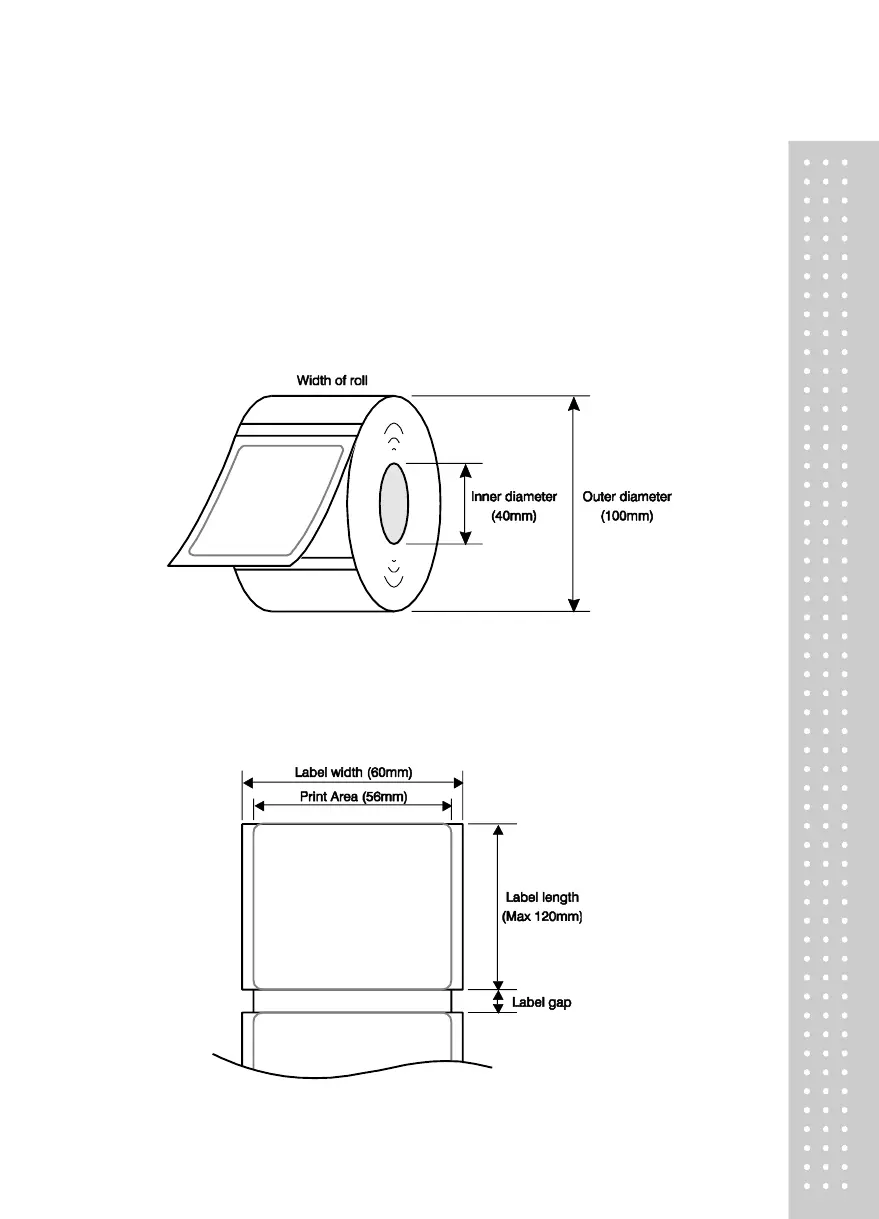

Outer diameter of roll : 100mm
Inner diameter of roll : 40mm
W
idth
of receipt roll : 40, 50, 60mm
W
idth
of label roll : 60mm(MAX)
•
P
r
i
n
t
A
r
e
a
W
idth
of label : 60mm(MAX)
Printable width : 56mm(MAX)
Length of label : 120mm(MAX)
19
21
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
7
Precautions
7
Introductions
10
Specifications
11
Name and Functions
13
Symbols
16
Key Functions
17
Installation of the Label Roll
20
2 Programming
22
PLU Programming
28
Create By-Weight PLU (Menu Code 1120)
30
Create By-Count PLU (Menu Code 1120)
35
Create By-PCS PLU (Menu Code 1120)
36
Editing PLU (Menu Code 1120)
38
Management(Menu Code 1140)
38
Copying PLU (Menu Code 1141)
38
Deleting PLU (Menu Code 1142)
39
Moving PLU (Menu Code 1143)
40
PLU Sale Count(Menu Code 1145)
41
Selecting PLU Field Items (Menu Code 1144)
41
Sample Printing (Menu Code 1170)
42
Programming PLU Data Table I
43
Department (Menu Code 1210)
43
New/Edit Department (Menu Code 1211)
44
Delete Department (Menu Code 1213)
45
Group (Menu Code 1220)
45
New/Edit Group (Menu Code 1221)
45
Delete Group (Menu Code 1223)
46
Tax Rate (Menu Code 1230)
47
New/Edit Tax Rate (Menu Code 1231)
47
Delete Tax Rate (Menu Code 1233)
48
Sales Message (Menu Code 1240)
49
New/Edit Sales Message (Menu Code 1241)
49
Delete Sales Message (Menu Code 1243)
50
Origin (Menu Code 1250)
50
New/Edit Origin (Menu Code 1251)
50
Delete Origin (Menu Code 1253)
51
Barcode (Menu Code 1260)
51
New/Edit Barcode (Menu Code 1261)
51
Delete Barcode (Menu Code 1263)
54
Tare (Menu Code 1270)
54
New/Edit Tare (Menu Code 1271)
54
Delete Tare (Menu Code 1273)
56
Tare Key (Menu Code 1274)
56
Unit Symbol (Menu Code 1280)
57
New/Edit Unit Symbol (Menu Code 1281)
57
Delete Unit Symbol (Menu Code 1283)
58
Programming PLU Data Table II
59
Ingredient (Menu Code 1310)
59
New/Edit Ingredient (Menu Code 1311)
59
Delete Ingredient (Menu Code 1313)
60
Nutrition Facts (Menu Code 1320)
61
New/Edit Nutrition Facts (Menu Code 1321)
61
Delete Nutrition Facts (Menu Code 1323)
66
Discount Programming
67
Discount (Menu Code 1130)
67
New/Edit Discount (Menu Code 1131)
67
Delete Discount (Menu Code 1133)
71
Global Discount (Menu Code 1530)
74
Priority Setting (Menu Code 1531)
74
Weight/Count/Pcs Discount (Menu Code 1532/1533/1534)
75
Speed Key Setting (Menu Code 1160)
76
Programming Store Data
78
Store Data (Menu Code 1410)
78
New/Edit Store (Menu Code 1411)
78
Delete Store (Menu Code 1413)
79
Customer (Menu Code 1420)
80
New/Edit Customer (Menu Code 1421)
80
Delete Customer (Menu Code 1423)
82
Scroll Message (Menu Code 1430)
82
Configuration (Menu Code 1431)
82
Edit Scroll Message (Menu Code 1432)
83
Currency (Menu Code 1440)
86
New/Edit Currency (Menu Code 1441)
86
Delete Currency (Menu Code 1443)
88
Job Batch Schedule (Menu Code 1450)
88
New/Edit Job Batch Schedule (Menu Code 1451)
88
Delete Job Batch Schedule (Menu Code 1453)
89
Delete Scanner Conversion Table (Menu Code 1463)
90
New/Edit Scanner Conversion Table (Menu Code 1461)
90
Scanner (Menu Code 1460)
90
Scanner Config (Menu Code 1464)
91
Label Format Key Table (Menu Code 1470)
92
Programming Global Setting
94
Global Label Format (Menu Code 1510)
94
Barcode Format (Menu Code 1520)
96
Global Tax Number (Menu Code 1542)
99
Set Global Tax (Menu Code 1541)
99
Tax (Menu Code 1540)
99
Printing Programming(Menu Code 1700)
101
Print Label Item (Menu Code 1710)
101
Markdown (Menu Code 1720)
103
Printer Hardware (Menu Code 1730)
104
Label Size/Ticket Size (Menu Code 1732)
105
Print Mode (Menu Code 1731)
105
Sensor Calibration (Menu Code 1733)
106
Print Intensity (Menu Code 1735)
107
Sensor & Motor (Menu Code 1734)
107
Adjust Feed Length (Menu Code 1736)
108
Adjust Reverse Feed Length (Menu Code 1738)
108
Label Preprint (Menu Code 1737)
108
Serial Number Format (Menu Code 1740)
109
Add-Up Total (Menu Code 1750)
110
Select List Item (Menu Code 1762)
111
Select Ticket Item (Menu Code 1761)
111
Ticket (Menu Code 1760)
111
Select Ticket Font Size (Menu Code 1763)
114
Programming Scale Configuration (Menu Code 1800)
115
Sale Mode (Menu Code 1810)
115
Operation Mode (Menu Code 1820)
117
Date & Time (Menu Code 1840)
118
Department (Menu Code 1830)
118
New/Edit User(Menu Code 1851)
120
User/ Security Configuration (Menu Code 1850)
120
Change Password (Menu Code 1852)
122
Config Permission (Menu Code 1855)
123
Delete User (Menu Code 1854)
123
Clerk Key (Menu Code 1856)
125
Test (Menu Code 1860)
126
A/D Test (Menu Code 1862)
126
Display Test (Menu Code 1861)
126
Chess Printer Test (Menu Code 1864)
127
Keyboard Test (Menu Code 1863)
127
Printer Sensor Test (Menu Code 1865)
127
Communication (Menu Code 1868)
130
Firmware Version (Menu Code 1867)
130
Scale Parameter (Menu Code 1870)
130
Function Key Define (Menu Code 1880)
132
Report
136
Introduction
136
Report Menu (Menu Code 1600)
136
X1 Report (Menu Code 1610/1630)
136
X1 Scale Sales Report (Menu Code 1611/1613)
137
X1 PLU Report (Menu Code 1612/1632)
139
X1 Miscellaneous PLU Report (Menu Code 1613/1633)
142
X1 Group Report (Menu Code 1614/1644)
144
X1 Department Sales Report (Menu Code 1615/1635)
146
X1 Hourly Sales Report (Menu Code 1616/1636)
148
X1 Clerk Sales Report (Menu Code 1617/1637)
150
Z1 Report (Menu Code 1620/1640)
152
Clear All Report (Menu Code 1650)
153
3 Sales Operation
154
Basic Operation
154
Zero
154
Tare
155
Manual Tare Entry 1
155
Weighed Tare Entry
155
How to Clear Tare
156
Preset Tare
156
Successive Tare
157
Calling up a PLU
158
Using Numeric Key
158
Using Speed Key
158
Override (for Key)
159
By-Weight PLU
159
By-Count PLU
160
By-PCS PLU
161
Sales Operation
163
Weighed Item Operation
163
By Count Item
164
By PCS Item
166
Discount
167
Unit Price Discount - by Weight PLU
167
Unit Price Discount - by PCS PLU
170
Add-Up Transaction
171
Clerk Operation
173
Standard Clerk Operation
174
Floating Clerk Operations
175
Void
178
Payment & Chance
180
Return
182
Prepack Key
183
Key
186
By-Weight PLU
186
Non-Weighed PLU
187
How to Change Sell by Date/Time
188
How to Change Origin
189
How to Change PLU Type
190
Direct Discount
191
Fixed Price Key
191
Discount Price Key
192
PLU Connection
193
Coupled PLU Function
193
Link PLU Function
193
Referenced PLU Function
193
Sales Operation Control Parameters
193
Fixed Weight
193
Prepack Without Report
193
Appendix
194
Label Format
194
Label Format's Field Sample
201
ASCII Code Table
