Casio IT-10M20 User Manual

111
Bridge Satellite Cradle
3

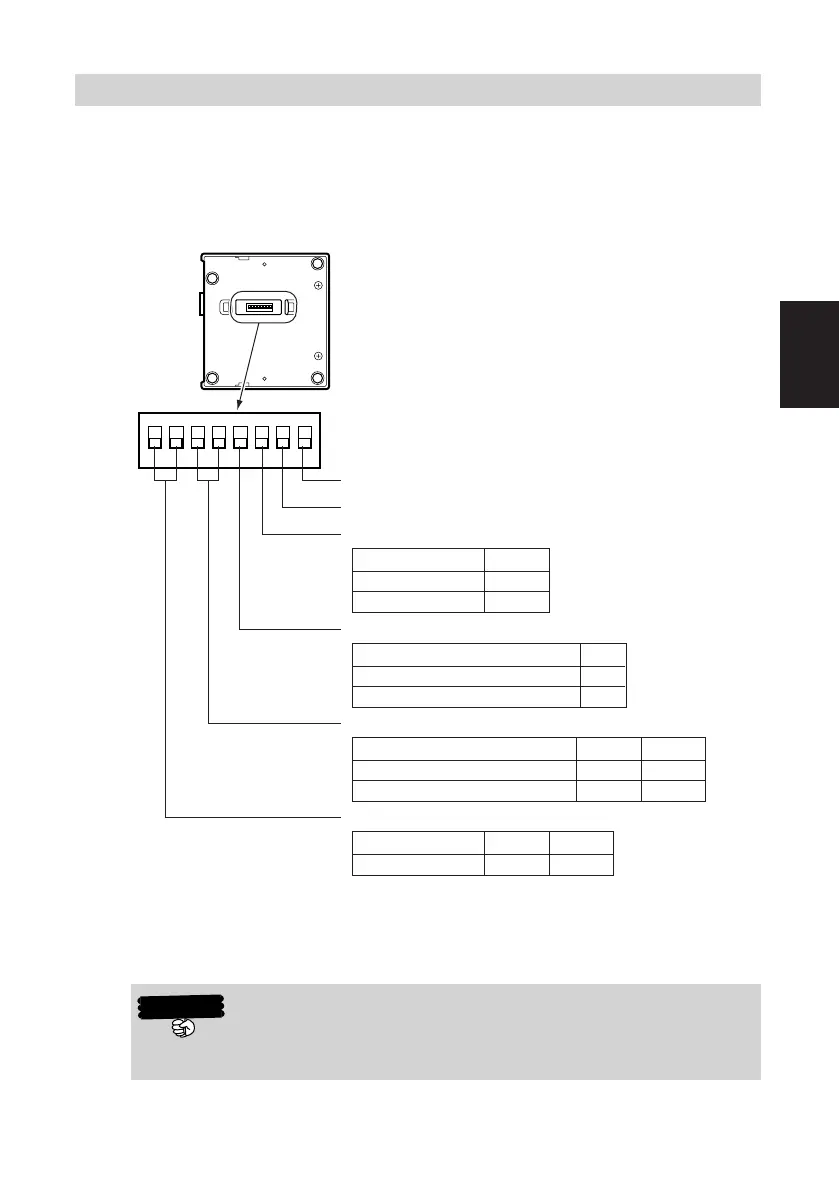

Configuring DIP Switch Settings
The DIP switches are located under the cover on the bottom of the Bridge Satellite
Cradle.
Make sure Bridge Satellite Cradle power is turned off before changing DIP switch
settings.
Though it is possible for the user to configure DIP switch settings, it is
recommended that this operation be left up to qualified personnel of
your authorized CASIO distributor.
1 2 3 4 5 6 7 8
OFF
1 2 3 4 5 6 7 8
OFF
Switch Number 6
RS-232C OFF
USB ON*
Switch Number 5
Intermediate Connection OFF
Daisy Chain Off/Termination ON*
Switch Number 3 4
Host Computer OFF* OFF*
Daisy Chain ON OFF
Inter-Cradle Data Rate
Switch Number 1 2
115,200bps ON* OFF*
Daisy Chain Termination
Connection
Not used (always OFF)
Not used (always OFF)
Host Computer Interface
* Initial default setting
