Chromalox 2104 User Manual

Chromalox 2104 Technical Manual 9
8
9
18
7

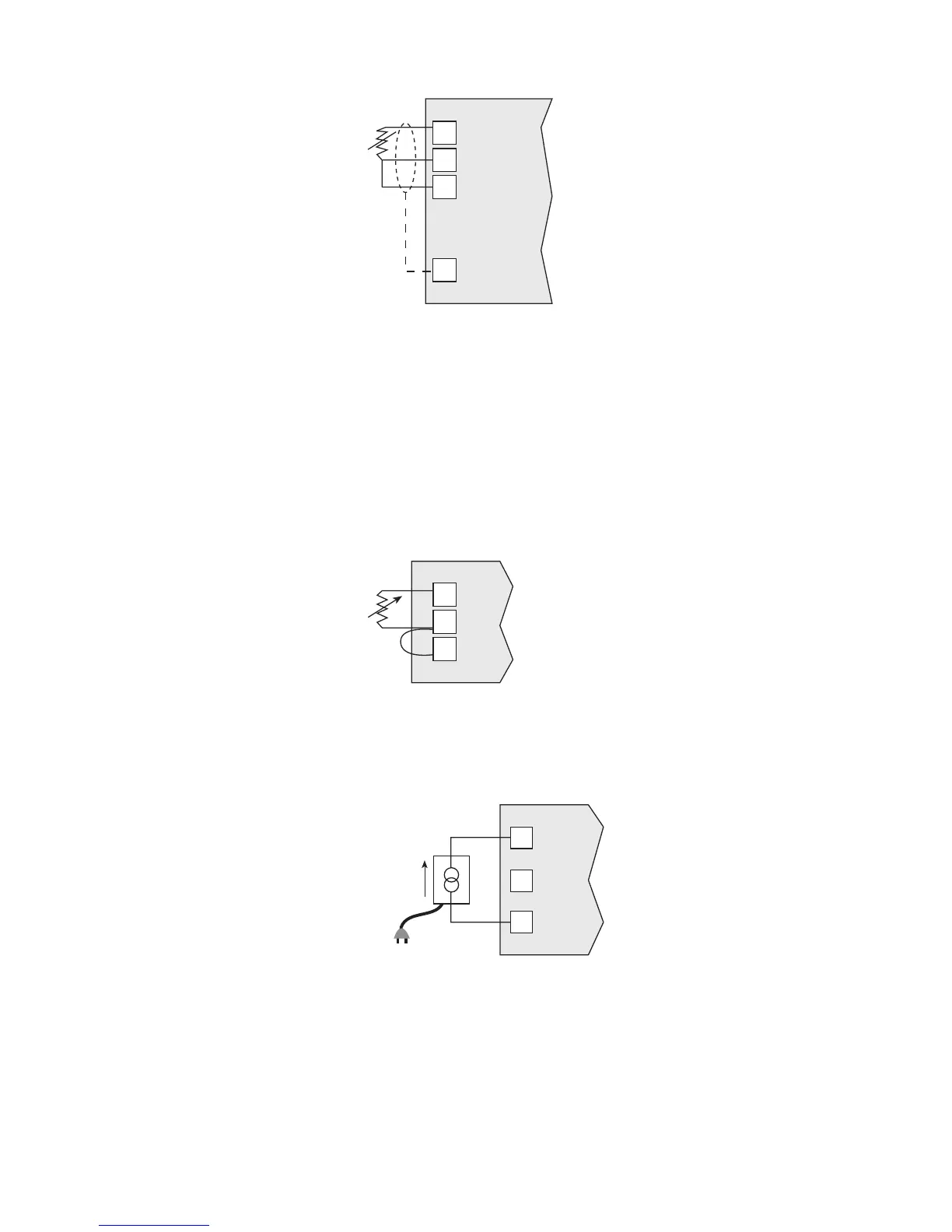

Figure 2.6
3-Wire RTD
Connections
2-Wire RTD Inputs
If using a 2-wire RTD input, use heavier gauge
leadwires to reduce leadwire resistance. Any
leadwire resistance adds directly to sensor resistance,
thus adding error to the process temperature
measurement. It is also necessary to jumper
terminals 8 and 9 on the instrument to complete a
2-wire hookup.
Figure 2.7
2-Wire
Connections
7
8
9
Shield Grnd
2104
2104
Current/Voltage Inputs
7
8
9
4-20mA
+
Figure 2.8
Current
Input Wiring
(Self-powered)
2104
