Chromalox 2104 User Manual

Chromalox 2104 Technical Manual 47

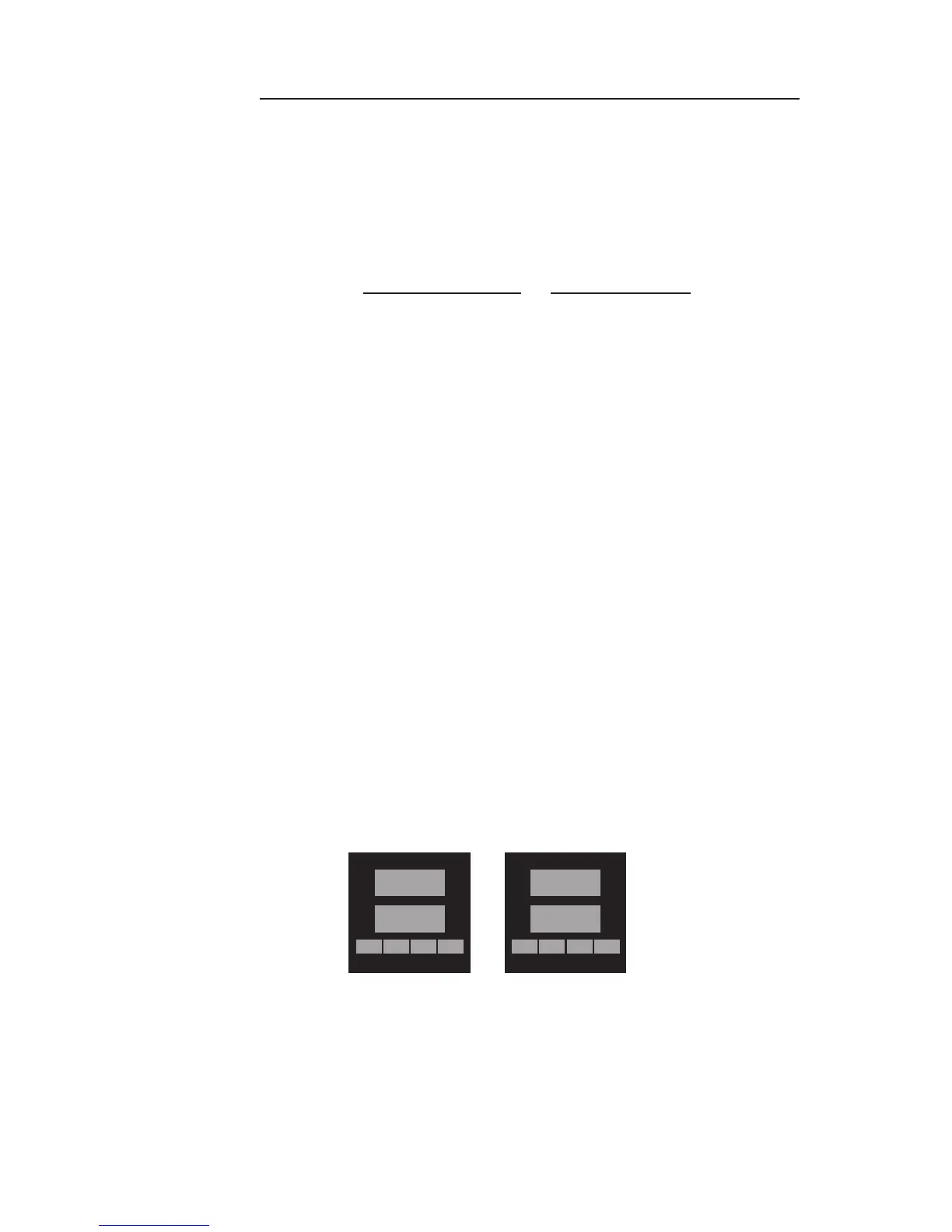

Section 6
Alarms
The 2104 controller can provide up to three alarm
outputs using Output #3, #4 and #5. These optional
outputs are indicated by the following controller
model numbers:
Optional Outputs Model Number
Outputs #3 and #4 2104 - **1**
Output #5 2104 - ***1*
2104 - ***2*
2104 - ***4*
2104 - ***5*
Each alarm is individually setup with a high and low
setpoint on its own Page:
•OUT3 PAGE
•OUT4 PAGE
•OUT5 PAGE
Outputs #3, #4 and #5 can be individually setup as
Alarms or Events, and can be individually disabled.
To function as an alarm, the output type must be
specified as an alarm output, ALR, in the first menu,
output type (TYP3, TYP4, TYP5). If the function is an
Event, the output type must be specified as ENT. The
Events then are enabled in the Ramp/Soak (RSPG)
page, menus SBET (Standby Event) through I16E.
OO
OO
O
UT3UT3
UT3UT3
UT3
PP
PP
P
AA
AA
A
GEGE
GEGE
GE
AUX ▲▼
RESET
TYP3TYP3
TYP3TYP3
TYP3
ALAL
ALAL
AL
RR
RR
R
AUX ▲▼
RESET
➮
☛
