18 Chromalox 2104 Technical Manual
Heat/Cool Control Output Wiring
(continued)

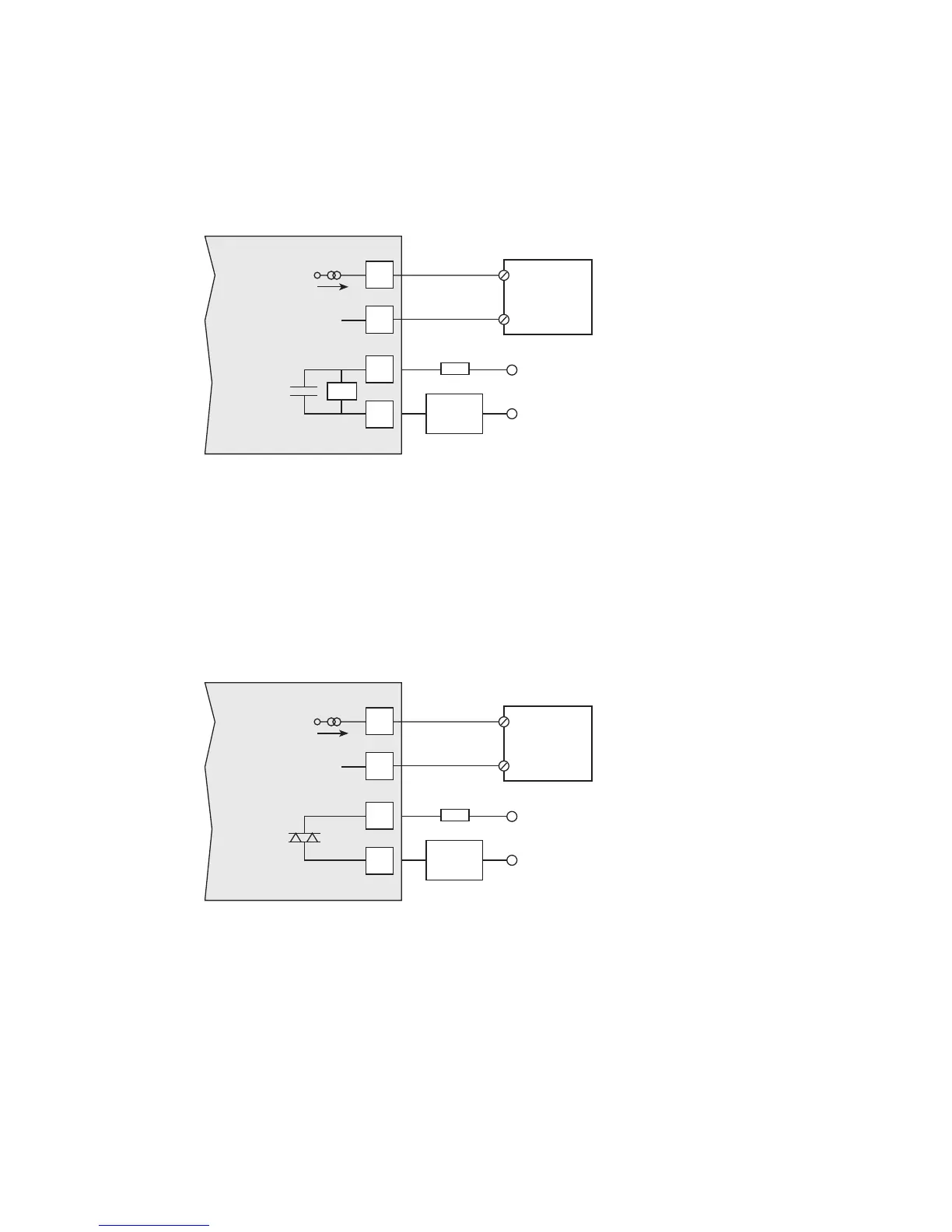

Figure 2.27
Dual Output Analog/Relay Wiring
+
-
Figure 2.28
Dual Output Analog/Triac Wiring
+
-
2104
10
2
11
12
Heater
Power
Controller
(Output #1)
(Output #2)
MOV
Common
Fuse
Cool
Load
120 Vac or 230 Vac
AC Neutral
4-20mA
10
2
11
12
Heater
Power
Controller
(Output #1)
(Output #2)
Common
Fuse
Cool
Load
120 Vac or 230 Vac
AC Neutral
4-20mA
