16 Chromalox 2104 Technical Manual
Heat/Cool Control

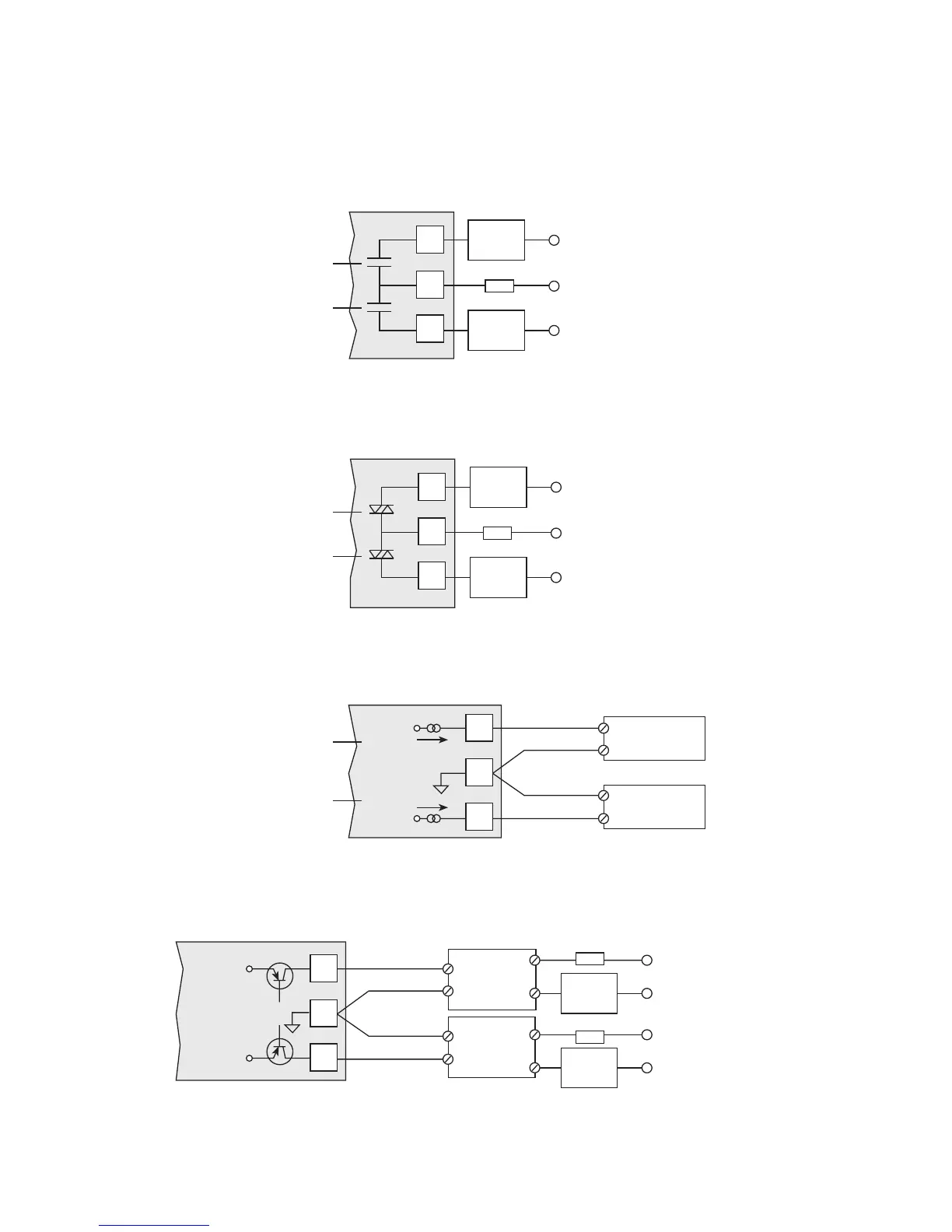

Output Wiring
Figure 2.20
Dual Relay Output Wiring
10
11
12
Heat
Load
Cool
Load
AC Neutral
120 Vac or 230 Vac
AC Neutral
Fuse
2104
Output #1
Output #2
Figure 2.21
Dual Triac Output Wiring
10
11
12
Heat
Load
Cool
Load
AC Neutral
120 Vac or 230 Vac
AC Neutral
Fuse
2104
Output #1
Output #2
Figure 2.22
Dual Analog Output Wiring
Heat Control
(0-800 Ohm)
10
11
12
Cool Control
(0-800 Ohm)
+24 Vdc
+24 Vdc
4-20mA
4-20mA
+
-
-
+
2104
Output #1
Output #2
Figure 2.23
Dual SSR Drive Output Wiring
2104
Solid
State
Relay
Solid
State
Relay
10
11
12
+24 Vdc
+24 Vdc
+
-
-
+
120 Vac or 230 Vac
Cool
Load
AC Neutral
120 Vac or 230 Vac
Heat
Load
AC Neutral
Fuse
Fuse
(Output #1)
(Output #2)
