Chapter 1 Cisco 3200 Rugged Enclosures
Cisco 3230 Router Card Stack
The Cisco 3230 Rugged Enclosure can accommodate up to seven cards, including:
• One MARC
• Up to three WMICs
• One SMIC (or no SMIC)
• One FESMIC
• One MRPC
A basic configuration includes one of each of the following: MARC, SMIC, FESMIC, WMIC, and
MRPC.
In the Cisco 3230 Rugged Enclosure, the cards should be stacked in the order shown in Figure 1-5. The
two optional WMICs are on the top of the stack.

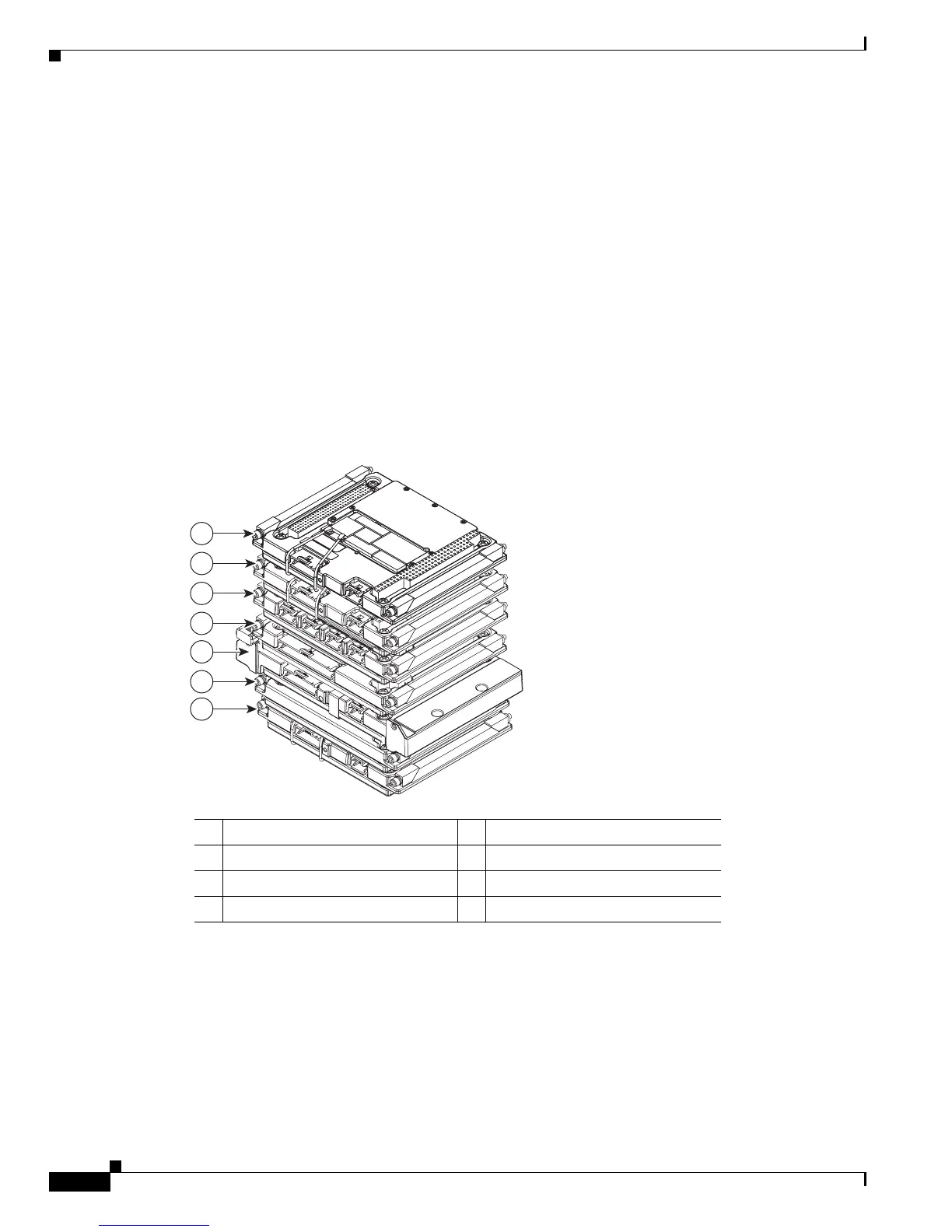

Figure 1-5 Cisco 3230 Router Stack
1 WMIC 1 2 MRPC
3 MARC 4 SMIC
5 FESMIC 6 WMIC 2
7 WMIC 3
270443
7
6
5
4
3
2
1
