Cisco Catalyst 6880-X User Manual

Cable Pinouts

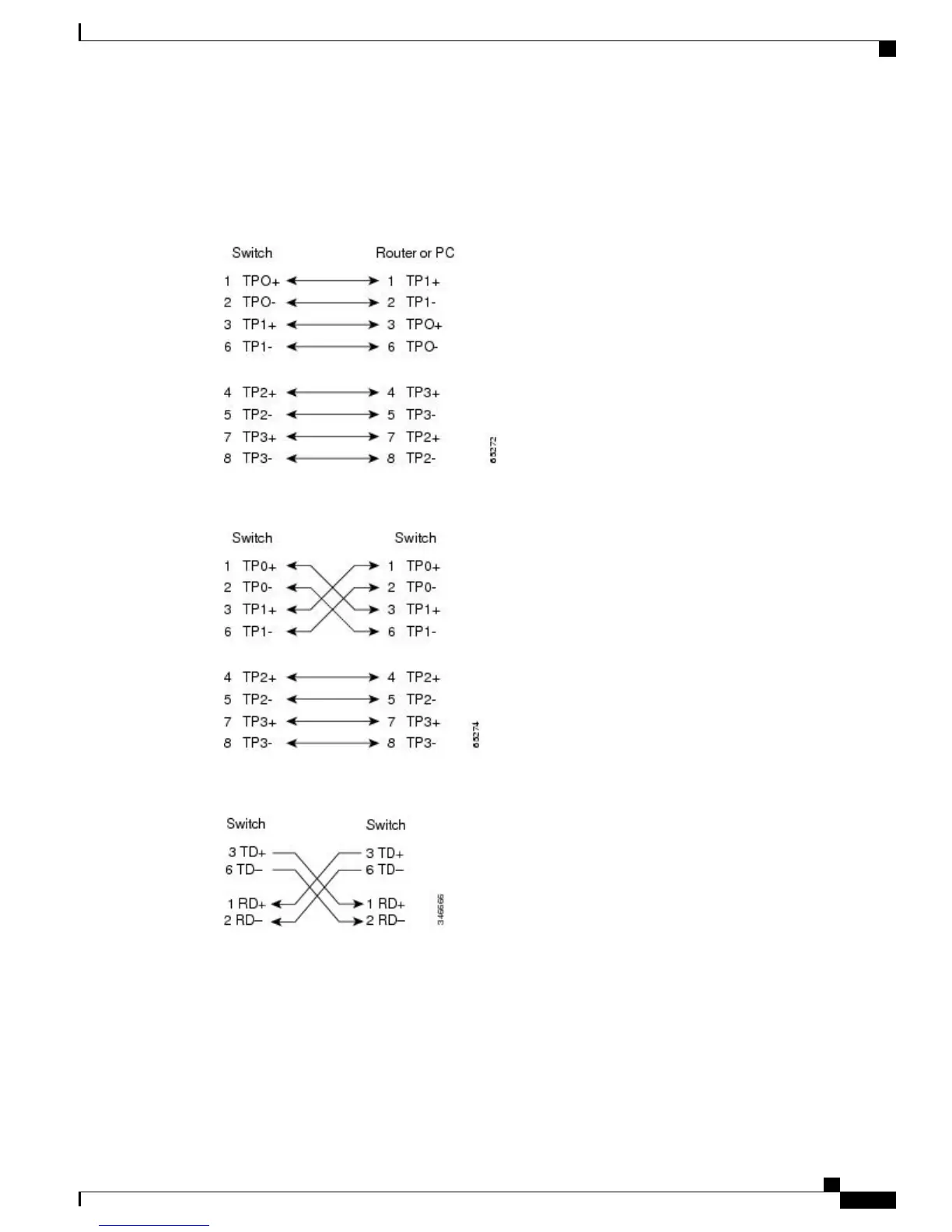

Figure 59: Four Twisted-Pair Straight-Through Cable Schematic
Figure 60: Four Twisted-Pair Crossover Cable Schematic
Figure 61: Two Twisted-Pair Straight-Through Cable Schematic
Figure 62: Two Twisted-Pair Crossover Cable Schematic
Catalyst 6880-X Switch Hardware Installation Guide
OL-30827-02 95
Module Connectors and Cable Specifications
Cable Pinouts
