Step 4
Pull the fan tray clear of the chassis, and set it aside.

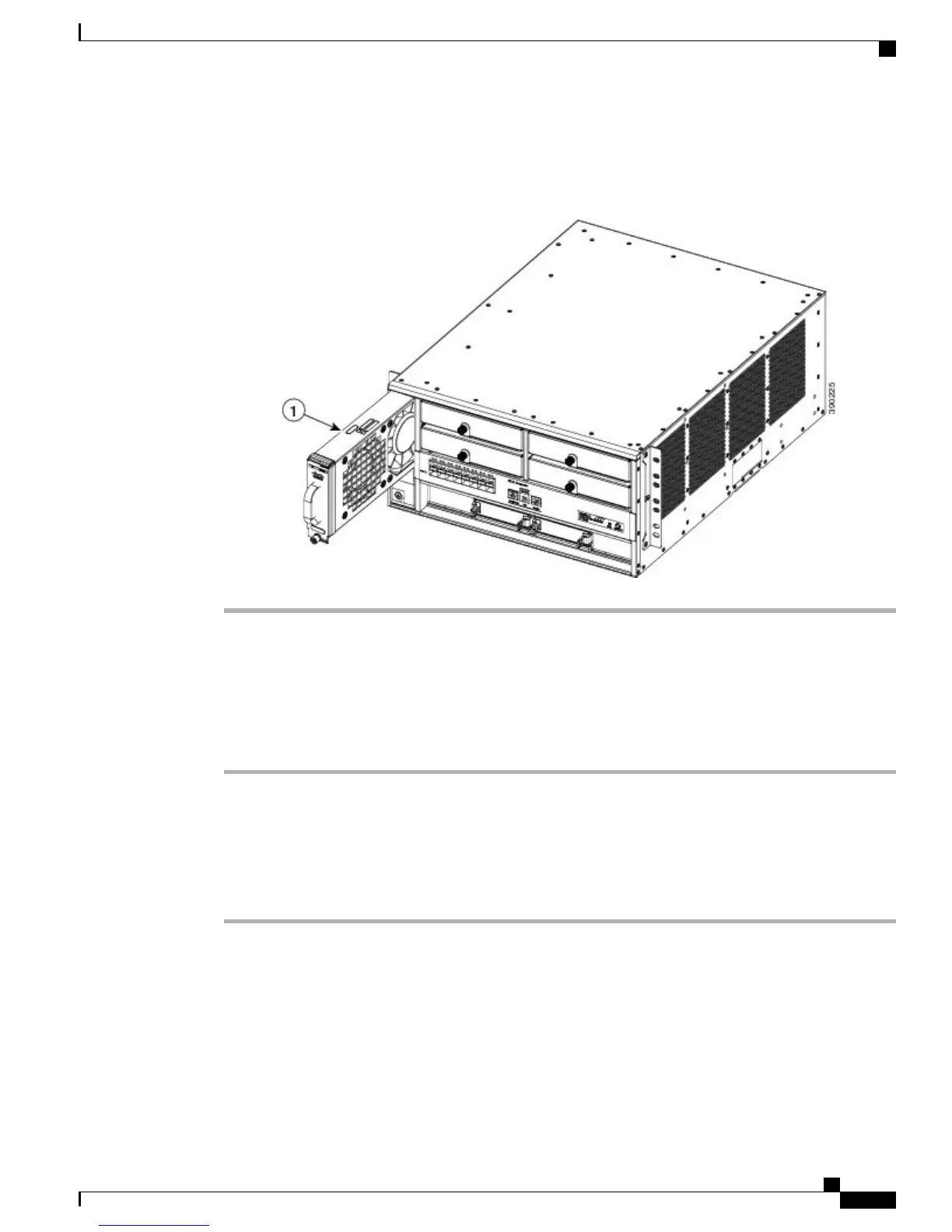

Figure 39: Removing the Fan Tray
Installing the Fan Tray
Procedure
Step 1
Hold the fan tray with the captive screw at the bottom.
Step 2
Place the fan tray into the front chassis cavity so that it rests on the chassis, and then lift the fan tray up slightly,
aligning the top and bottom chassis guides.
Step 3
Push the fan tray into the chassis until the power connector seats in the backplane and the captive installation
screw make contact with the chassis.
Step 4
Tighten the captive installation screw.
Related Topics
Cooling with the Fan Tray , on page 20
Catalyst 6880-X Switch Hardware Installation Guide
OL-30827-02 75
Replacing the Fan Tray
Installing the Fan Tray
