Installing the Shelf Brackets and Shelf— 17.5 in. (44.45 cm) Opening
Before You Begin
Review the following illustration and table.

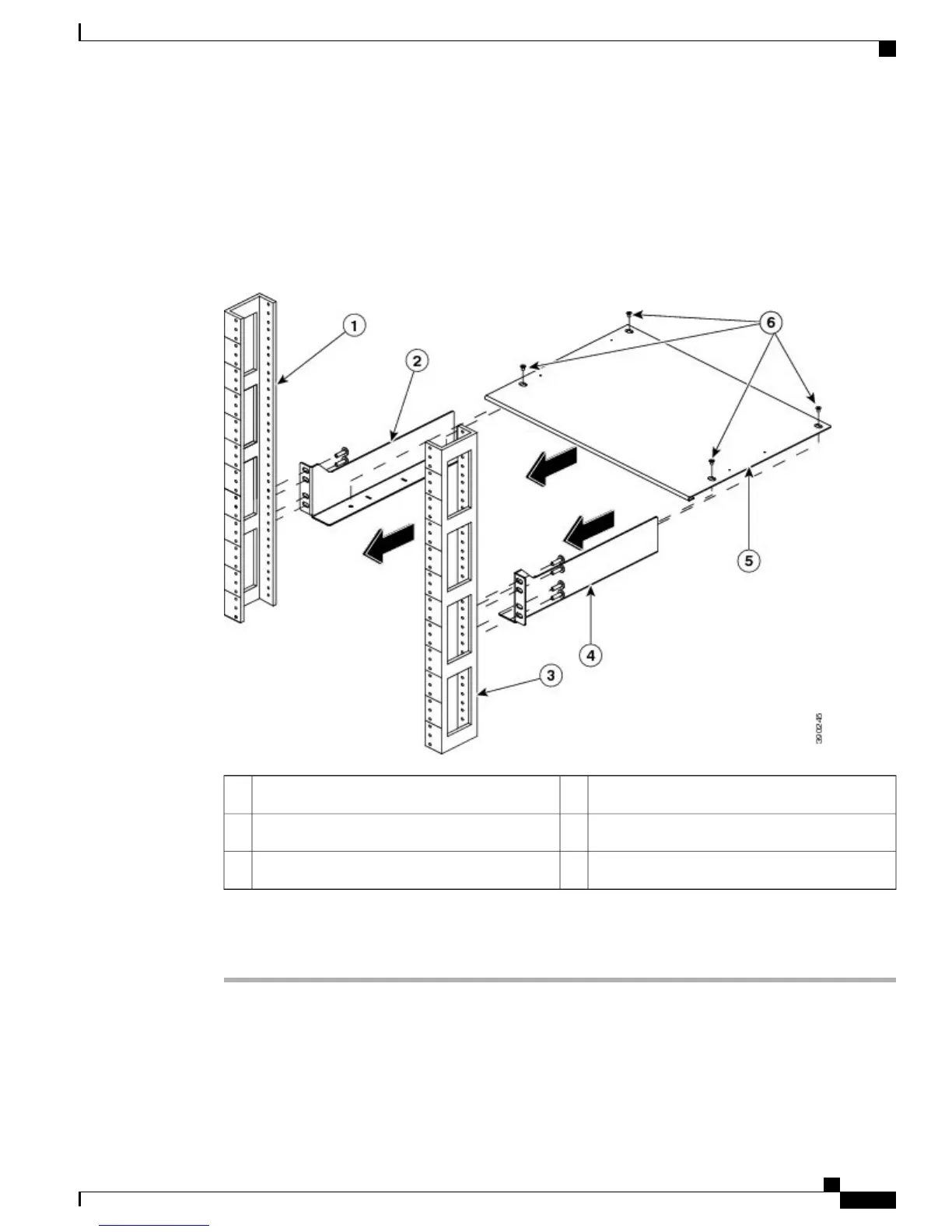

Figure 13: Installing the Shelf Brackets on a Rack with a 17.5 in. (44.45 cm) Opening
Right shelf bracket4Left rail1
Support shelf5Left shelf bracket2
M4 flathead Phillips screws6Right rail3
Procedure
Step 1
Position the support flange of the left shelf bracket on the front of the left rail, as shown in the figure.
(Alternatively, you can position the support flange of the left shelf bracket on the back of the left rail.)
Step 2
Secure the shelf bracket to the rack by using four screws.
Catalyst 6880-X Switch Hardware Installation Guide
OL-30827-02 39
Installing the Switch
Installing the Rack-Mount Shelf Kit
