Step 3
Position the support flange of the right shelf bracket on the front of the right rail, as shown in the figure. If
you used the alternative position for the left shelf bracket in Step 1, then use the alternative position for the
right shelf bracket. Make sure that the brackets are level with each other.
Step 4
Secure the shelf bracket to the rack by using four screws.
Step 5
Place the shelf so that it rests on the bottom flanges of the shelf brackets. Extrusions on the bottom of the
shelf should fit into openings in the flanges.
Step 6
Secure the shelf to the support flanges on the shelf brackets with two screws for each shelf bracket.
Installing the Shelf Brackets and Shelf— 17.75 in. (45.09 cm) Opening
Before You Begin
Review the following illustration and table.

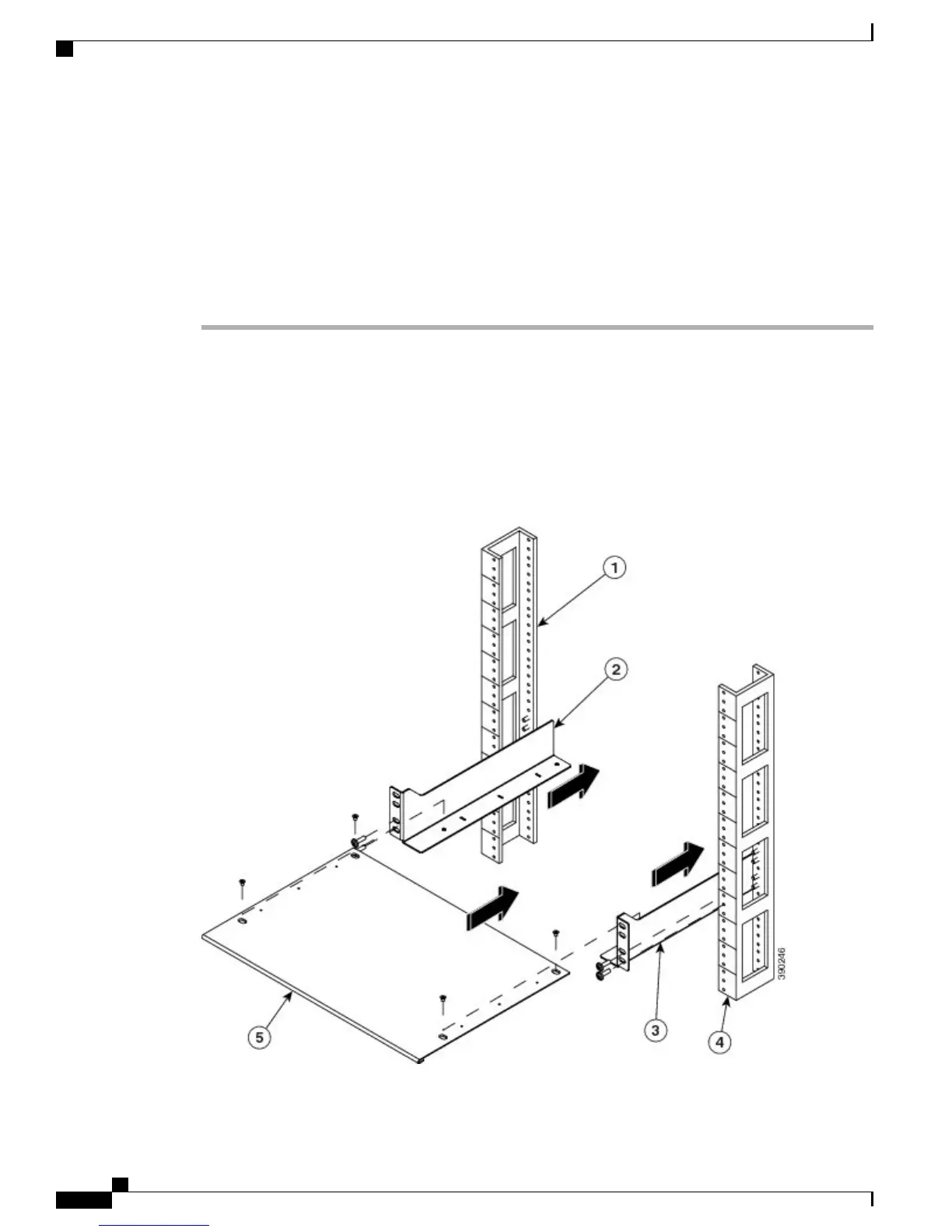

Figure 14: Installing the Shelf Brackets on a Rack with a 17.75 in. (45.09 cm) Opening
Catalyst 6880-X Switch Hardware Installation Guide
40 OL-30827-02
Installing the Switch
Installing the Rack-Mount Shelf Kit
