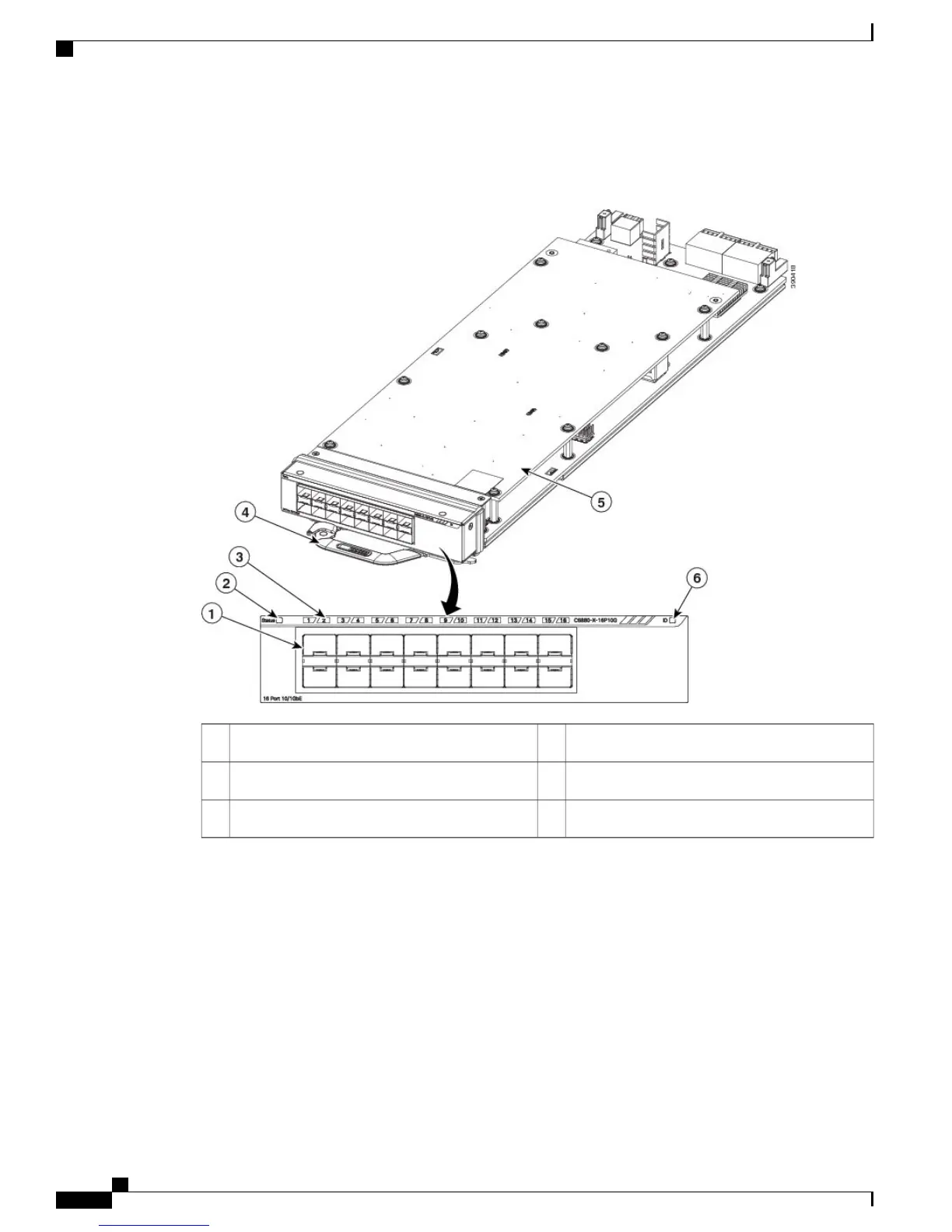

Figure 26: Modular Port Card (C6880-X-LE-16P10G and C6880-X-16P10G)
Extraction handle416 SFP+ or 100BASE-FX SFP ports1
Port card5Status LED2
ID (blue beacon LED)6Port LEDs3
For a list of supported SFP and SFP+ modules, see the switch data sheet:http://www.cisco.com/c/en/us/
products/collateral/switches/catalyst-6880-x-switch/data_sheet_c78-728228.html .
Modular Port Card LEDs
For information on the modular port card LEDs, see these sections :
•
SFP+ Port LEDs, on page 10
•
Status LED on the Modular Port Card, on page 9
•
ID LED on the Modular Port Card, on page 10
Catalyst 6880-X Switch Hardware Installation Guide
64 OL-30827-02
Installing the Modular Port Card
Modular Port Card LEDs
