1-44
Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
CDE420 4A-C
Figure 1-37 is a front view of the CDE420 showing the location of the storage drives. Note that some
CDE configurations do not have 24 drives. Table 1-42 lists the CDE420 4A-C PCI expansion cards and
their corresponding PCI slot numbers (see Figure 1-12 to see the location of the PCI expansion slots).

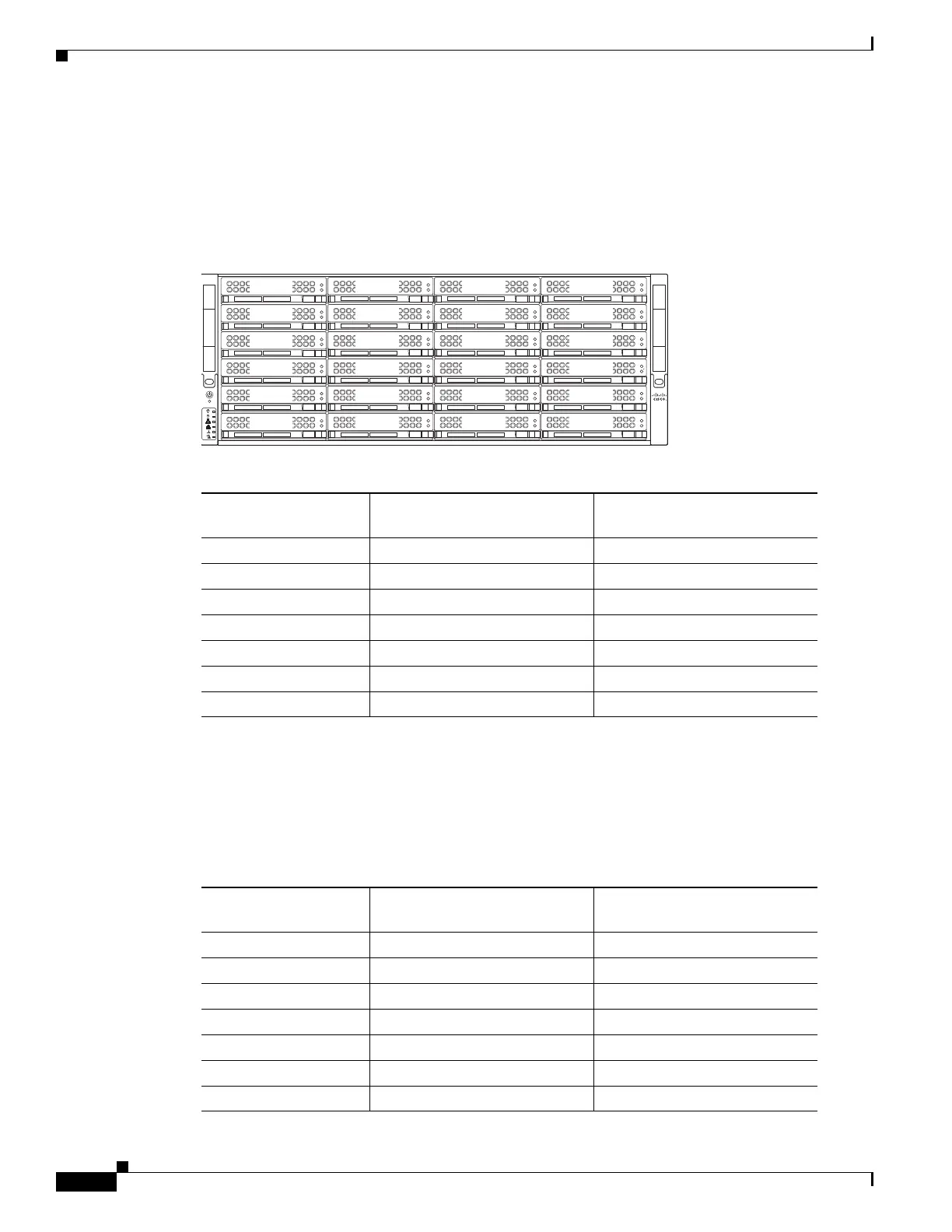

Figure 1-37 CDE420 Drives (all models)
CDE420 4A-F
Figure 1-37 is a front view of the CDE420 (all models) showing the location of the storage drives.
Table 1-43 lists the CDE420 4A-F PCI expansion cards and their corresponding PCI slot numbers (see
Figure 1-12 to see the location of the PCI expansion slots).
Table 1-42 CDE420 4A-C Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—quad copper eth6 eth7 eth8 eth9
3 NIC—quad copper eth2 eth3 eth4 eth5
4— —
5— —
6— —
7— —
RESET
205501
disk3
disk2
disk1
disk6
disk5
disk4
disk9
disk8
disk7
disk12
disk11
disk10
disk15
disk14
disk13
disk18
disk17
disk16
disk21
disk20
disk19
disk24
disk23
disk22
Table 1-43 CDE420 4A-F PCI Expansion Cards
PCI Expansion
Slot Number
Expansion Card Interface Name
(top to bottom)
1— —
2 NIC—dual fiber eth6 eth7
3 NIC—dual fiber eth2 eth3
4— —
5— —
6— —
7— —
