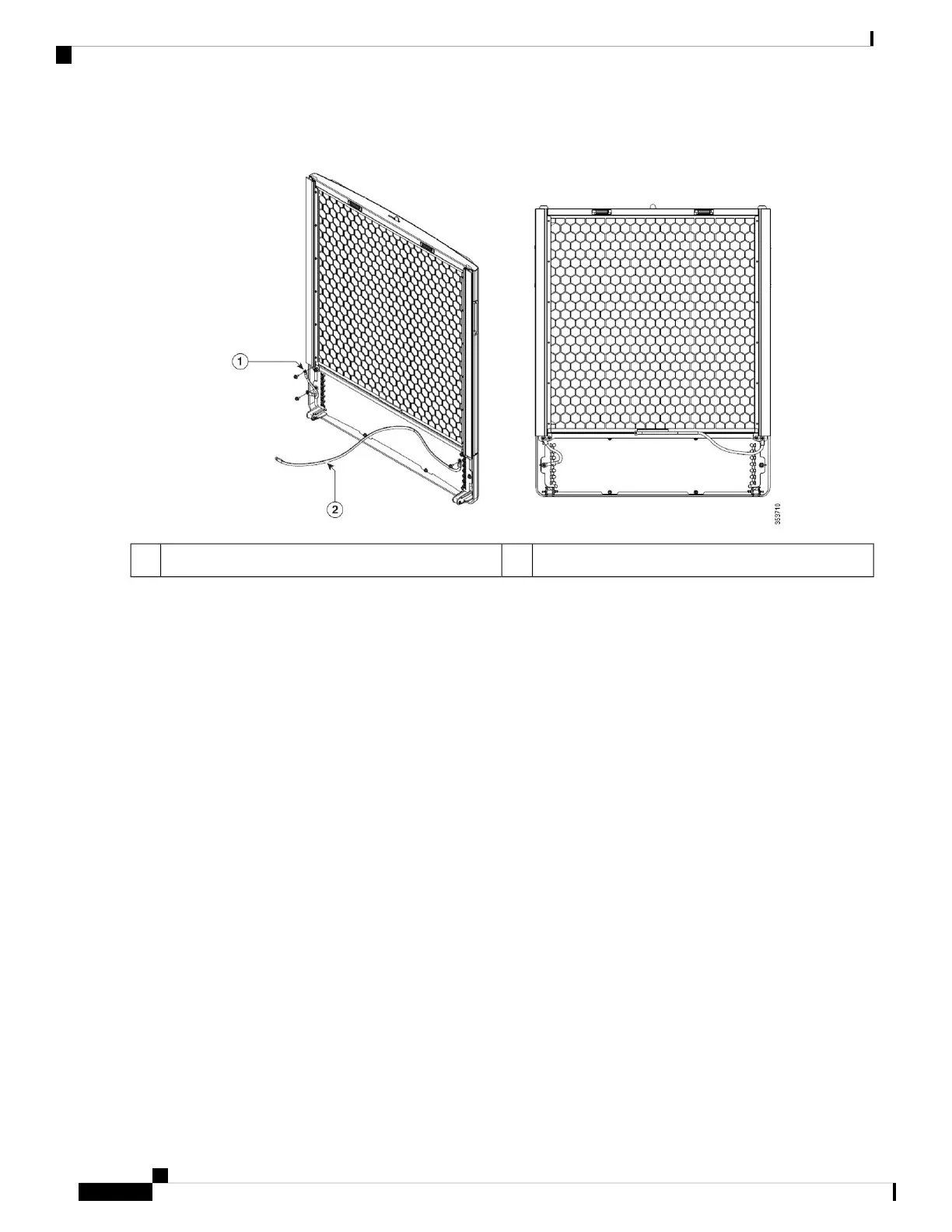

Figure 12: Grounding Cable Location on the Front ID Door
Grounding cable2Grounding cable1
Step 5 Apply the star ring terminal end of the grounding cable to the front ID door.
Step 6 Connect the other round terminal of the grounding cable to the ground port on the chassis as shown in Figure 9. Tighten
the M4 screw to 9 to 12 in-lb (1.01 to 1.35 N-m) of torque.
Cisco Nexus 7710 Switch Site Preparation and Hardware Installation Guide
OL-30452-01.32
Installing the Chassis
Grounding the Front ID Door
