Cisco VG320 User Manual

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only
through the use of a special tool, lock and key, or other means by security. Statement 1017
The Cisco VG310 and Cisco VG320 chassis support the following:
•
Two 10/100/1000BASE-T Gigabit Ethernet ports
•
External compact flash memory
•
AC and DC power inputs
• (For Cisco VG310 only)—24-analog Foreign Exchange Station (FXS) voice ports using one RJ-21
analog voice interface connector
• (For Cisco VG320 only)—48-analog FXS voice ports using two RJ-21 analog voice interface connectors
Front Panel View

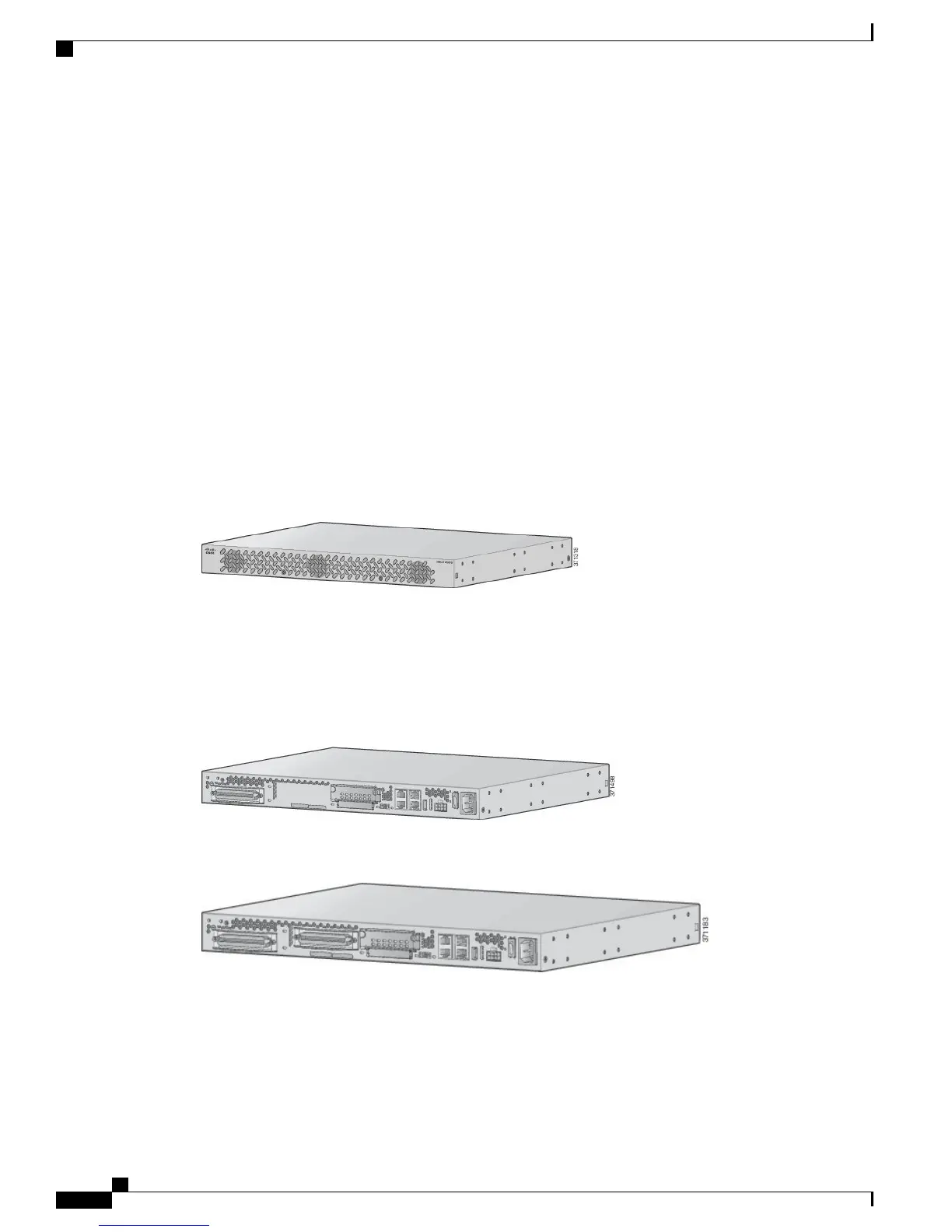

The following figure shows the front panel of the Cisco VG310 and Cisco VG320 chassis.
Figure 1: Front Panel of the Cisco VG310 and Cisco VG320 Chassis
Back Panel View
The following figures show the back panel views of the Cisco VG310 and Cisco VG320 chassis respectively.
Figure 2: Back Panel of the Cisco VG310 Chassis
Figure 3: Back Panel of the Cisco VG320 Chassis
Cisco VG310 and Cisco VG320 Voice Gateways Hardware Installation Guide
2 OL-31292-01
Overview of the Cisco VG310 and Cisco VG320 Voice Gateways
Front Panel View

Cisco VG320 Specifications

General

Brand	Cisco
Model	VG320
Category	Gateway
Language	English
