Chapter 2 Route Switch Processors and Supervisor Engines
Route Switch Processor 720
Route Switch Processor 720
This section describes the Route Switch Processor 720 (RSP720). The Cisco 7600 RSP720 consists of a
full-size board and two integrated daughter cards: the MSFC4 and a PFC3C or PFC3CXL. The RSP720
has an integrated switch fabric that interconnects all of the line cards in the Cisco 7600 router with
point-to-point 20-Gbps full-duplex serial channels.
Note • Cisco IOS Release 12.2SRB and later releases support the RSP720; earlier releases do not.
The RSP720 is supported on all Cisco 7600 routers (including enhanced chassis) except the Cisco
7603 and the Cisco OSR-7609.
• Cisco IOS Release 12.2SRC and later releases support an RSP720 that has 10GE uplinks
(RSP720-3C-10GE and RSP720-3CXL-10GE). See the “RSP720 with 10GE Uplink Ports” section
on page 2-10 for more information.

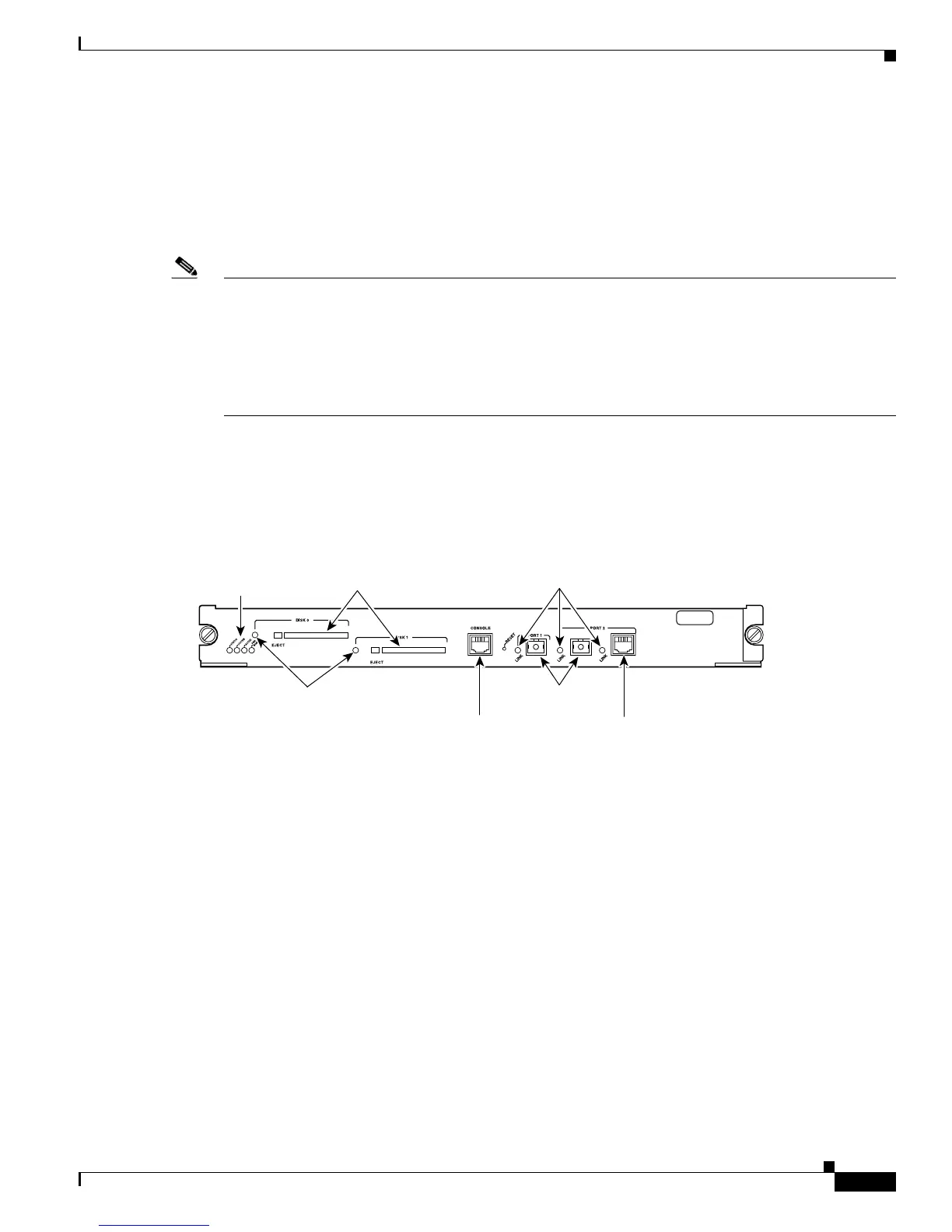

Figure 2-1 shows the RSP720-3C-GE front panel, which is the same as the RSP720-3CXL-GE front
panel. See Table 2-8 and Table 2-9 for information about the front-panel controls and LEDs.
Figure 2-1 Route Switch Processor 720 (RSP720-3C-GE) Front Panel
RSP720 Features
The RSP720 provides several new features and enhancements, which are summarized here. For details,
see the Cisco 7600 Series Router Cisco IOS Software Configuration Guide, Release 12.2SR.
• 720 gigabits per second (Gbps) bandwidth (320 Gbps ingress and 320 Gbps egress)
• A faster CPU and additional memory to support larger configurations and more subscribers
• Performance and scalability improvements
• Quality of service (QoS) enhancements
• The RSP720-GE ships on the route processor (RP) with default 2-GB memory for the 3CXL version
and 1-GB for the 3C version. The switch processor (SP) ships with a default 1-GB memory. Memory
options are available to upgrade to 4-GB memory on the RP. From Cisco IOS Release 12.2(33)SRD1
onwards, a 2-GB memory upgrade option is supported on the SP.
RSP720-3C-GE
RSP 720 WITH INTEGRATED SWITCH FABRIC/3C-GE
191402
STATUS LEDs
Disk LEDs
CONSOLE port
LINK LEDs
Gigabit Ethernet
uplink port
10/100/1000 uplink port
CompactFlash
Type II slots
