Model DCX 13 Next DCX Next
Energy efficiency class A *
)
Rated capacity / rated current 11 kW..13.5 kW (16 A..20 A) 18 kW..27 kW (26 A..39 A)
Chosen capacity / current 11 kW / 16 A
13.5 kW / 20 A 18 kW / 26 A 21 kW / 30 A 24 kW / 35 A 27 kW / 39 A
Electrical connection 3~ / PE 380..415 V AC 3~ / PE 380..415 V AC
3~ / PE
400 V AC
Min. required cable size
1)
1.5 mm
2
2.5 mm
2
4.0 mm
2
4.0 mm
2
6.0 mm
2
6.0 mm
2
Hot water (l/min)
max. at ∆t = 28 K
max. at ∆t = 38 K
5.6
2)
4.1
6.9
2)
5.1
2)
9.2
2)
6.8
10.7
2)
7.9
12.3
2)
9.0
2)
13.8
2)
10.2
2)
Rated volume 0.4 l
Rated pressure 1.0 MPa (10 bar)
Connecting type pressure-resistant / pressureless
Heating system Bare wire heating system IES
®
@ 15 °C:
Required specific water resistance
Specific electrical conductivity
≥ 1100 cm
≤ 90 mS/m
Inlet temperature ≤ 30 °C
Flow rate to switch on – max. flow rate 1.5 l/min – 5.0
3)
1.5 l/min – 8.0
3)
Pressure loss 0.08 bar at 1.5 l/min 1.3 bar at 9.0 l/min
4)
Temperature range 35 °C / 38 °C / 42 °C / 48 °C / 55 °C
Water connection G ½inch
Weight (when filled with water) 4.2 kg
VDE class of protection I
Type of protection / safety
IP25
*
) The declaration complies with the EU regulation No812/2013.
1) Maximum applicable cable size is 10 mm
2
at electrical connection from above
2) Mixed water
3) Flow rate limited to achieve optimum temperature rise
4) Without flow regulator

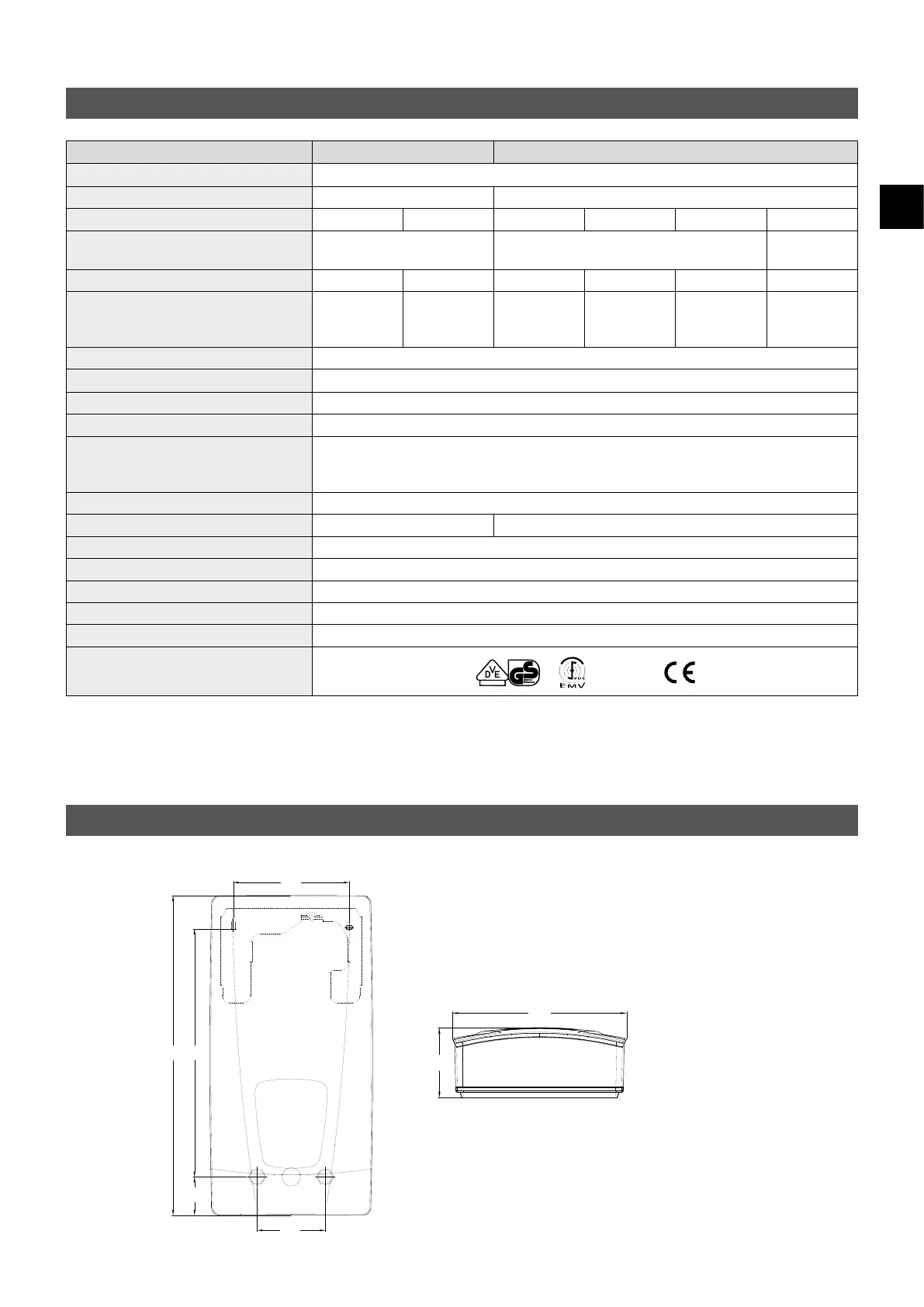

2. Technical specifications
3. Dimensions
100
170
468 363
56
96
239
Dimensions in mm

clage DCX 13 Next Specifications

General

Brand	clage
Model	DCX 13 Next
Category	Water Heater
Language	English
