FM Tuner
Frequency range: 87.5-108.0MHz
Usable sensitivity: 8dBf
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
MW Tuner
Frequency range: 531- 1602kHz
Usable sensitivity (S/N=20dB): 30dBμ
LW Tuner
Frequency range: 153-279kHz
Usable sensitivity (S/N=20dB): 34dBμ
CD Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >94dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel separation: >60dB
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps / VBR
WMA bit rate: 8 kbps to 320 kbps
Logical format: ISO9660 level 1,2
Joliet le system
USB
Specication: USB 1.0/2.0
Playable audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Bluetooth
Specication: Bluetooth Ver. 2.0+EDR
Prole: HFP (Hands-free Prole)
PBAP(Phone Book Access Prole)
A2DP (Advanced Audio Distribution
Prole)

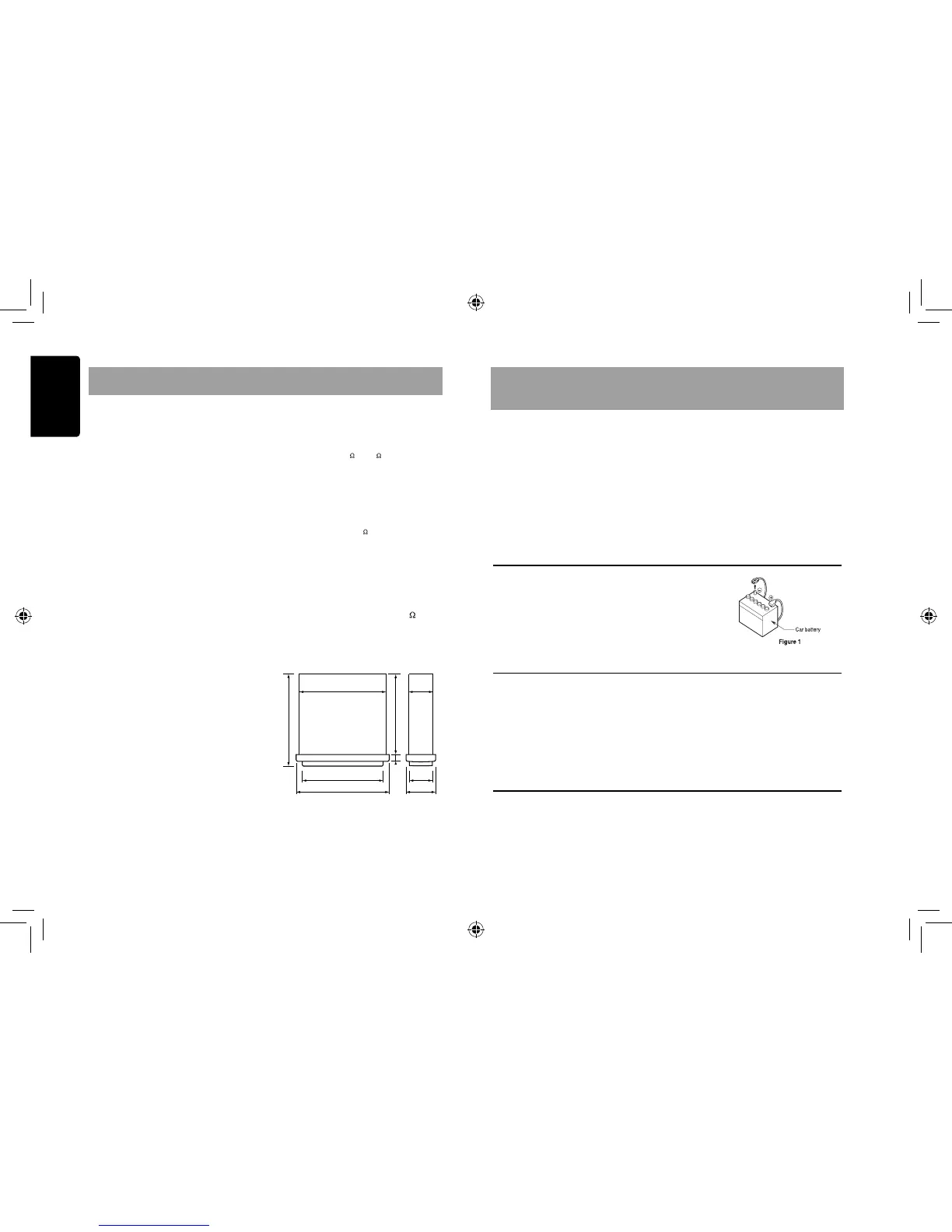

8. SPECIFICATIONS
AVRCP (AV Remote Control Prole)
Send/Receive Sensitivity: Class 2
Audio Amplier
Maximum power output:
180W (45W x 4)
Speaker impedance: 4
(4 to 8 allowable)
Input
Audio input sensitivity:
High: 320mV (at 1V output)
Mid: 650mV (at 1V output)
Low: 1.3V (at 1V output)
(input impedance 10 k
or greater)
Aux-in level: ≤2V
General
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Pre-Amp output voltage:
2.0V (CD play mode: 1kHz, 0dB, 10k
load)
Fuse: 15A
Dimensions of the Main Unit:
188mm Width × 58mm Height × 190mm Depth
Weight of the Main Unit: 1.35kg
Notes:
• Specications and design are subject
to change without notice for further
improvement.
170mm
188mm
190mm
9. INSTALLATION / WIRE
CONNECTION GUIDE
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery terminal before
starting. This is to prevent short circuits during
installation. (Figure 1)
2) Package Contents
3) General Cautions
CONTENTS
1) Before Starting ...................................................................... 11
2) Package Contents ................................................................. 11
3) General Cautions .................................................................. 11
4) Cautions on Installation ......................................................... 12
5) Installing the Source Unit ...................................................... 12
6) Removing the Source Unit .................................................... 13
7) Wiring and Connections ........................................................ 13
8) Connecting the accessories .................................................. 14
Source unit .......................................... 1
Front panel .......................................... 1
Trim ring ..............................................1
Mounting bracket ................................. 1
Special screw (M4×42) ........................ 1
Rubber cap .......................................... 1
Screws M5x6 mm ................................ 4
L-key .................................................... 2
Wire connector .................................... 1
DCP case ............................................1
Owner’s manual................................... 1
Warranty card ...................................... 1
Special screw (Front panel lock) ......... 1
1) Before Starting
1. Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or an
authorized Clarion service center.
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water to a
soft cloth and wipe off the dirt gently.
