CZ302E

• Connecting to the external amplier

External ampliers can be connected to the 4 channel RCA output connections.

Ensure that the connectors are not grounded or shorted to prevent damage to the

unit.

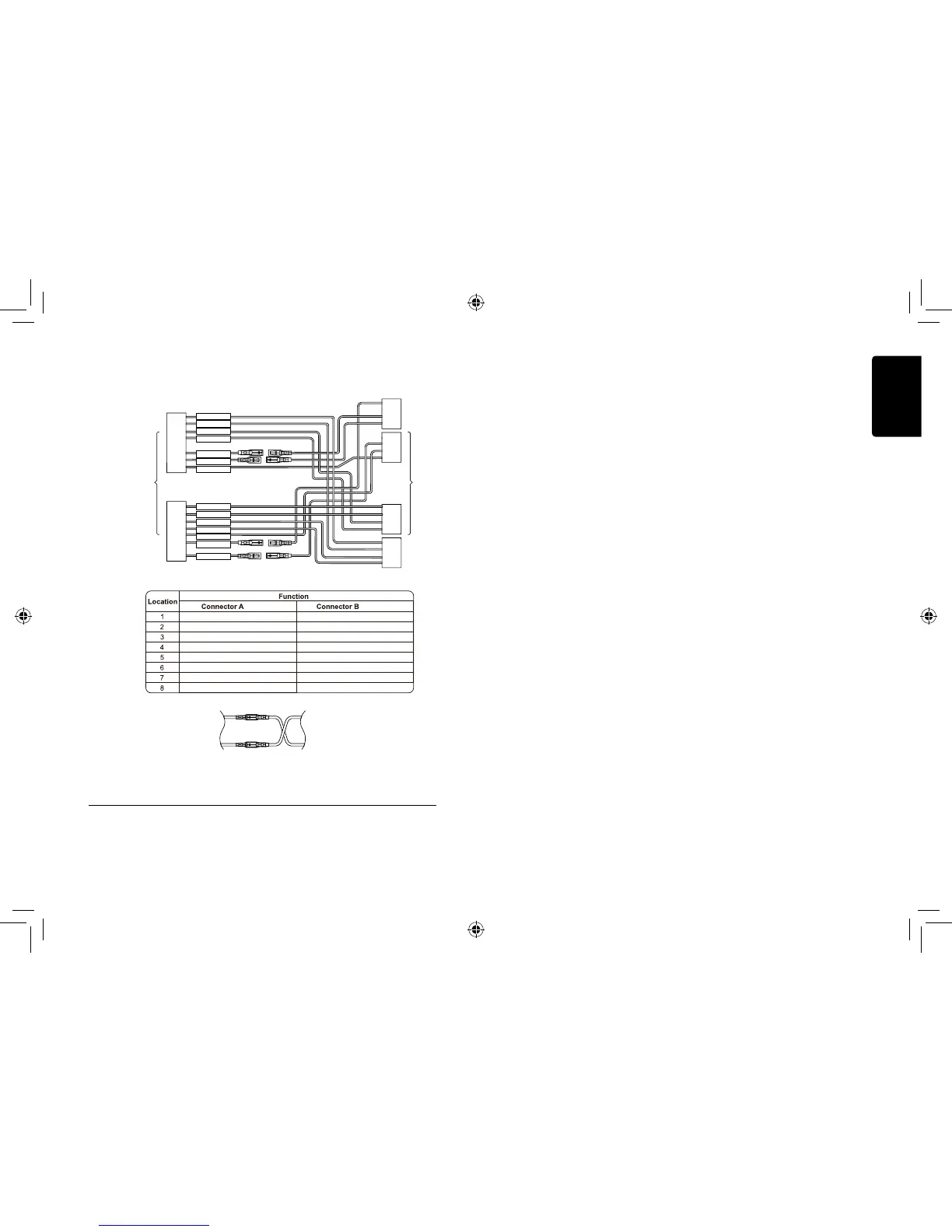

8) Connecting the accessories

YellowYellow

RedRed

For VW and Audi: Change wiring like above.

Battery +

Phone Mute

Front left +

Rear left +

ACC +

AMP Remote

Ground

Rear right (+) / Purple

Rear right (-) / Purple with black stripe

Rear left (+) / Green

Rear left (-) / Green with black stripe

Front right (+) / Grey

Front right (-) / Grey with black stripe

Front left (+) / White

Front left (-) / White with black stripe

Battery 12V(+) /

Phone Mute(+) / Brown

Yellow

Remote On / Blue with white stripe

ACC+ / Red

Ground / Black

Illumination / Orange with white stripe

Illumination

Rear right -

Front right -

Rear left -

Front left -

Front right +

Rear right +
