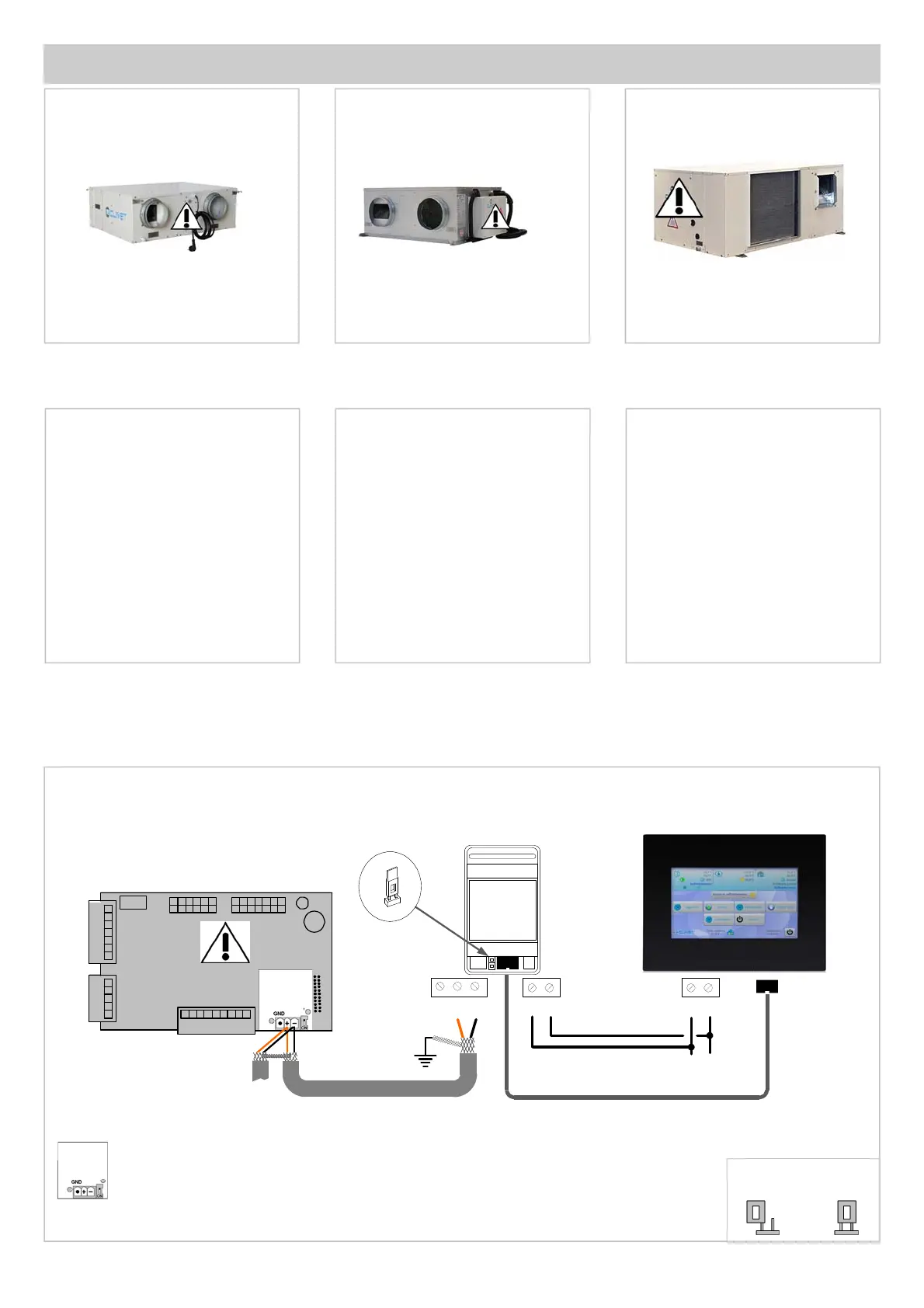

Page 37
RS 485
ETHERNET
GND
+
-
+
-
12Vdc
+
-
FRESH AIR UNIT
ELFOFRESH
2
CPAN-U 200-650 R410a
ELFOFRSH LARGE
CPAN-U 17-51 R410a
SP1X - RS485 serial port for remote communication - optional
Ethernet/485
Converter
TERMINATION
JUMPER
Terminazione
No
Si
ELFOFRESH
2
CPAN-U 70-120 R134a
36
38
Table of Contents
Table of Contents
3
Main Functions
5
Display
6
Switching on and off the System
6
Heating / Cooling / Automatic Mode
6
System
7
Start-Up and Switch-Off
7
Change Mode
8
Adjusting Date and Hour
9
Set Heat Pump Operation
10
Climate Settings
11
Change of Set Point, from Fixed to Compensated
12
Modification of 4 Points
12
Modification of Supply Set Point
12
Modify the Outdoor Temperature
13
Domestic Hot Water Operation
14
Domestic Hot Water Settings
14
Domestic Hot Water Programming
14
Elfofresh
16
Fresh Air
16
"Away from Home" Control
18
Zone Scheduling
19
Zone in Manual Mode
21
Alarms
23
Modification of the Program Name
24
System Setting
26
Instructions for the Installer
27
Elfocontrol
28
Led Function
29
Module RS485
29
Installation of the Serial Line
30
Shielded Cable
30
Bus RS485
30
System Diagrams
31
Unit for Producing Thermal and Cooling Energy
33
Fresh Air Unit
37
Ambient Terminals
38
System Accessories
41
Radiant Panels - Ambient Terminals
41
Thermostats
41
Modules
41
Module of Radiant Areas with HID-T2, HID-TI2 and HID-T3 Thermostats
42
Module of Radiant Areas with Uncased Modbus Thermostats
43
The Radiant Zone Module Controls the Heated Towel Rail Valve
44
Radiant Zone Module Configuration
45
System Component Configuration
45
Gaia Aria and ACQUA Version Ac/Gaia Maxi/Ground Medium
47
Addressing
47
System Component Addressing
48
Horus
48
Wsan-Xin
49
Elfoenergy/Elfofresh
50
Terminal, Area Modules with HID-T2, HID-T3 Thermostats Addressing
51
Terminal, Area Modules with HID-TI2 Thermostats Addressing
52
HID-TI4 and HID-UR Thermostats Addressing
53
Radiant Zone Module Addressing
54
Mixing Module Addressing
55
RS485 Module Addressing
55
BT2 External Temperature Reading Probe Addressing
55
Zone Module (Heated Towel) Addressing
56
I/O Module Addressing
57
Domestic Hot Water Module Addressing
60
System Configuration
61
Installation Composition
66
Autoconfiguration
67
System Component Status
69
Verification of the Component Communication
69
Zone Element Status
70
Status of the Mixers
70
Error: RS485 Network
73
Troubleshooting
73
Disposal
73
Parameters of the Components
74
Modbus TCP / IP
75
Plant Commands
75
Areas Commands
76
Domestic Hot Water Commands
76
Elfofresh Commands
76
Plant Stata
76
Area Stata
77
Elfofresh (EF) Stata
77
