Page 56
H
6
0
105
90
P
L
AP1
AP2
H
6
0
36
90
P
L
RS 485
AP1
AP2
+
-
GND
+
-
GND
230V
LN
4 5 6 7
9
+
-
GND
HID-TI2
2
GND
+
-
HID-T2
3
4
RS 485
NET +12V
GND
87

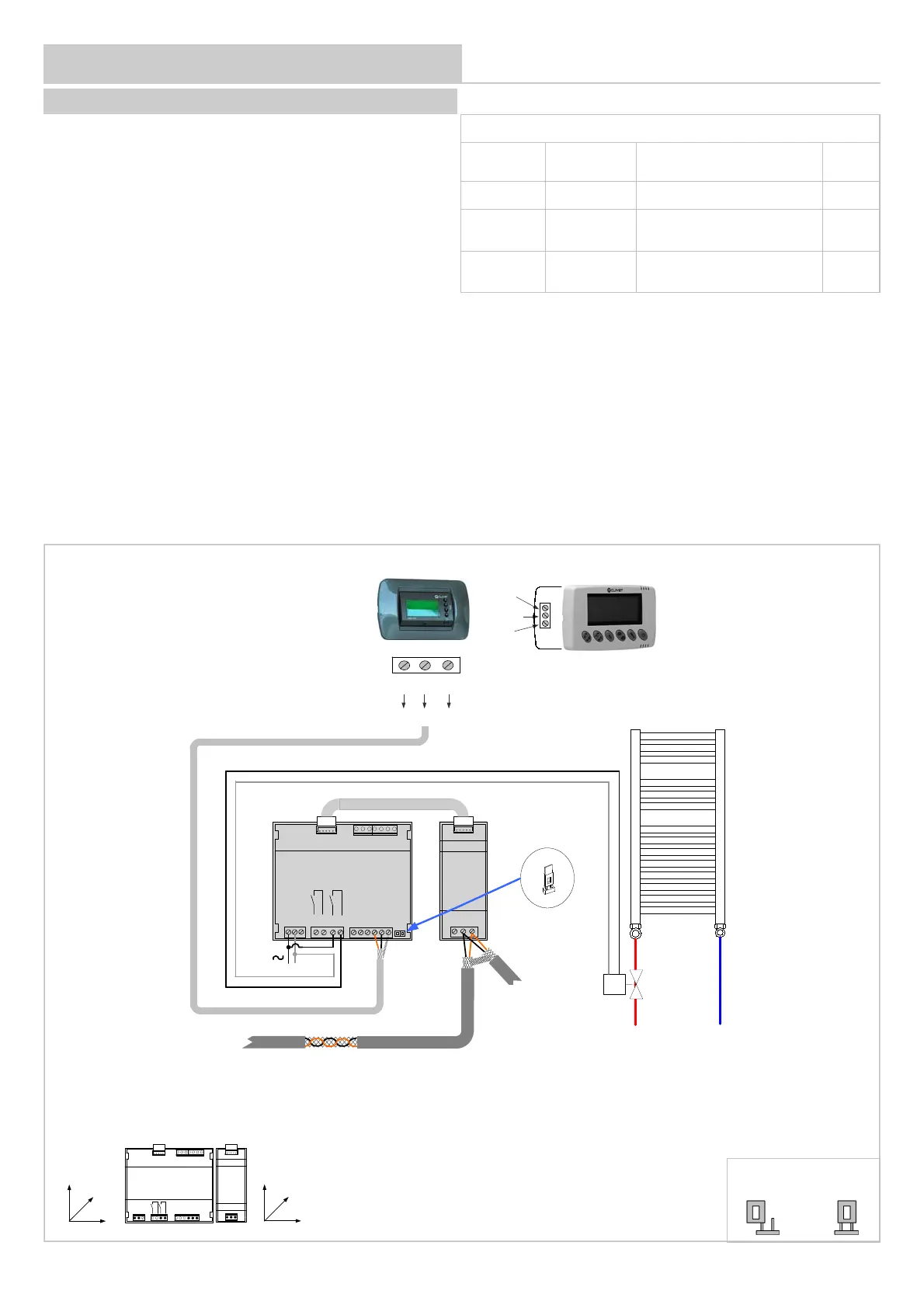

SYSTEM COMPONENT ADDRESSING
ZONE MODULE (HEATED TOWEL )
Parameters to be modified
Parameter
Mnemonic
Name
Description Value
33 Index Device address 17,18...
34 Baud Rate
Baud Rate 0=4800 1 :9600
2 :19200
1
35 Parity
Parity 0=NO / 1=Odd 2=Even
supervision serial
0
The module operation opens and closes the valve, according to the
temperature detected by the thermostat, in the cooling mode, the module
closes the valve.
The module can be used also to control 1 radiant circuit.
The area module must be powered at 230 Vac 50 Hz.
Assembly on DIN guide
Type of cable used:
2x0.35 mm
2
with screen on gnd
Maximum distance: 15 m
1 - switch off the module
2 - connect a HID-T2, HID-T3 or HID-TI2 thermostat
3 - switch on the module, the word OFF is displayed on the thermostat
4 - follow the instruction at page 48 or 49
5 - if several area modules are available:
the first will have P33 = 17
the second will have P33 = 18
etc.
For module RS485 refer to page 55
TERMINATION
JUMPER
Termination
No
Si
*
Type cable
2x0,35 mm² + shield, max distance 15m.
*
