Heat pump
1 supply water temperature
2 return water temperature
3 % use of the compressor
4 status
5 components found in the system:
Radiators, Fan coils, Radiant panels,
6 primary pump
DISPLAY
ELFOFresh
2
: (max. four units installed)
1 supply air temperature
2 return air temperature
3 status of the compressor: on/off
4 ELFOFresh
2
on / off
5 operation status:
heating / cooling / ventilation off
Production of domestic hot water:
1 upper storage temperature
2 lower storage temperature
3 solar water temperature
4 solar status (active/inactive)
System areas:
• schedule
Switching on and off the system
"Away" function
Return to the main display without saving modifications
(displayed in the subsequent menus)
Return to the previous display without saving modifications
(displayed in the subsequent menus)
Help
Alarms
System settings
Only qualified personnel is allowed to access
Save modifications, return to the previous display
(displayed in the subsequent menus)
1
2 4
1
2
3
4
5
1
2
3
1
2
3
4
5
6
4

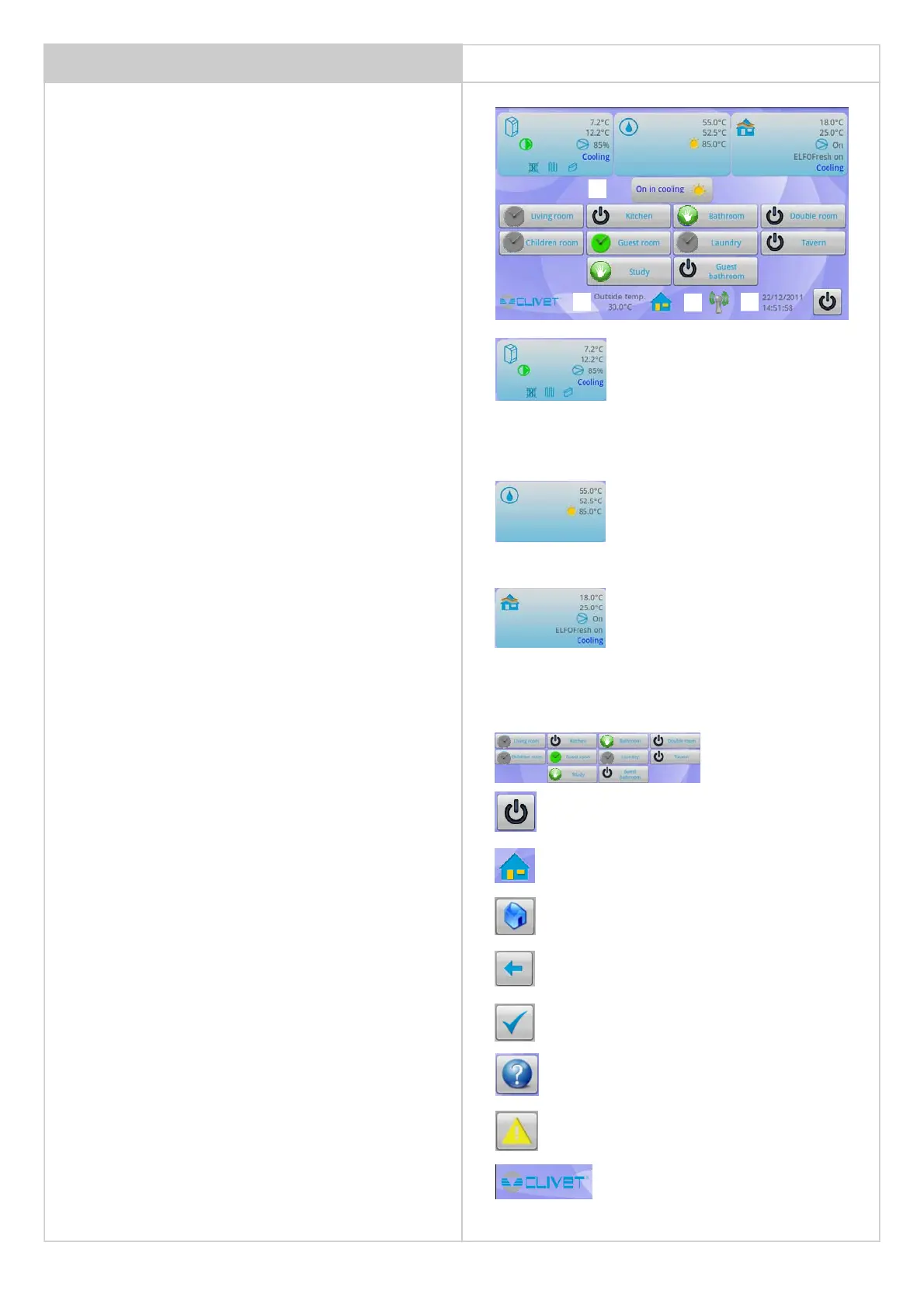

Information displayed:
1 status of the system:
heating / cooling / automatic / off
2 date/hour
3 Domotic control:
green = connected system
gray = system configuration (not connected);
parameter not enabled
4 Outdoor air temperature
3
