Page 52

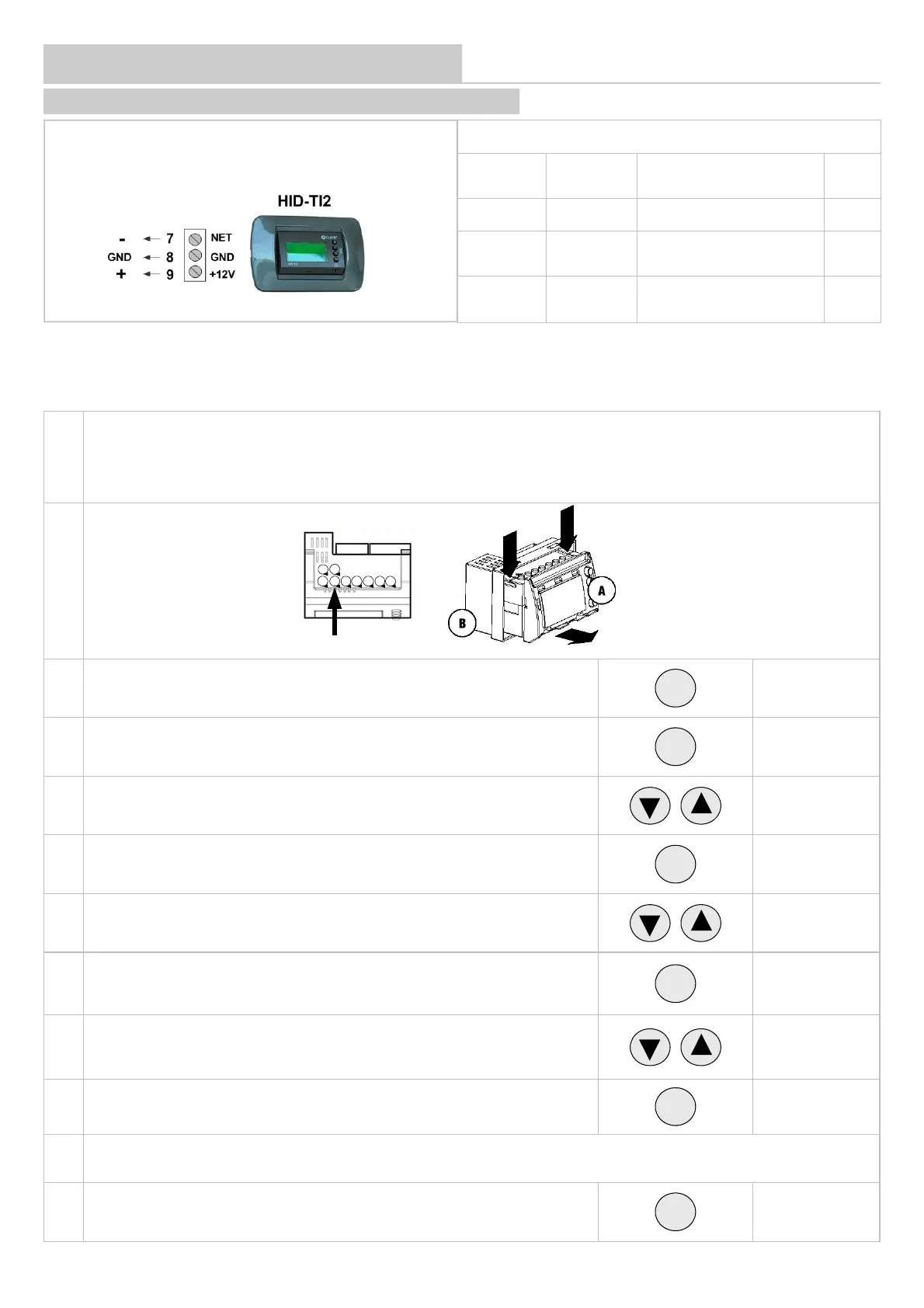

SYSTEM COMPONENT ADDRESSING
1
ACCESSING THE PARAMETERS AND INTRODUCING THE COIL
To remove timer thermostat body "A" from rear support "B", press in correspondence of the "vertical" arrows using the fingers
Introduce a 1.5 V AAA coil in the appropriate housing (NOT PROVIDED).
2 Press key 10 to display the letter P--, reintroduce it inside the housing until P00 appears
10
P00
3 Press
OK
4 Enter password 321
321
5 Confirm password
OK
6 Access parameter 33
P33
7 Access the value range
OK
XY
8 Edit value as indicated in the table
17
9 Confirm the value entered
OK
10 Repeat the sequence for the other parameters indicated in the table
11
Press until P - - appears flashing and wait until the word OFF is displayed
OK
OFF
TERMINALS, AREA MODULES WITH HID-TI2 THERMOSTATS
Parameters to be modified
Parameter
Mnemonic
Name
Description Value
33 Index Device address 17,18....
34 Baud Rate
Baud Rate 0=4800 1 :9600
2 :19200
1
35 Parity
Parity 0=NO / 1=Odd 2=Even
supervision serial
0
HID-TI2 Uncased temperature
11
10
9 8 7 6 5
A
R
First address the area modules combining them with the lowest addresses (example area module 17 - terminals 18 ............)
If the number of fancoils + area modules in the system is greater than 33, use addresses 60, 61, etc.
