D-Link DIR-890L User Manual

27D-Link DIR-890L User Manual
Section 3 - Conguration

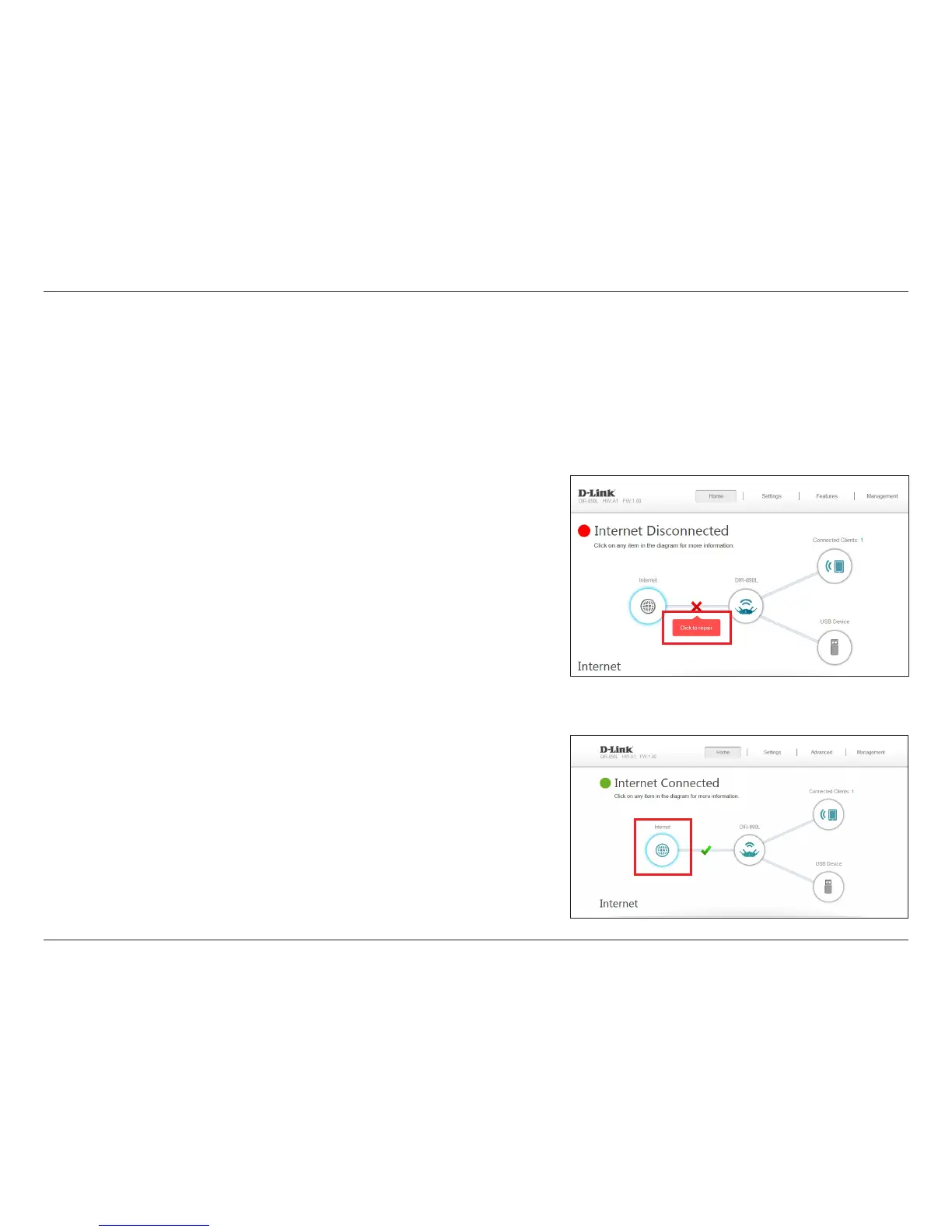

Home
The current status of the router is displayed on the Home page in the form of an interactive diagram. You can click on an icon
to display information about each part of the network at the bottom of the screen. The menu bar at the top of the page allows
you to easily navigate to other pages.
The Home page shows whether or not the router is currently connected to the
Internet. If disconnected, click on Click to repair to launch the Setup Wizard.
(Refer to "Setup Wizard" on page 14.)
To view details about your Internet connection, click on the Internet icon. Click
Release IP Address to disconnect from the Internet. If you do this and wish to
reconnect, click Renew.
To recongure the Internet settings, refer to "Internet" on page 31.
Internet

D-Link DIR-890L Specifications

General

VPN support	PPTP/L2TP/IPsec
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	3200 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Input current	5 A
Rack mounting	No
Frequency band	2.4 & 5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DHCP client	-
Antennas quantity	6
Security algorithms	WPA, WPA2, WPS
Product type	Tabletop router
Product color	Red
Certification	IC\\r CE\\r Wi-Fi Certified\\r FCC
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	387 mm
Width	247.3 mm
Height	119.5 mm
Weight	- g
