10D-Link ShareCenter DNS-345 User Manual
Section 1 - Product Overview

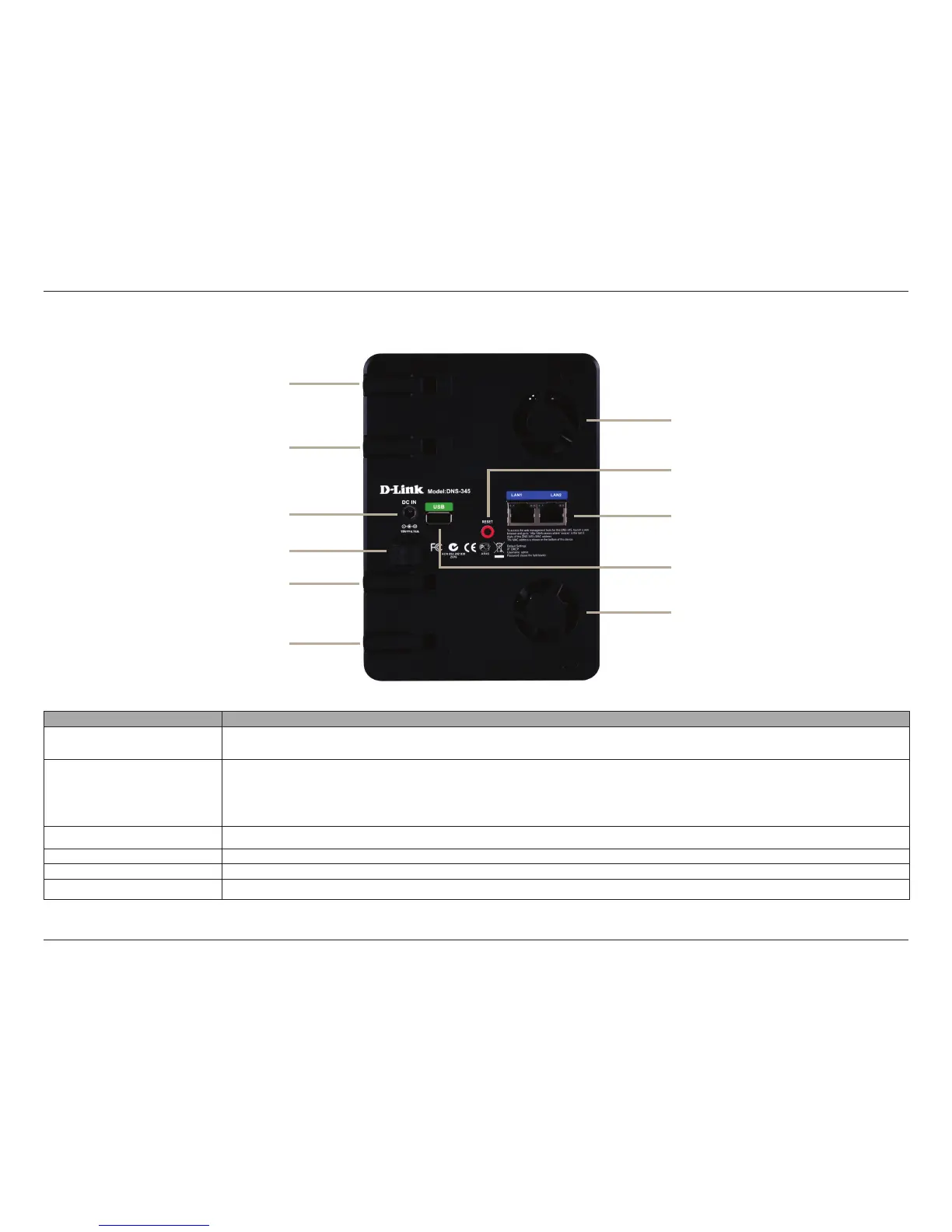

Rear Panel (Connections)
COMPONENT DESCRIPTION
Cooling Fan
The cooling fan is used to cool the hard drives and features speed control. When the unit is rst powered on, the fans
rotate at a low speed and later rotate at a high speed when the temperature rises above 49 °C.
Gigabit Ethernet Ports
Use the Gigabit Ethernet ports to connect the ShareCenter to the local network. Each port is equipped with 2 LEDs. The
LED on the right will illuminate solid green for a good connection and will blink during data transmission. If this LED
is oîš©, check the connection/cable to the device you are connecting to. The LED on the left will light solid for a Gigabit
connection and will remain oîš© when connected to a 10/100 device. Dual LANs support Port Bonding.
Power Receptacle
Connect the supplied power cord to the receptacle.
USB Port A single USB 2.0 (Type A) connector. The USB Host port is for Print Servers, USB memory disks, or USB UPS monitoring.
Reset Button Press and hold this button for more than 5 seconds to reset the unit to factory defaults.
HDD Eject Lever
Use each slot’s lever to eject the HDD drive .
Cooling Fan
Cooling Fan
Gigabit Ethernet Ports
HDD Eject Lever
HDD Eject Lever
HDD Eject Lever
Power Receptacle
Cord Hook
USB Port
Reset Button
HDD Eject Lever
