SiUS091133 Indoor Unit: FTXS09/12LVJU
Removal Procedure 166

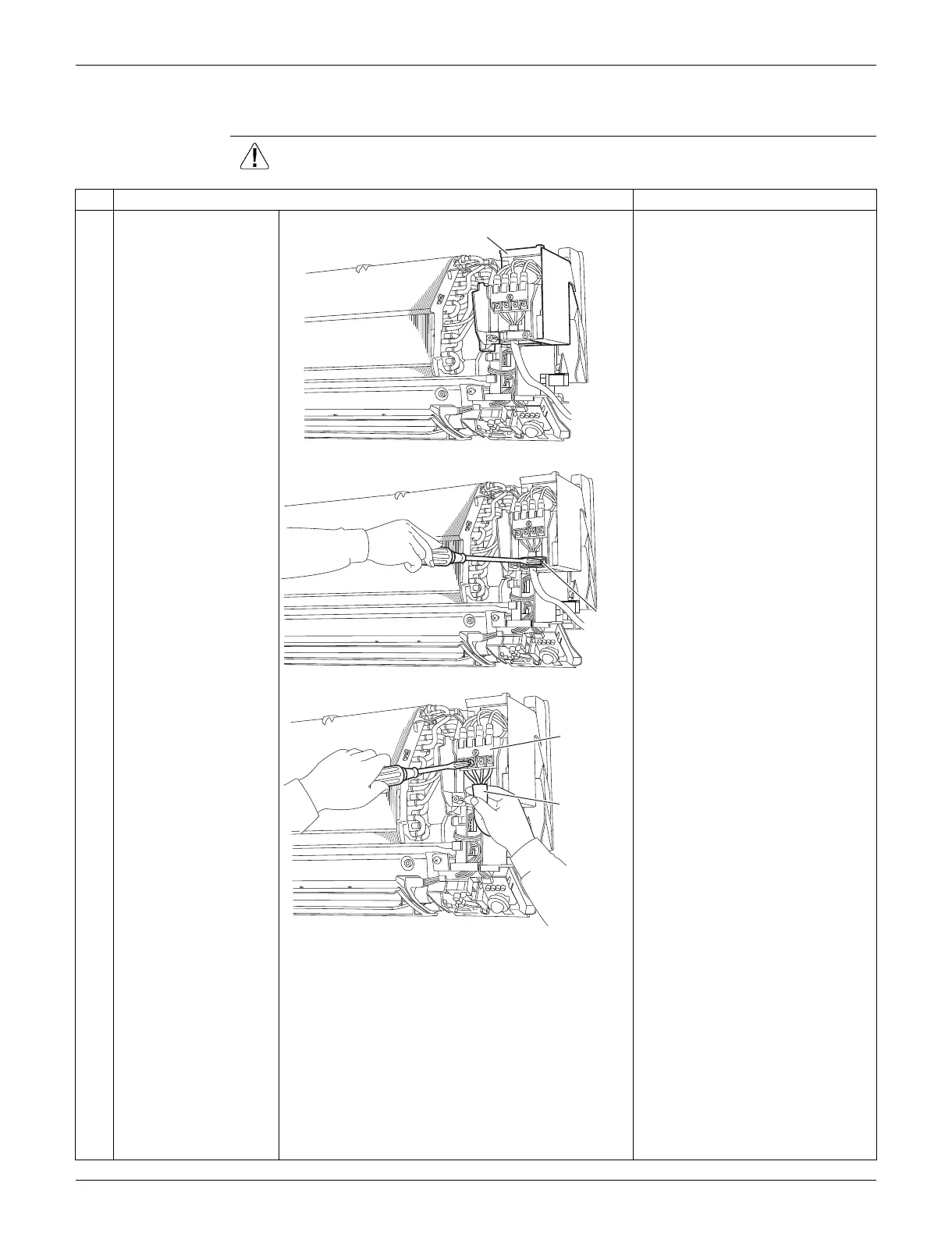

1.5 Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
The figure shows the
connections of the wire
harnesses.
Preparation
Remove the front grille
according to the “Removal of
Front Grille”.
2
Remove the screw of
the wire retainer.
3
Remove the 4 screws
of the terminal board
and disconnect the
connection wires.
(R16968)
Terminal
board
Connection
wire
To Next Page
