3. FDXS Series

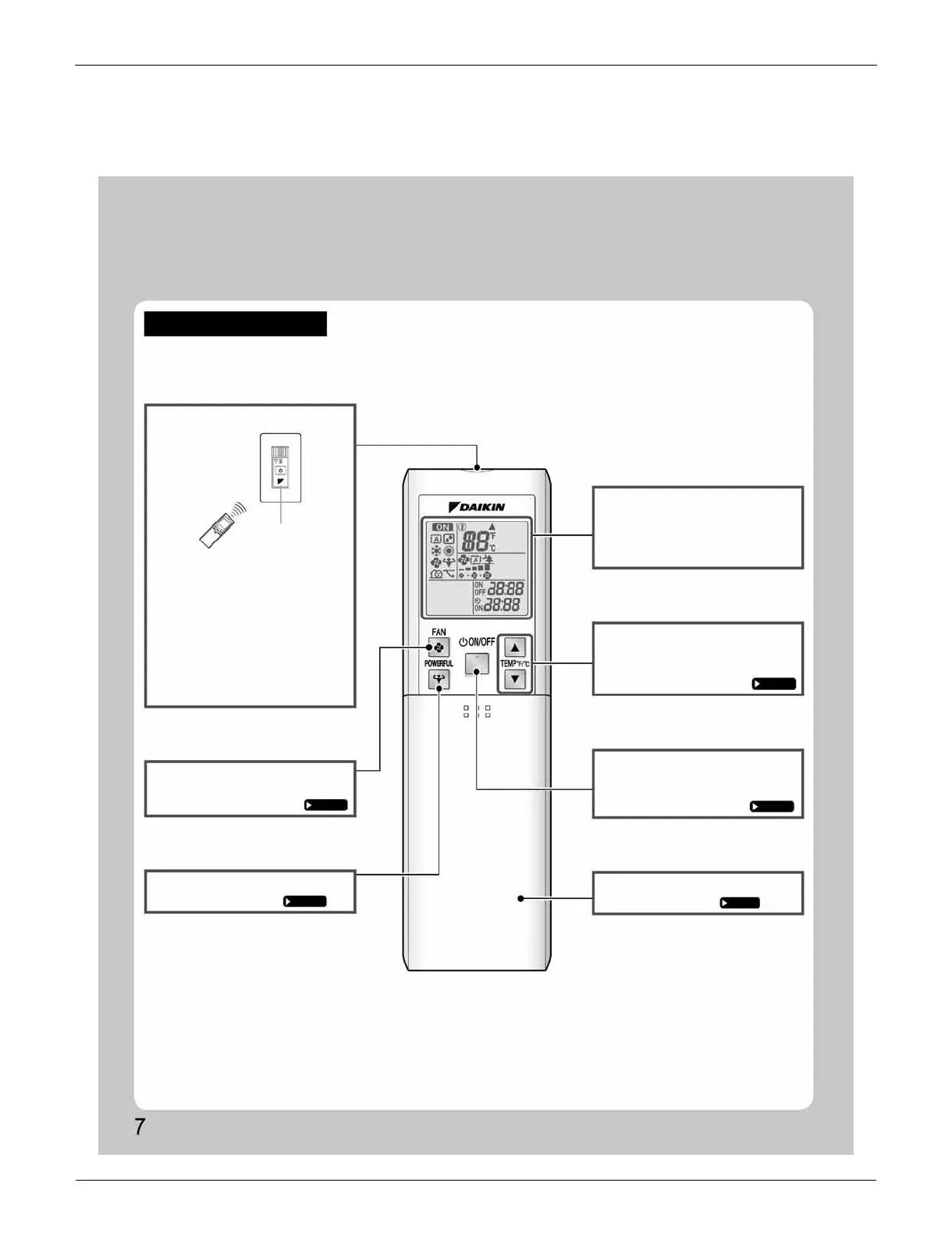

Names of Parts
Remote Controller
Signal transmitter
Receiver
FAN setting button
• Selects the airflow rate setting.
Page 13
POWERFUL button
• POWERFUL operation.
Page 14
Display (LCD)
• Changes the temperature setting.
Page 12
ON/OFF button
Page 11
Front cover
• Open the front cover.
Page 8
<ARC452A23>
• To use the remote controller, aim the
transmitter at the indoor unit. If there
is anything to block signals between
the unit and the remote controller,
such as a curtain, the unit will not
operate.
• Do not drop the remote controller.
Do not get it wet.
• The maximum distance for
communication is approximately 13ft
(4m).
TEMPERATURE
adjustment buttons
• Displays the current settings.
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
• Press this button once to start
operation.
Press once again to stop it.
